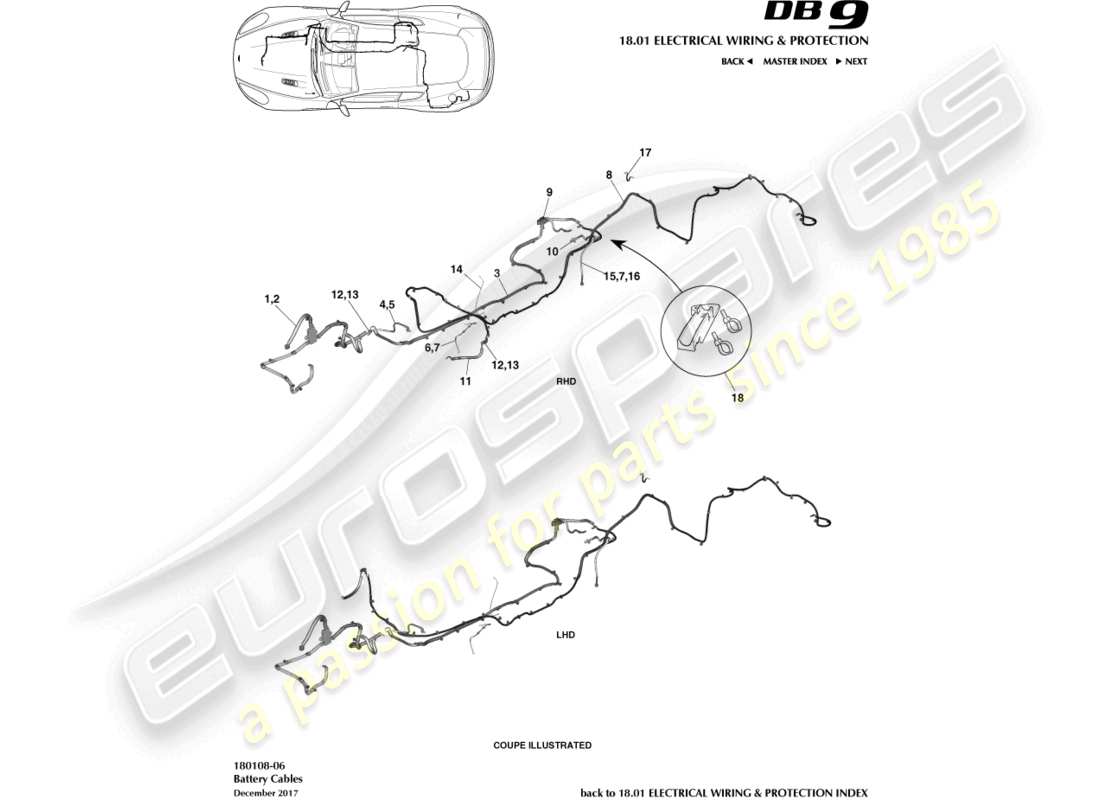

180108-06 - BATTERY CABLES

Aston Martin DB9 (2015) Battery Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: DG43-10C310-AB
                                HARNESS ASSY, TRANSFER STUD TO STARTER/ALTERNATOR/JUMP POINT
                                from £514.25
                                from £514.25
                                TRANS STUD TO STRTR Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 703203
                                SCREW, M6X20, FLANGE HEX
                                Mega Fuse to Body
                                from £0.47
                                from £0.47
                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                # 2
                                MPN: 703739
                                NUT, M8, HEX FLANGE
                                from £0.70
                                from £0.70
                                NUT-M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 3
                                MPN: CD33-14305-AB
                                HARNESS ASSY, BDS TO BULKHEAD STUD, DIRTY FEED
                                from £843.46
                                from £843.46
                                HARNESS ASSEMBLY, BDS TO BULKHEAD STUD, DIRTY FEED Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 6G43-14A280-AA
                                EARTH STRAP, ENGINE
                                from £15.02
                                from £15.02
                                ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
                                ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
                                # 5
                                MPN: 703200
                                SCREW, M10X25, HEX FLANGE HEAD
                                from £0.47
                                from £0.47
                                SCREW M10X25 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 6
                                MPN: 4G43-14A280-DD
                                EARTH STRAP, BONNET
                                from £12.18
                                from £12.18
                                EARTH STRAP, BONNET Genuine Aston Martin - New (to order)
                                # 7
                                MPN: 702840
                                NUT & WASHER, M6
                                from £0.47
                                from £0.47
                                NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
                                # 8
                                MPN: CG43-14B278-MB
                                HARNESS ASSY, BDS TO BULKHEAD STD/ REAR FUSE BOX, RHD
                                Coupe
                                from £111.29
                                from £111.29
                                HARNESS ASSEMBLY, BDS TO BULKHEAD STD/ REAR FUSE BOX, RHD Genuine Aston Martin - New (to order)
                                # 8
                                MPN: CG43-14B278-FB
                                HARNESS ASSY, BDS TO BULKHEAD STD/ REAR FUSE BOX, RHD
                                Volante
                                from £161.30
                                from £161.30
                                HARNESS ASSEMBLY, BDS TO BULKHEAD STD/ REAR FUSE BOX, RHD Genuine Aston Martin - New (to order)
                                # 8
                                MPN: CG43-14B278-LB
                                HARNESS ASSY, BDS TO BULKHEAD STD/ REAR FUSE BOX, LHD
                                Coupe
                                from £164.38
                                from £164.38
                                HARNESS ASSEMBLY, BDS TO BULKHEAD STD/ REAR FUSE BOX, LHD Genuine Aston Martin - New (to order)
                                # 8
                                MPN: CG43-14B278-EB
                                HARNESS ASSY, BDS TO BULKHEAD STD/ REAR FUSE BOX, LHD
                                Volante
                                from £164.38
                                from £164.38
                                HARNESS ASSEMBLY, BDS TO BULKHEAD STD/ REAR FUSE BOX, LHD Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 4G43-14300-AD
                                CABLE ASSY, BATTERY TO BDS
                                from £134.68
                                from £134.68
                                CABLE ASSEMBLY BATT BDS Genuine Aston Martin - New (to order)
                                CABLE ASSEMBLY BATT BDS Genuine Aston Martin - Used In stock
                                # 10
                                MPN: 4G43-14301-AD
                                CABLE ASSY, BATTERY TO GOUND
                                from £21.58
                                from £21.58
                                CABLE ASSY-BATT GND Genuine Aston Martin - New (to order)
                                CABLE ASSY-BATT GND Genuine Aston Martin - Used In stock
                                # 11
                                MPN: 4G43-14B278-DD
                                Cable Assy, Bulkhead Stud to Engine Bay Fuse Box
                                from £18.79
                                from £18.79
                                CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - New (to order)
                                CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - Used In stock
                                # 12
                                MPN: 9G43-10A752-AA
                                TERMINAL POST ASSY
                                from £5.69
                                from £5.69
                                TERMINAL POST ASSEMBLY Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 9G43-E820201-AA
                                NUT, M8, BRASS HEX SPECIAL
                                from £1.63
                                from £1.63
                                NUT M8 BINX Genuine Aston Martin - New (to order)
                                # 14
                                MPN: AG43-13N850-AA
                                LEAD, RFI LINK
                                from £9.65
                                from £9.65
                                RFI LINK Genuine Aston Martin - New (to order)
                                # 15
                                MPN: DD33-14A280-AB
                                EARTH BRAID, TRANSMISSION TO BODY
                                from £50.64
                                from £50.64
                                EARTH BRAID, TRANSMISSION TO BODY Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 7G33-108256-AA
                                SCREW, M8X21, HEX HEAD
                                from £0.49
                                from £0.49
                                M8 X 21 HEX PLA PIL Genuine Aston Martin - New (to order)
                                REAR UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                # 17
                                MPN: 4G43-14A280-FC
                                EARTH BRAID, ANTENNA MODULE
                                from £13.85
                                from £13.85
                                EARTH BRAID ANTENNA Genuine Aston Martin - New (to order)
                                EARTH BRAID ANTENNA Genuine Aston Martin - Used In stock
                                # 18
                                MPN: GD33-37-10114
                                ROUTING BLOCK KIT
                                VIN A14994 to A17480 Coupe, VIN B14995 to B17022 Volante
                                from £9.11
                                from £9.11
                                ROUTING BLOCK KIT Genuine Aston Martin - New (to order)
