aston martin dbs (2007) underbody parts diagram

010101-B8 - underbody

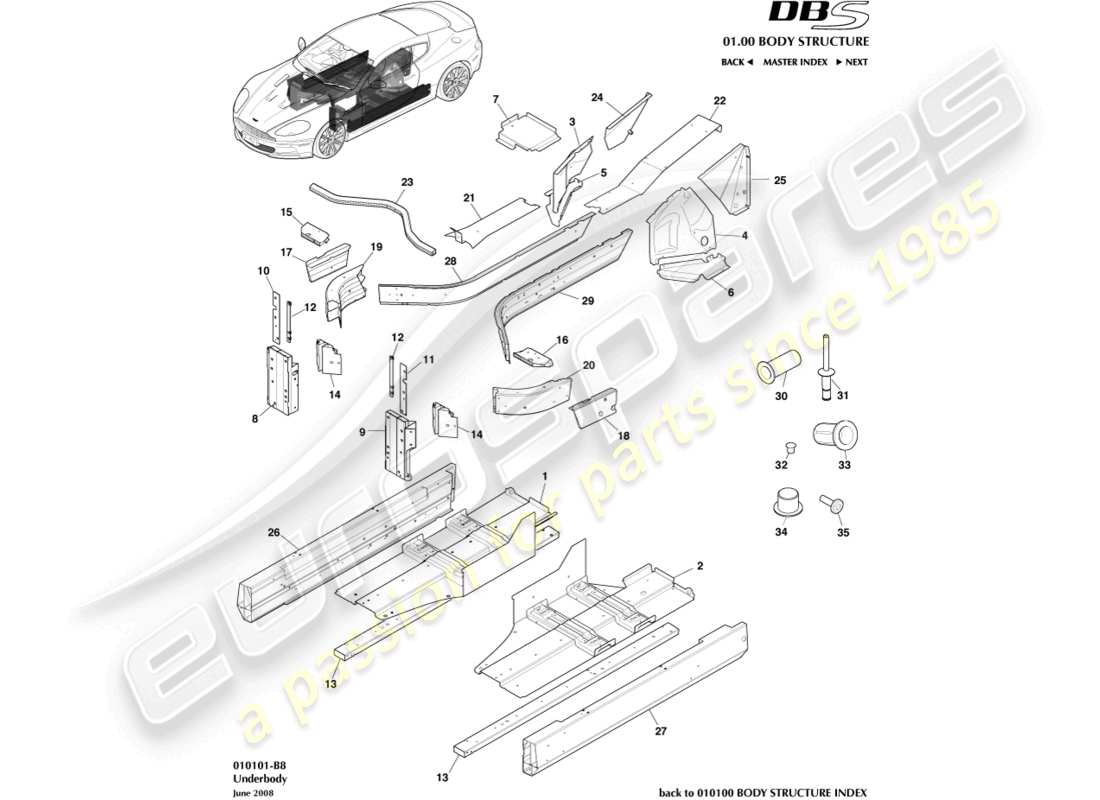

Aston Martin DBS (2007) Underbody Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 4G43-16-10879
PANEL ASSY, FLOOR, RH
VIN stamp required, Structural Cat. A only
from £685.79
from £685.79
PANEL ASSEMBLY, FLOOR, RH Genuine Aston Martin - New (to order)
# 2
MPN: 4G43-16-10880
PANEL ASSY, FLOOR, LH
Structural Cat. A only
from £760.29
from £760.29
PANEL ASSEMBLY, FLOOR, LH Genuine Aston Martin - New (to order)
# 3
MPN: 8G43-13058-AB
TUNNEL, REAR SIDE, RH
Structural Cat. A only
TUNNEL, REAR SIDE, RH Genuine Aston Martin - New (to order)
# 4
MPN: 9G43-13059-AB
TUNNEL, REAR SIDE, LH
Structural Cat. A only
from £92.02
from £92.02
TUNNEL, REAR SIDE, LH Genuine Aston Martin - New (to order)
# 5
MPN: 8G43-67340-AA
PANEL REAR SEAT HEEL BOARD LOWER RH
Structural Cat. A only
from £41.19
from £41.19
PANEL REAR SEAT HEEL BOARD LOWER RH Genuine Aston Martin - New (to order)
# 6
MPN: 8G43-67341-GA
PANEL REAR SEAT HEEL BOARD LOWER LH
Structural Cat. A only
from £36.23
from £36.23
PANEL REAR SEAT HEEL BOARD LOWER LH Genuine Aston Martin - New (to order)
# 7
MPN: 8G43-67342-AA
FINISHER, REAR SEAT HEEL BOARD LOWER, RH
Structural Cat. A only
from £34.75
from £34.75
FINISHER, REAR SEAT HEEL BOARD LOWER, RH Genuine Aston Martin - New (to order)
# 8
MPN: 4G43-20-10876
BRACKET, RH
Structural Cat. A only
from £287.98
from £287.98
FT S/FRM UPRT RH-DB9 Genuine Aston Martin - New (to order)
# 9
MPN: 4G43-20-10877
BRACKET, LH
Structural Cat. A only
from £287.98
from £287.98
FT S/FRM UPRT LH-DB9 Genuine Aston Martin - New (to order)
# 10
MPN: 8G43-434K10-AA
NUTPLATE, FRONT END MOUNT OUTER, RH
Structural Cat. A only
from £54.52
from £54.52
NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
# 11
MPN: 8G43-434K11-AA
NUTPLATE, FRONT END MOUNT OUTER, LH
Structural Cat. A only
from £13.22
from £13.22
NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
# 12
MPN: 8G43-390725-AA
NUTPLATE, FRONT END MOUNT INNER
Structural Cat. A only
from £20.01
from £20.01
NUT PLATE FRONT END MNT Genuine Aston Martin - New (to order)
# 13
MPN: 8G43-10120-GB
MEMBER, FLOOR, SIDE FRONT
Structural Cat. A only
MEMBER, FLOOR, SIDE FRONT Genuine Aston Martin - New (to order)
# 14
MPN: 6G33-F001K28-AB
BRACKET, TUNNEL UPPER INNER
Structural Cat. A only
BRACKET, TUNNEL UPPER INNER Genuine Aston Martin - New (to order)
# 15
MPN: 6G33-10094-AC
MEMBER, REINFORCE FRONT SIDE, RH
Structural Cat. A only
MEMBER, REINFORCE FRONT SIDE, RH Genuine Aston Martin - New (to order)
# 16
MPN: 6G33-10095-AC
MEMBER, REINFORCE FRONT SIDE, LH
Structural Cat. A only
from £38.06
from £38.06
MEMBER, REINFORCE FRONT SIDE, LH Genuine Aston Martin - New (to order)
# 17
MPN: 6G33-100A94-AC
MEMBER, LOWER REINFORCE FRONT SIDE, RH
Structural Cat. A only
MEMBER, LOWER REINFORCE FRONT SIDE, RH Genuine Aston Martin - New (to order)
# 18
MPN: 6G33-100A95-AC
MEMBER, LOWER REINFORCE FRONT SIDE, LH
Structural Cat. A only
MEMBER, LOWER REINFORCE FRONT SIDE, LH Genuine Aston Martin - New (to order)
# 19
MPN: 6G33-10276-AF
MEMBER, FRONT SIDE, RH
Structural Cat. A only
from £124.01
from £124.01
MEMBER, FRONT SIDE, RH Genuine Aston Martin - New (to order)
# 20
MPN: 6G33-10277-AG
MEMBER, FRONT SIDE, LH
Structural Cat. A only
from £124.01
from £124.01
MEMBER, FRONT SIDE, LH Genuine Aston Martin - New (to order)
# 21
MPN: 7G33-113C18-AC
PANEL, TUNNEL TOP FRONT
Structural Cat. A only
PANEL, TUNNEL TOP FRONT Genuine Aston Martin - New (to order)
# 22
MPN: 8G43-11160-AD
PANEL, TUNNEL TOP
Structural Cat. A only
PANEL, TUNNEL TOP Genuine Aston Martin - New (to order)
# 23
MPN: 6G33-F02599-AB
MEMBER, BODY FRONT CROSS
Structural Cat. A only
MEMBER, BODY FRONT CROSS Genuine Aston Martin - New (to order)
# 24
MPN: 8G43-58111K36-GA
TUNNEL, REINFORCE REAR, RH
Structural Cat. A only
TUNNEL, REINFORCE REAR, RH Genuine Aston Martin - New (to order)
# 25
MPN: 8G43-58111K37-GA
TUNNEL, REINFORCE REAR, LH
Structural Cat. A only
TUNNEL, REINFORCE REAR, LH Genuine Aston Martin - New (to order)
# 26
MPN: AG43-C1898-AA
SILL ASSY, OUTER, RH
COUPE. Up to 11MY, Structural Cat. A only
from £759.05
from £759.05
SILL ASSEMBLY, OUTER, RH Genuine Aston Martin - New (to order)
# 26
MPN: BG43-C1898-AA
SILL ASSY, OUTER, RH
COUPE. From 11MY, Structural Cat. A only
SILL ASSEMBLY, OUTER, RH Genuine Aston Martin - New (to order)
# 26
MPN: AG43-L1898-AA
SILL ASSY, OUTER, RH
VOLANTE. Up to 11MY, Structural Cat. A only
SILL ASSEMBLY, OUTER, RH Genuine Aston Martin - New (to order)
# 26
MPN: BG43-L1898-AA
SILL ASSY, OUTER, RH
VOLANTE. From 11MY, Structural Cat. A only
SILL ASSEMBLY, OUTER, RH Genuine Aston Martin - New (to order)
# 27
MPN: AG43-C1899-AA
SILL ASSY, OUTER, LH
COUPE. Up to 11MY, Structural Cat. A only
SILL ASSEMBLY, OUTER, LH Genuine Aston Martin - New (to order)
# 27
MPN: BG43-C1899-AA
SILL ASSY, OUTER, LH
COUPE. From 11MY, Structural Cat. A only
from £540.06
from £540.06
SILL ASSEMBLY, OUTER, RH Genuine Aston Martin - New (to order)
# 27
MPN: AG43-L1899-AA
SILL ASSY, OUTER, LH
VOLANTE. Up to 11MY, Structural Cat. A only
SILL ASSEMBLY, OUTER, LH Genuine Aston Martin - New (to order)
# 27
MPN: BG43-L1899-AA
SILL ASSY, OUTER, LH
VOLANTE. From 11MY, Structural Cat. A only
from £972.71
from £972.71
SILL ASSEMBLY, OUTER, LH Genuine Aston Martin - New (to order)
# 28
MPN: 9G33-10772-AC
EXTRUSION, TUNNEL, RH
Structural Cat. A only
from £204.05
from £204.05
EXTRUSION, TUNNEL, RH Genuine Aston Martin - New (to order)
# 29
MPN: 9G33-10773-AC
EXTRUSION, TUNNEL, LH
Structural Cat. A only
EXTRUSION, TUNNEL, LH Genuine Aston Martin - New (to order)
# 30
MPN: 6G33-46768-AA
RIVNUT, M6 FLAT HEAD
Structural Cat. A only
from £1.07
from £1.07
RIVNUT M6/M10L Genuine Aston Martin - New In stock
# 31
MPN: 6G33-68676-AC
RIVET, STRUCTURAL 6.5 14 BLIND
Structural Cat. A only
from £0.70
from £0.70
STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
# 32
MPN: 6G33-68885-AB
RIVET, SELF PIERCING, 5 X 6MM
Structural Cat. A only
from £0.47
from £0.47
SPR 5.0X6.0MM Genuine Aston Martin - New (to order)
# 33
MPN: 6G33-33800-AA
RIVNUT, 7/16UNF HEX FLANGE
Structural Cat. A only
from £0.92
from £0.92
RIVNUT, 7/16UNF HEX FLANGE Genuine Aston Martin - New (to order)
# 34
MPN: 4G43-N800631-AA
BUNG, 11MM
Structural Cat. A only
from £0.54
from £0.54
BUNG-11 MM Genuine Aston Martin - New (to order)
# 35
MPN: 703074
RIVET, 4.65 X 13. 8 BLIND AL DOME HEAD
Structural Cat. A only
RIVET, 4.65X13.8 Genuine Aston Martin - New (to order)
