aston martin dbs (2008) rear lamps parts diagram

170301-D2 - Rear Lamps

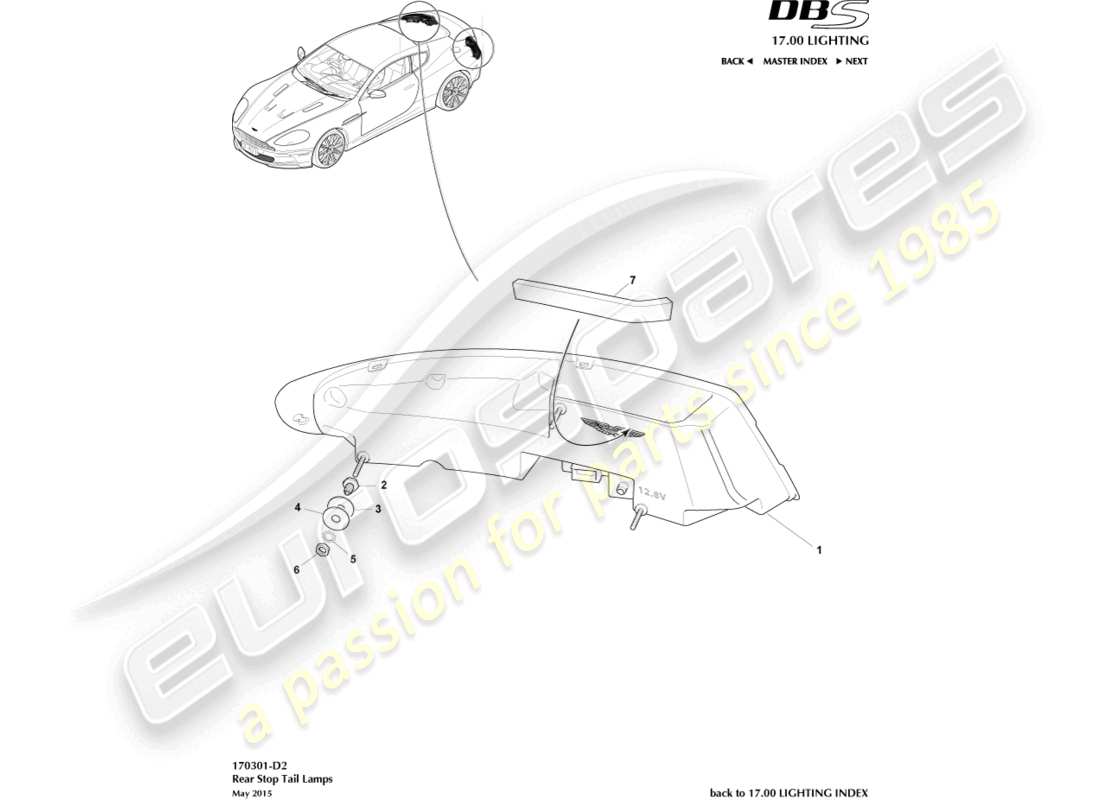

Aston Martin DBS (2008) Rear Lamps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 8D33-37-10141
            LAMP ASSY, REAR LH
            Clear
            from £782.14
            from £782.14
            LEFT REAR LIGHT (le Mans clear) Genuine Aston Martin - New (to order)
            # 1
            MPN: CD33-37-10143
            LAMP ASSY, REAR LH
            Smoked, Carbon Edition, DBS Ultimate
            from £973.67
            from £973.67
            LAMP ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
            # 1
            MPN: 8D33-37-10142
            LAMP ASSY, REAR RH
            Clear
            from £782.14
            from £782.14
            REAR LAMP ASSEMBLY RH-REWORK (Le Mans clear) Genuine Aston Martin - New (to order)
            # 1
            MPN: CD33-37-10144
            LAMP ASSY, REAR RH
            Smoked, Carbon Edition, DBS Ultimate
            from £954.52
            from £954.52
            LAMP ASSEMBLY, REAR RH Genuine Aston Martin - New (to order)
            # 2
            MPN: 8G43-15A303-AA
            ADJUSTER STUD
            Up To 10.75MY, For 3 Stud Lamp
            from £2.49
            from £2.49
            ADJUSTER, LAMP SLEEVE Genuine Aston Martin - New (to order)
            # 2
            MPN: AG33-15A303-AA
            ADJUSTER STUD
            Up to 10.75MY, Service Only, to fit 2 Stud in place of 3 Stud Lamp
            from £15.27
            from £15.27
            LAMP ADJUSTER Genuine Aston Martin - New (to order)
            # 2
            MPN: AD43-15A303-AA
            ADJUSTER STUD
            From 10.75MY, For 2 Stud Lamp
            ADJUSTER, LAMP STUD M6 Genuine Aston Martin - New (to order)
            # 3
            MPN: 4G43-13520-AA
            FIXING SEAL
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 4
            MPN: 703129
            WASHER, M12
            from £0.77
            from £0.77
            WASHER M12 LARGE OD Genuine Aston Martin - New (to order)
            # 5
            MPN: 703130
            WASHER, SHAKEPROOF
            from £0.47
            from £0.47
            WASHER SHAKEPROOF EX Genuine Aston Martin - New (to order)
            # 6
            MPN: 701646
            NUT, M12 HEX THIN
            from £0.47
            from £0.47
            NUT, M12 HEX THIN Genuine Aston Martin - New (to order)
            # 7
            MPN: 4G43-13407-AA
            SEAL, LAMP REAR
            from £4.18
            from £4.18
            SEAL, REAR LAMP Genuine Aston Martin - New (to order)
