aston martin dbs (2010) floor trim, lhd parts diagram

010501-B2 - Floor Trim, LHD

Aston Martin DBS (2010) Floor Trim, LHD Parts Diagram

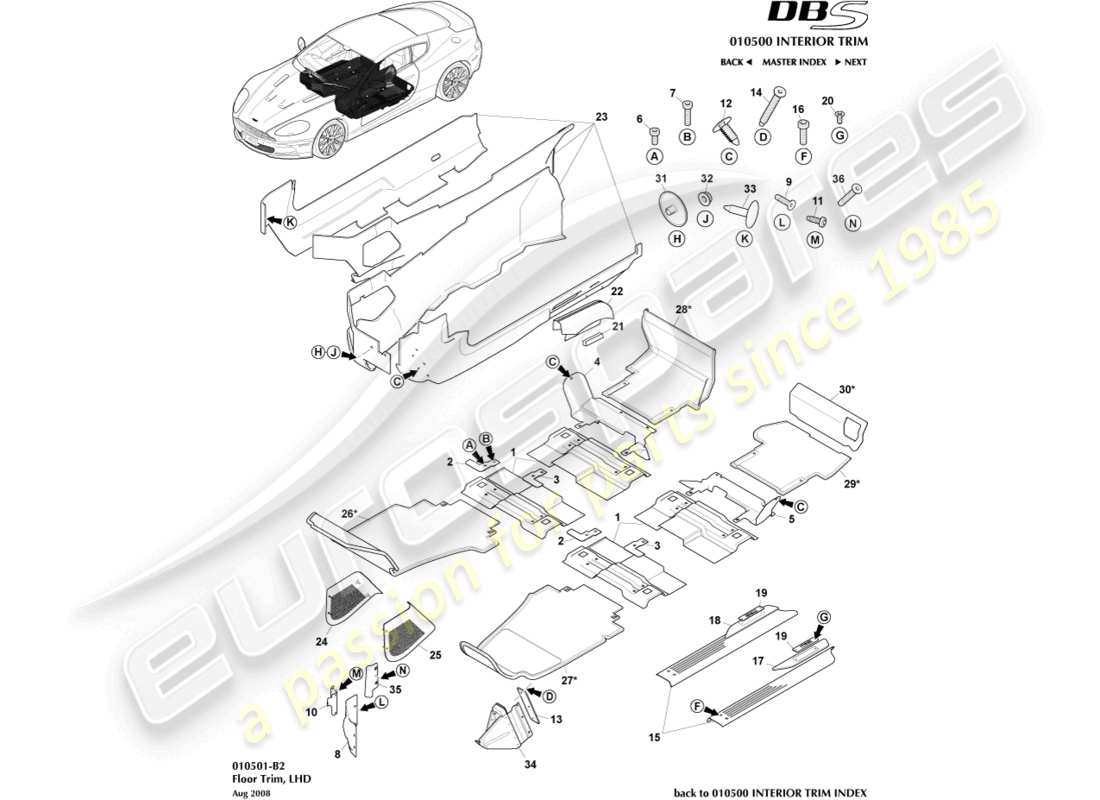

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 8D33-M1H403-AB
                                                  FLOOR PAN COVER
                                                  from £8.03
                                                  from £8.03
                                                  FLOOR PAN COVER Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 6G33-666A40-AA
                                                  FINISHER, CARPET RHS
                                                  FINISHER, CARPET RHS Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 6G33-666A41-AA
                                                  FINISHER, CARPET LHS
                                                  FINISHER, CARPET LHS Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 4G43-100A90-AA
                                                  REAR SUPPORT PANEL RH
                                                  from £18.65
                                                  from £18.65
                                                  RH REAR FLR SPRT PANEL Genuine Aston Martin - New (to order)
                                                  RH REAR FLR SPRT PANEL Genuine Aston Martin - Used In stock
                                                  # 5
                                                  MPN: 8G43-100A91-AB
                                                  REAR SUPPORT PANEL LH
                                                  from £46.70
                                                  from £46.70
                                                  REAR SUPPORT PANEL LH Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 6G33-68D11-BA
                                                  SCREW, M5 X 20 CAP HEAD
                                                  from £0.79
                                                  from £0.79
                                                  CAP SCREW - M5X20 Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 6G33-68D11-AA
                                                  SCREW, M5 X 12 CAP HEAD
                                                  from £0.47
                                                  from £0.47
                                                  CAP SCREW - M5X12 Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 4G43-18449-BD
                                                  SCUFF PLATE, ACCELERATOR FINISHER
                                                  from £46.76
                                                  from £46.76
                                                  SCF PLT ACCEL FIN Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 4G43-3L657-AA
                                                  SCREW, M5 X 20
                                                  from £0.47
                                                  from £0.47
                                                  SCW M5X20 COUNTERSUNK HD SS Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 4G43-2B099-AC
                                                  BRACKET, REINF, FOOT SCUFF PLATE ASSEMBLY, LH
                                                  from £21.51
                                                  from £21.51
                                                  FT SCF PLT REINFORCEMENT BRK Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 701554
                                                  PAD ASSEMBLY, FOOTREST
                                                  PAD ASSEMBLY, FOOTREST Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 6G33-E801202-AA
                                                  SCREW, M5 X 12 PAN HEAD
                                                  from £0.47
                                                  from £0.47
                                                  M5X45 COUNTERSUNK ST SCREW Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 4G43-12020-BA
                                                  PAD ASSEMBLY, FOOTREST
                                                  from £1,580.29
                                                  from £1,580.29
                                                  PAD ASSEMBLY FRONT ST FT Genuine Aston Martin - New (to order)
                                                  # 14
                                                  MPN: 6G33-E801202-AA
                                                  SCREW, M5 X 45 COUNTERSUNK HEAD
                                                  from £0.47
                                                  from £0.47
                                                  M5X45 COUNTERSUNK ST SCREW Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: AG43-13242-AC
                                                  SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED
                                                  Polished Alloy
                                                  from £233.20
                                                  from £233.20
                                                  SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 8D33-13242-AD
                                                  SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED
                                                  Black
                                                  SCUFF PLATE, FRONT SILL, KIT. LH AND RH SUPPLIED Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 6G33-SS106209-AA
                                                  SCREW, M6 X 20 SOCKET LOW HEAD
                                                  stainless steel
                                                  SCREW, M6 X 20 SOCKET LOW HEAD Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 8D33-68D11-AA
                                                  SCREW, M6 X 20 SOCKET LOW HEAD
                                                  Black
                                                  from £0.47
                                                  from £0.47
                                                  M6X20 SOCKET LW HD BOLT Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 8D33-13255-AAW
                                                  NAME PAD ASSEMBLY, SILL LH
                                                  from £231.21
                                                  from £231.21
                                                  NAME PAD ASSEMBLY, SILL LH Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 8D33-13254-AAW
                                                  NAME PAD ASSEMBLY, SILL RH
                                                  from £231.21
                                                  from £231.21
                                                  NAME PAD ASSEMBLY, SILL RH Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: 8D33-132A50-AA
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: AD33-132A51-AA
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  Carbon Black Edition
                                                  from £282.37
                                                  from £282.37
                                                  NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: CD33-132A50-AA
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  Carbon Edition
                                                  from £237.52
                                                  from £237.52
                                                  NM PLT FRONT SILL SCF Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: CG33-80-10635
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  Dragon 88-English
                                                  from £141.29
                                                  from £141.29
                                                  NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: CG33-80-10634
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  Dragon 88 - Mandarin
                                                  from £141.29
                                                  from £141.29
                                                  NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 19
                                                  MPN: CD33-80-10120
                                                  NAME PLATE, SILL SCUFF PLATE
                                                  DBS Ultimate
                                                  from £798.49
                                                  from £798.49
                                                  NAME PLATE, SILL SCUFF PLATE Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 697687
                                                  SCREW, NO6 X 9.5 COUNTERSUNK HEAD
                                                  from £0.47
                                                  from £0.47
                                                  SCREW NO6 X 9.5 CS B Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 4G43-M4D4515-AA
                                                  FOAM, HANDBRAKE GAITER
                                                  from £0.48
                                                  from £0.48
                                                  FOAM Genuine Aston Martin - New (to order)
                                                  # 22
                                                  MPN: 4G43-831237-ABW
                                                  HANDBRAKE GAITER ASSEMBLY
                                                  from £445.31
                                                  from £445.31
                                                  HANDBRAKE GAITER ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 8D33-281B11-ABW
                                                  KIT ASSEMBLY, SIDE CARPET LHD
                                                  from £1,355.01
                                                  from £1,355.01
                                                  KIT ASSEMBLY, SIDE CARPET LHD Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 9D33-281B11-CBW
                                                  KIT ASSEMBLY, SIDE CARPET, LIGHTWEIGHT
                                                  LHD 9.5MY
                                                  KIT ASSEMBLY, SIDE CARPET, LIGHTWEIGHT Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 9D33-281B11-DCW
                                                  KIT ASSEMBLY, SIDE CARPET, HEAVYWEIGHT
                                                  LHD 9.5MY
                                                  KIT ASSEMBLY, SIDE CARPET, HEAVYWEIGHT Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 9D33-311A76-CA
                                                  FOOTWELL SPEAKER RH SILVER
                                                  9.5MY
                                                  from £436.31
                                                  from £436.31
                                                  FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                                  # 24
                                                  MPN: 9D33-311A76-DA
                                                  FOOTWELL SPEAKER RH BLACK
                                                  Carbon Edition, DBS Ultimate
                                                  from £445.28
                                                  from £445.28
                                                  FOOTWELL SPEAKER GRL RH Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 9D33-311A77-CA
                                                  FOOTWELL SPEAKER LH SILVER
                                                  9.5MY
                                                  from £436.31
                                                  from £436.31
                                                  FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                                  # 25
                                                  MPN: 9D33-311A77-DA
                                                  FOOTWELL SPEAKER LH BLACK
                                                  Carbon Edition, DBS Ultimate
                                                  from £445.28
                                                  from £445.28
                                                  FOOTWELL SPEAKER GRL LH Genuine Aston Martin - New (to order)
                                                  # 26
                                                  MPN: 8D33-13053-AAW
                                                  CARPET ASSEMBLY, FRONT FLOOR RH
                                                  NSS - Please use Floor Carpet Kit
                                                  from £1,186.65
                                                  from £1,186.65
                                                  CARPET ASSEMBLY, FRONT FLOOR RH Genuine Aston Martin - New (to order)
                                                  # 27
                                                  MPN: 8D33-13052-AAW
                                                  CARPET ASSEMBLY, FRONT FLOOR LH
                                                  NSS - Please use Floor Carpet Kit
                                                  from £1,186.65
                                                  from £1,186.65
                                                  CARPET ASSEMBLY, FRONT FLOOR LH Genuine Aston Martin - New (to order)
                                                  # 28
                                                  MPN: 8D33-130A36-ABW
                                                  CARPET ASSEMBLY, REAR FLOOR RH
                                                  NSS - Please use Floor Carpet Kit
                                                  CARPET ASSEMBLY, REAR FLOOR RH Genuine Aston Martin - New (to order)
                                                  # 29
                                                  MPN: 8D33-130A37-ACW
                                                  CARPET ASSEMBLY, REAR FLOOR LH
                                                  NSS - Please use Floor Carpet Kit
                                                  CARPET ASSEMBLY, REAR FLOOR LH Genuine Aston Martin - New (to order)
                                                  # 30
                                                  MPN: 8D33-10K973-ABW
                                                  CARPET HEELBOARD ASSEMBLY, REAR LH
                                                  from £402.30
                                                  from £402.30
                                                  CARPET HEELBOARD ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  FLOOR CARPET KIT (CONTAINS ITEMS 26-30) PHANTOM GREY
                                                  # -
                                                  -
                                                  FLOOR CARPET KIT (CONTAINS ITEMS 26-30) OBSIDIAN BLACK
                                                  # 31
                                                  MPN: 6G33-13925-AA
                                                  PUSH-ON FIX, M5 X 35
                                                  from £0.47
                                                  from £0.47
                                                  M5 X 35 PSH ON FIX Genuine Aston Martin - New (to order)
                                                  # 32
                                                  MPN: 702295
                                                  NUT, FLG, M5
                                                  from £0.47
                                                  from £0.47
                                                  NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                  # 33
                                                  MPN: 4G43-STC3710-AA
                                                  FASTENER, FIRTREE
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 4G43-STC3710-AA-PK
                                                  FIR TREE 8MM Genuine Aston Martin - New (to order)
                                                  # 34
                                                  MPN: 4G43-3N328-BE
                                                  FOOTREST ASSEMBLY
                                                  LHD
                                                  from £81.50
                                                  from £81.50
                                                  RES FT ASSEMBLY LHD Genuine Aston Martin - New (to order)
                                                  # 35
                                                  MPN: 9D33-201A49-AA
                                                  SHIELD, SPEAKER GRILLE
                                                  09MY
                                                  from £10.35
                                                  from £10.35
                                                  SHLD SPEAKER GRL PR LH Genuine Aston Martin - New (to order)
                                                  # 36
                                                  MPN: 703725
                                                  SCREW, M4 X 10
                                                  9.5MY
                                                  from £0.87
                                                  from £0.87
                                                  SCREW-M4X10 COUNTERSUNK SOCKET Genuine Aston Martin - New (to order)
                                                  # 36
                                                  MPN: 6G33-100N00-AA
                                                  ADHESIVE TAPE, DOUBLE-SIDED
                                                  from £8.70
                                                  from £8.70
                                                  ADHESIVE TAPE - DOUB Genuine Aston Martin - New (to order)
