aston martin dbs (2010) front lightweight seat parts diagram

011001-B1 - Front Lightweight Seat

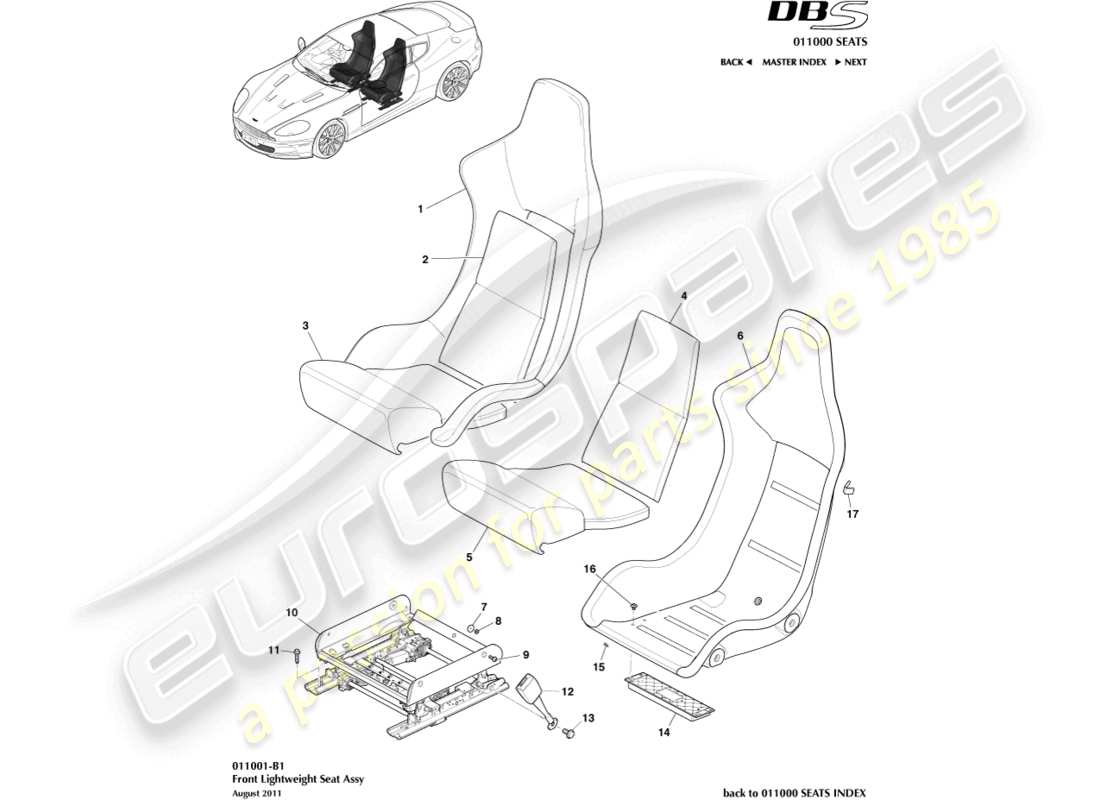

Aston Martin DBS (2010) Front Lightweight Seat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # -
                          MPN: 8D33-60008-ADW
                          FRONT SEAT ASSY, COMPLETE TRIMMED, RHS
                          from £10,510.41
                          from £10,510.41
                          FRONT SEAT ASSEMBLY, COMPLETE TRIMMED, RHS Genuine Aston Martin - New (to order)
                          # -
                          MPN: 8D33-60009-ADW
                          FRONT SEAT ASSY, COMPLETE TRIMMED, LHS
                          from £10,510.41
                          from £10,510.41
                          FRONT SEAT ASSEMBLY, COMPLETE TRIMMED, LHS Genuine Aston Martin - New (to order)
                          # -
                          MPN: 8D33-600C14-AE
                          FRONT SEAT ASSY, COMPLETE, NOT TRIMMED
                          FRONT SEAT ASSEMBLY, COMPLETE, NOT TRIMMED Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 8D33-60136-ACW
                          KIT, LEATHER COVER SQUAB ASSY RHS
                          from £2,692.21
                          from £2,692.21
                          KIT, LEATHER COVER SQUAB ASSEMBLY RHS Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 8D33-60136-ACW
                          KIT, LEATHER COVER SQUAB ASSY LHS
                          from £2,692.21
                          from £2,692.21
                          KIT, LEATHER COVER SQUAB ASSEMBLY RHS Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 8D33-60050-BAW
                          KIT, LEATHER COVER CUSHION ASSY
                          from £4,980.55
                          from £4,980.55
                          FRONT ST CSH ASSEMBLY RH Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 8D33-64572-ABW
                          KIT, LEATHER COVER OUTER SEAT ASSY
                          KIT, LEATHER COVER OUTER SEAT ASSEMBLY Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8D33-60136-BAW
                          SQUAB ASSY, TRIMMED, LIGHTWEIGHT SEAT BACK, RHS
                          SQUAB ASSEMBLY, TRIMMED, LIGHTWEIGHT SEAT BACK, RHS Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8D33-60137-BAW
                          SQUAB ASSY, TRIMMED, LIGHTWEIGHT SEAT BACK, LHS
                          from £4,277.43
                          from £4,277.43
                          SQUAB ASSEMBLY, TRIMMED, LIGHTWEIGHT SEAT BACK, LHS Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 8D33-60050-BAW
                          CUSHION ASSY, TRIMMED, LIGHTWEIGHT SEAT
                          from £4,980.55
                          from £4,980.55
                          FRONT ST CSH ASSEMBLY RH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 8G33-617B94-AA
                          SCREW, SHELL FIXINGS
                          SCREW, SHELL FIXINGS Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-74-10116
                          SEAT TRACK ASSY, LIGHTWEIGHT
                          from £1,385.87
                          from £1,385.87
                          HEIGHT ADJUSTER-6WAY Genuine Aston Martin - New (to order)
                          HEIGHT ADJUSTER-6WAY Genuine Aston Martin - Used In stock
                          Driver side
                          # 11
                          MPN: 702687
                          BOLT, M8X30 HEX FLG
                          BOLT M8 X 30 Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 4G43-613K22-BD
                          BELT BUCKLE ASSY, FRONT SEAT
                          from £166.87
                          from £166.87
                          BKLE ASSEMBLY FRONT BEL Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 9G43-14C249-AA
                          MODULE, ECU, FRT SEAT
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 14
                          MPN: CG43-14C249-BA
                          MODULE, ECU, FRT SEAT
                          12MY
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 16
                          MPN: 8D33-60302-BA
                          CLIP, EDGE
                          from £0.47
                          from £0.47
                          EDGE CLIP Genuine Aston Martin - New (to order)
                          # 17
                          MPN: AD23-61003-AA
                          CLIP
                          CLIP Genuine Aston Martin - New (to order)
                          # 17
                          MPN: AG33-61003-AA
                          CLIP, CABLE EDGE
                          CLIP, CABLE EDGE Genuine Aston Martin - New (to order)
