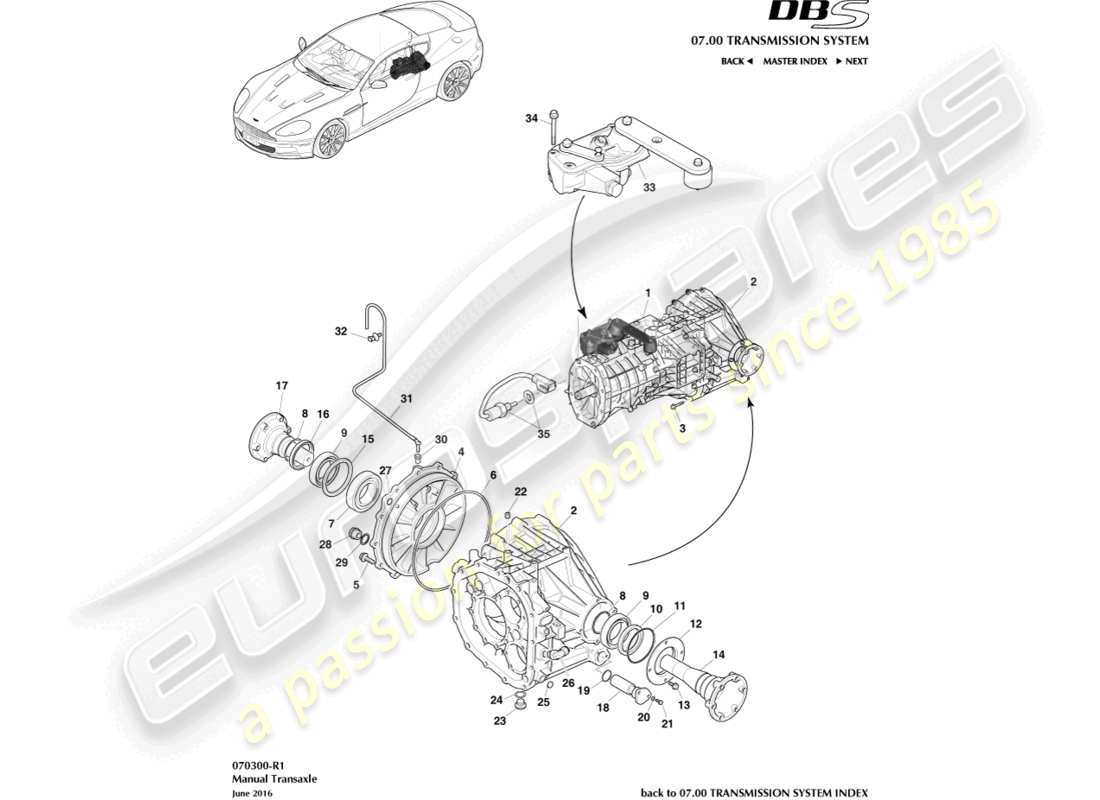

aston martin dbs (2010) transaxle, manual parts diagram

070300-R1 - Transaxle, Manual

Aston Martin DBS (2010) Transaxle, Manual Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 1
                                                                        MPN: 8D33-7002-AD
                                                                        TRANSAXLE ASSY COMPLETE, MANUAL
                                                                        TRANSAXLE ASSEMBLY COMPLETE, MANUAL Genuine Aston Martin - New (to order)
                                                                        # 2
                                                                        MPN: 4G43-27-10611
                                                                        HOUSING, DIFFERENTIAL
                                                                        from £3,014.12
                                                                        from £3,014.12
                                                                        HOUSING, DIFFERENTIAL Genuine Aston Martin - New (to order)
                                                                        # 3
                                                                        MPN: 702815
                                                                        BOLT M8X30, HEX FLG
                                                                        Trans to Diff
                                                                        from £3.09
                                                                        from £3.09
                                                                        BOLT M8 X 30 Genuine Aston Martin - New (to order)
                                                                        # 4
                                                                        MPN: 4G43-27-10606
                                                                        COVER, DIFFERENTIAL
                                                                        from £951.28
                                                                        from £951.28
                                                                        COVER, DIFFERENTIAL Genuine Aston Martin - New (to order)
                                                                        # 5
                                                                        MPN: 702815
                                                                        BOLT, M8 X 30
                                                                        from £3.09
                                                                        from £3.09
                                                                        BOLT M8 X 30 Genuine Aston Martin - New (to order)
                                                                        # 6
                                                                        MPN: 4G43-27-10607
                                                                        SEAL, COVER
                                                                        from £73.75
                                                                        from £73.75
                                                                        SEAL, COVER Genuine Aston Martin - New (to order)
                                                                        # 7
                                                                        MPN: 4G43-27-10605
                                                                        BEARING, DIFFERENTIAL OUTPUT
                                                                        from £188.38
                                                                        from £188.38
                                                                        BEARING, DIFFERENTIAL OUTPUT Genuine Aston Martin - New (to order)
                                                                        # 8
                                                                        MPN: 702813
                                                                        SHIM
                                                                        from £2.61
                                                                        from £2.61
                                                                        SHIM Genuine Aston Martin - New (to order)
                                                                        # 9
                                                                        MPN: 4G43-27-10603
                                                                        BEARING, DIF OUTPUT SHAFT
                                                                        from £125.22
                                                                        from £125.22
                                                                        BEARING, DIFFERENTIAL OUTPUT SHAFT Genuine Aston Martin - New (to order)
                                                                        # 10
                                                                        MPN: 4G43-27-10483
                                                                        SEAL, LIP, 55 X 72 X 8
                                                                        from £45.58
                                                                        from £45.58
                                                                        SEAL-DIFFOUTPUT-LEFT Genuine Aston Martin - New (to order)
                                                                        # 11
                                                                        MPN: 4G43-27-10482
                                                                        O RING, 2.62 X 75.87
                                                                        from £7.38
                                                                        from £7.38
                                                                        O RING 2.62 X 75.87 Genuine Aston Martin - New (to order)
                                                                        # 12
                                                                        MPN: 4G43-27-10602
                                                                        RETAINER, DIF OUTPUT SHAFT BEARING
                                                                        from £58.97
                                                                        from £58.97
                                                                        RETAINER, DIF OUTPUT SHAFT BEARING Genuine Aston Martin - New (to order)
                                                                        # 13
                                                                        MPN: 702812
                                                                        BOLT, M6 X 16 FLANGE HEAD
                                                                        from £0.73
                                                                        from £0.73
                                                                        BOLT M6 X 16 FLANGE Genuine Aston Martin - New (to order)
                                                                        # 14
                                                                        MPN: 4G43-27-10600
                                                                        OUTPUT SHAFT, LEFT SIDE DIFFERENTIAL
                                                                        from £731.13
                                                                        from £731.13
                                                                        O'PUT SHAFT-LFT SIDE Genuine Aston Martin - New (to order)
                                                                        # 15
                                                                        MPN: 702814
                                                                        SHIM
                                                                        from £101.80
                                                                        from £101.80
                                                                        SHIM Genuine Aston Martin - New (to order)
                                                                        # 16
                                                                        MPN: 4G43-27-10604
                                                                        SEAL, OUTPUT RIGHT SIDE DIFFERENTIAL
                                                                        from £45.13
                                                                        from £45.13
                                                                        SEAL-DIFFOUTPUT SHFT Genuine Aston Martin - New (to order)
                                                                        # 17
                                                                        MPN: 4G43-27-10601
                                                                        OUTPUT SHAFT, RIGHT SIDE DIFFERENTIAL
                                                                        from £533.88
                                                                        from £533.88
                                                                        O PUT SHAFT-RHT SIDE Genuine Aston Martin - New (to order)
                                                                        # 18
                                                                        MPN: 4G43-27-10490
                                                                        FILTER, OIL, TRANSAXLE
                                                                        from £122.50
                                                                        from £122.50
                                                                        OIL FILTER Genuine Aston Martin - New (to order)
                                                                        # 19
                                                                        MPN: 4G43-27-10491
                                                                        O RING, 2.62 X 20.63
                                                                        from £2.71
                                                                        from £2.71
                                                                        O RING, 2.62X20.63 Genuine Aston Martin - New In stock
                                                                        # 20
                                                                        MPN: 702821
                                                                        WASHER, 5.3 X 0.5
                                                                        from £2.53
                                                                        from £2.53
                                                                        WASHER, 5.3X0.5 Genuine Aston Martin - New (to order)
                                                                        # 21
                                                                        MPN: 4G43-27-10492
                                                                        SCREW, M5 X 0.8 X 12
                                                                        from £1.90
                                                                        from £1.90
                                                                        SCREW M5 X 12 Genuine Aston Martin - New (to order)
                                                                        # 22
                                                                        MPN: 702817
                                                                        SET SCREW, M8 X 10
                                                                        from £4.26
                                                                        from £4.26
                                                                        SET SCREW, M8X10 Genuine Aston Martin - New (to order)
                                                                        # 23
                                                                        MPN: 702819
                                                                        PLUG, OIL DRAIN
                                                                        PLUG, OIL DRAIN Genuine Aston Martin - New (to order)
                                                                        # 24
                                                                        MPN: 702820
                                                                        WASHER, OIL DRAIN PLUG
                                                                        WASHER, OIL DRAIN PLUG Genuine Aston Martin - New (to order)
                                                                        # 25
                                                                        MPN: 702818
                                                                        PLUG
                                                                        from £2.04
                                                                        from £2.04
                                                                        PLUG Genuine Aston Martin - New (to order)
                                                                        # 26
                                                                        MPN: 4G43-27-10609
                                                                        ADAPTOR 90°, TRANS COOLING PIPE
                                                                        PIPE, TRANS COOLING, 90° Genuine Aston Martin - New (to order)
                                                                        # 27
                                                                        MPN: 4G43-27-10502
                                                                        O RING 2.62 X 9.92
                                                                        from £1.07
                                                                        from £1.07
                                                                        O RING 2.69 X 9.92 Genuine Aston Martin - New (to order)
                                                                        # 28
                                                                        MPN: 4G43-27-10493
                                                                        PLUG, OIL LEVEL M22X1.5
                                                                        from £8.56
                                                                        from £8.56
                                                                        PLUG - OIL LEVEL M22 Genuine Aston Martin - New (to order)
                                                                        # 29
                                                                        MPN: 4G43-27-10245
                                                                        SEAL, FLAT 22 X 28 X 1.5
                                                                        from £2.67
                                                                        from £2.67
                                                                        SEAL, FLAT 22X28X1.5 Genuine Aston Martin - New (to order)
                                                                        # 30
                                                                        MPN: 4G43-27-10610
                                                                        ADAPTOR, BREATHER PIPE, TRANSAXLE
                                                                        ADAPTOR, BREATHER PIPE, TRANSAXLE Genuine Aston Martin - New (to order)
                                                                        # 31
                                                                        MPN: 4G43-7A245-CA
                                                                        PIPE, BREATHER, TRANSAXLE, MANUAL
                                                                        from £10.78
                                                                        from £10.78
                                                                        PIPE, BREATHER, TRANSAXLE, MANUAL Genuine Aston Martin - New (to order)
                                                                        # 32
                                                                        MPN: 701575
                                                                        CLIP, PIPE
                                                                        from £0.47
                                                                        from £0.47
                                                                        CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
                                                                        # 33
                                                                        MPN: 6G33-7N372-AB
                                                                        BELLCRANK ASSY, TRANSAXLE
                                                                        from £6,594.81
                                                                        from £6,594.81
                                                                        BELLCRANK ASSEMBLY, TRANSAXLE Genuine Aston Martin - New (to order)
                                                                        # 34
                                                                        MPN: 702822
                                                                        BOLT, M6 X 50
                                                                        from £3.32
                                                                        from £3.32
                                                                        BOLT M6 X 50 Genuine Aston Martin - New (to order)
                                                                        # 35
                                                                        MPN: 6G33-8F875-AA
                                                                        KIT, SWITCH, REVERSE LIGHT
                                                                        from £166.87
                                                                        from £166.87
                                                                        SWITCH, REVERSE LIGHT Genuine Aston Martin - New (to order)
                                                                        # -
                                                                        -
                                                                        GREASE, MANUAL TRANSMISSION
                                                                        # -
                                                                        -
                                                                        OIL, TRANSAXLE
