110203-C2 - Cooler, Hoses & Reservoir,RHD

Aston Martin DBS (2010) Cooler, Hoses & Reservoir,RHD Parts Diagram

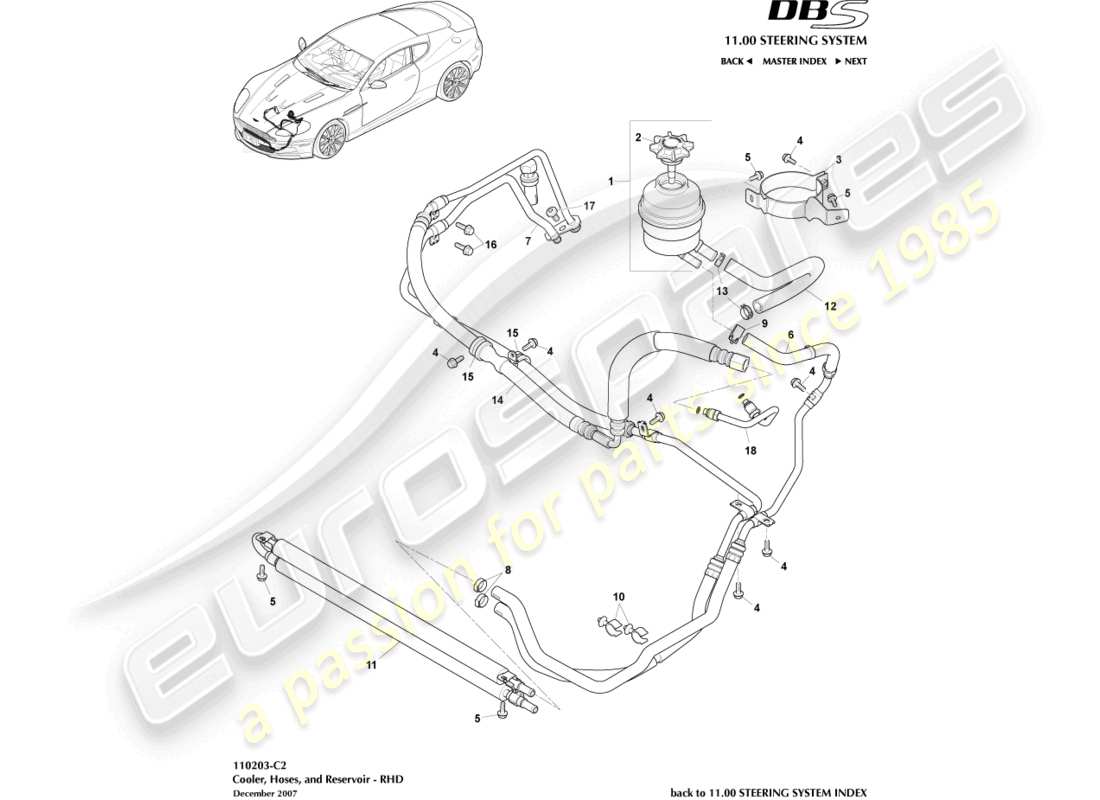

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 4G43-3R700-AA
                                    RESERVOIR AND CAP ASSY
                                    from £51.88
                                    from £51.88
                                    RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - New (to order)
                                    RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - Used In stock
                                    # 2
                                    MPN: 4G43-34006-AA
                                    CAP ASSY, POWER STEERING RESERVOIR
                                    CAP ASSEMBLY POWER STEERING RESERVOIR Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 4G43-3489-AC
                                    BRACKET, RESERVOIR
                                    from £33.20
                                    from £33.20
                                    BRACKET, RESERVOIR Genuine Aston Martin - New (to order)
                                    # 4
                                    MPN: 703203
                                    SCREW, FLG, M6 X 25
                                    from £0.47
                                    from £0.47
                                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                    LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                    # 5
                                    MPN: 703265
                                    SCREW, M6 X 16
                                    from £0.47
                                    from £0.47
                                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: 8D33-3A713-AB
                                    HOSE ASSY, STEERING COOLER TO RESERVOIR
                                    from £298.99
                                    from £298.99
                                    HOSE ASSEMBLY, STEERING COOLER TO RESERVOIR Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 8D33-3F558-BB
                                    HOSE ASSY, STEERING GEAR TO COOLER
                                    HOSE ASSEMBLY, STEERING GEAR TO COOLER Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 8D33-60155-AA
                                    CLAMP, PAS HOSE
                                    from £3.39
                                    from £3.39
                                    CLAMP - PAS HOSE Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 701349
                                    CLAMP
                                    from £0.59
                                    from £0.59
                                    CLAMP HOSE 20 DIAMETER Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 4G43-6C727-AA
                                    PIPE CLIP
                                    from £0.59
                                    from £0.59
                                    CLIP PIP OIL COOL Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 8D33-3D746-AB
                                    PAS COOLER ASSY
                                    from £225.57
                                    from £225.57
                                    COOLER ASY-PWR STNG Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: 4G43-3E525-AA
                                    HOSE ASSY, RESERVOIR
                                    from £38.53
                                    from £38.53
                                    HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - New (to order)
                                    HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - Used In stock
                                    # 13
                                    MPN: 699545
                                    CLAMP, 24MM DIA
                                    from £1.83
                                    from £1.83
                                    HOSE CLAMP Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 4G43-3A719-BE
                                    HOSE ASSY, PWR STEERING PUMP TO GR LH
                                    from £307.49
                                    from £307.49
                                    HOS-PWR STNG PRESS Genuine Aston Martin - New (to order)
                                    HOS-PWR STNG PRESS Genuine Aston Martin - Used In stock
                                    # 15
                                    MPN: 699711
                                    P CLIP, 23MM
                                    from £1.15
                                    from £1.15
                                    P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 703121
                                    SCREW M8 X 20
                                    from £0.47
                                    from £0.47
                                    SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 703141
                                    SCREW, PAN HEAD
                                    from £1.25
                                    from £1.25
                                    SCREW M8X16 Genuine Aston Martin - New (to order)
                                    FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                    # 18
                                    MPN: 4G43-3494-AA
                                    TUBE ASSY, PWR STEERING PUMP OUTLET
                                    Includes O Rings
                                    from £31.16
                                    from £31.16
                                    TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
                                    TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - Used In stock
                                    # -
                                    -
                                    FLUID, POWER STEERING, 20 LITRE
                                    Up To VIN E11520, See SB-11-0300
                                    # -
                                    -
                                    FLUID, POWER STEERING, 1 LITRE
                                    From VIN E11521, Pentosin CHF11S. See SB-11-0300
