120102 - Air Distribution Components

Aston Martin DBS (2011) Air Distribution Components Parts Diagram

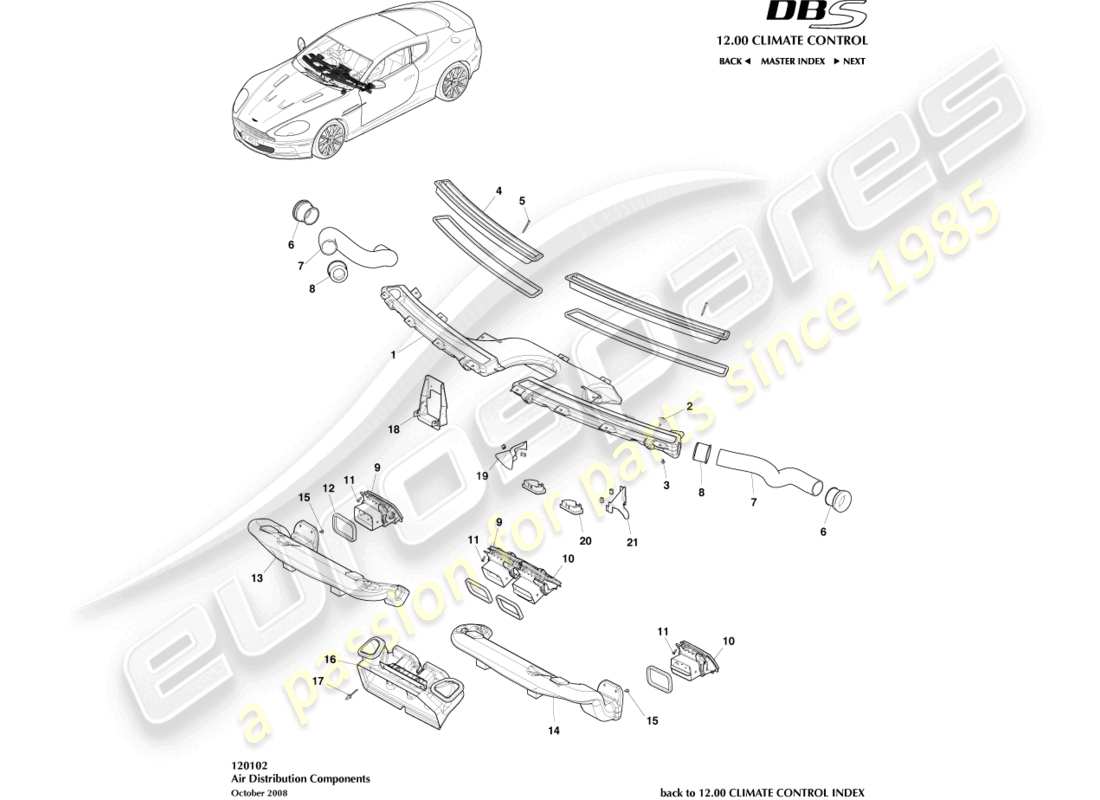

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 6G33-04432-BD
                              DUCT ASSEMBLY, WINDSHIELD DEFLECTOR
                              RHD
                              from £84.77
                              from £84.77
                              DCT ASSEMBLY Genuine Aston Martin - New (to order)
                              # 1
                              MPN: 6G33-04432-AD
                              DUCT ASSEMBLY, WINDSHIELD DEFLECTOR
                              LHD
                              from £84.77
                              from £84.77
                              DCT ASSEMBLY Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 703156
                              SCREW & WASHER, M6 X 18
                              from £0.47
                              from £0.47
                              This part replaces part number 703743
                              SCREW/WASHER M6X18 Genuine Aston Martin - New In stock
                              # 3
                              MPN: 703068
                              SCREW, 4.2 X 9 PAN COLLR INT LOB TAP
                              from £0.47
                              from £0.47
                              SCREW 4.2X9 Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 701157-PK
                              SCREW, 4.2 X 16 WASHER HEAD
                              from £1.59
                              from £1.59
                              SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 4G43-18C491-AJ
                              GRILLE, WINDOW DEFROST
                              from £356.03
                              from £356.03
                              GRILLE, WINDOW DEFROST Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 6G33-79231-AA
                              SCREW, M3.5 X 38 POZI
                              Screen Defog Grille
                              SCREW, M3.5 X 38, POZI Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 4G43-C046B80-AC
                              SEAL
                              from £5.55
                              from £5.55
                              SE I/PNL DEF OPG GRL Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 4G43-19E658-AC
                              HOSE, A/C SIDE WINDOW DEMISTER
                              from £18.44
                              from £18.44
                              HOSE-A/C WDO DMSTR Genuine Aston Martin - New (to order)
                              HOSE-A/C WDO DMSTR Genuine Aston Martin - Used In stock
                              # 8
                              MPN: 4G43-19E680-AD
                              CONNECTOR, A/C DEMISTER HOSE
                              from £5.55
                              from £5.55
                              CONNECTOR, DEMIST HOSE Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 8D33-046B30-BB
                              REGISTER ASSEMBLY, RH
                              Iridium Silver with White Symbols
                              from £87.13
                              from £87.13
                              RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 4G43-046B30-BB
                              REGISTER ASSEMBLY, RH
                              Graphite with White Symbols
                              from £46.92
                              from £46.92
                              RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                              RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - Used In stock
                              # 10
                              MPN: 8D33-046B31-BB
                              REGISTER ASSEMBLY, LH
                              Iridium Silver with White Symbols
                              from £87.13
                              from £87.13
                              RGSTR ASSEMBLY I/PNL A/C Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 4G43-046B31-BA
                              REGISTER ASSEMBLY, LH
                              Graphite with White Symbols
                              REGISTER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                              # 11
                              MPN: 4G43-18D404-CA
                              SEAL, FOAM
                              from £1.44
                              from £1.44
                              FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 701447
                              SCREW, M4 X 12 PAN TORX HD
                              Register to IP
                              from £0.47
                              from £0.47
                              SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 8G43-19C804-AC
                              DUCT ASSEMBLY, INSTRUMENT PANEL RH
                              DUCT, RH, INSTRUMENT PANEL Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 8G43-19C805-AC
                              DUCT ASSEMBLY, INSTRUMENT PANEL LH
                              from £42.52
                              from £42.52
                              DCT ASSEMBLY AIR CONDITIONING I/PNL CTR Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 6G33-RA610123-AA
                              POP RIVET, 4.8
                              Duct to mldg
                              from £0.47
                              from £0.47
                              POP RIVET ALUM 4.8 Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 8G43-18D404-BB
                              DUCT ASSEMBLY, HEATER AIR DSTR CTR
                              RHD
                              from £49.98
                              from £49.98
                              DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 8G43-18D404-AC
                              DUCT ASSEMBLY, HEATER AIR DSTR CTR
                              LHD
                              from £48.25
                              from £48.25
                              DCT ASY-HTR AIR DSTR Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 4G43-17A873-AA
                              RIVET, 4.8 X 12
                              from £1.07
                              from £1.07
                              RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
                              # 18
                              MPN: 9G43-370807-AA
                              BRACKET ASSEMBLY, TPM (LH)
                              LHD
                              from £6.75
                              from £6.75
                              BRACKET, TPM MOUNTING Genuine Aston Martin - New (to order)
                              # 18
                              MPN: 6G33-C608313-AA
                              POP RIVET, 3.2 X 11.5
                              TPM bracket
                              from £0.47
                              from £0.47
                              POP RIVET, 3.2 X 11.5 Genuine Aston Martin - New (to order)
                              # 19
                              MPN: 9D33-014K96-AA
                              DUCT ASSEMBLY, VENT AIR LOWER, RS, RHD
                              from £4.56
                              from £4.56
                              DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                              # 19
                              MPN: 8G43-014K97-BB
                              DUCT ASSEMBLY, VENT AIR LOWER, LS, RHD
                              from £23.49
                              from £23.49
                              DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                              # 20
                              MPN: 7G43-014K00-AA
                              PLUG ASSEMBLY, OUTLET FOOT DUCT
                              from £7.86
                              from £7.86
                              ASSEMBLY PLUG OLET F/DUCT Genuine Aston Martin - New (to order)
                              # 21
                              MPN: 9D33-014K97-AA
                              DUCT ASSEMBLY,VENT AIR LOWER, LS, LHD
                              from £4.56
                              from £4.56
                              DCT ASSEMBLY VEN AIR LOWER Genuine Aston Martin - New (to order)
                              # 21
                              MPN: 8G43-014K96-AB
                              DUCT ASSEMBLY, VENT AIR LOWER, RS, LHD
                              from £23.49
                              from £23.49
                              DCT ASSEMBLY VEN AUR LOWER Genuine Aston Martin - New (to order)
                              # -
                              -
