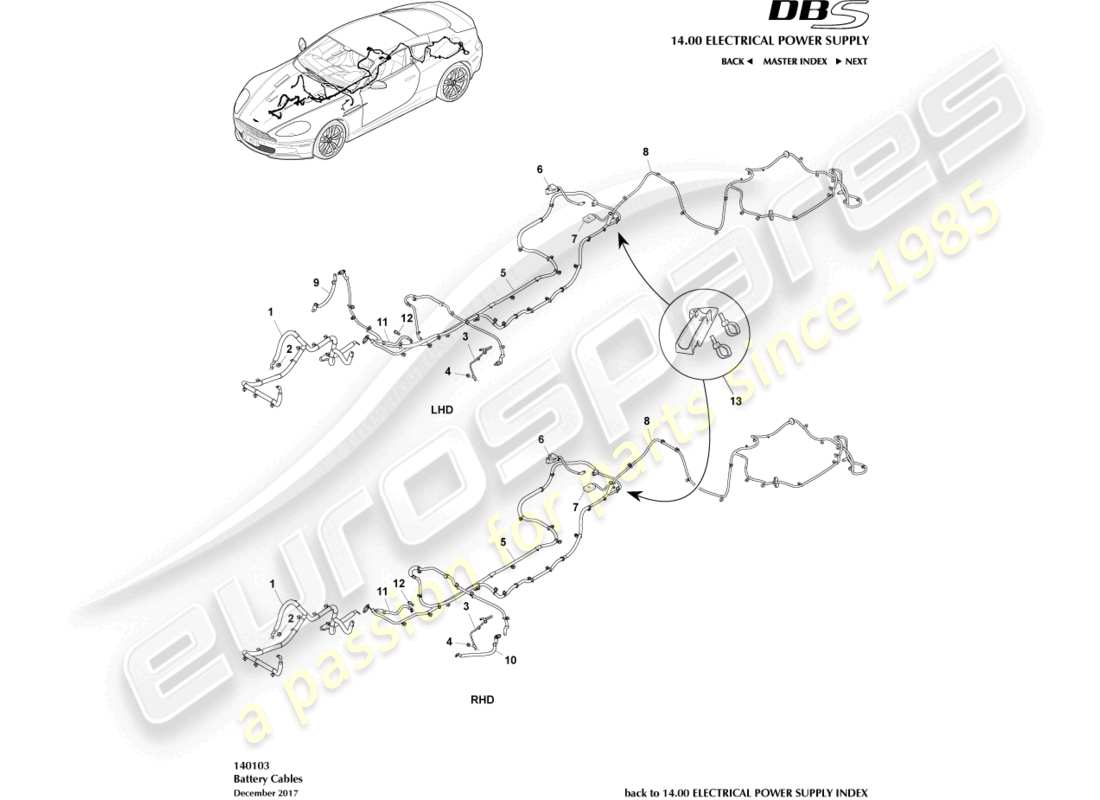

140103 - BATTERY CABLES

Aston Martin DBS (2012) Battery Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 8D33-10C310-AB
                    WIRE ASSY, BULKHEAD STUD TO STARTER
                    from £677.16
                    from £677.16
                    WIRE ASSEMBLY, BULKHEAD STUD TO STARTER Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 703739
                    NUT, FLG, M8
                    from £0.70
                    from £0.70
                    NUT-M8 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 4G43-14A280-DD
                    EARTH STRAP HARNESS, BONNET
                    from £12.18
                    from £12.18
                    EARTH STRAP, BONNET Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 702840
                    NUT AND WASHER, M6
                    from £0.47
                    from £0.47
                    NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 7G43-14305-AC
                    CABLE ASSY, BDS TO BULKHEAD STUD
                    from £39.45
                    from £39.45
                    CABLE ASSEMBLY, BDS TO BULKHEAD STUD Genuine Aston Martin - New (to order)
                    CABLE ASSEMBLY, BDS TO BULKHEAD STUD Genuine Aston Martin - Used In stock
                    # 5
                    MPN: 4G43-37-10114
                    TERMINAL POST
                    TERMINAL POST ASSEMBLY Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 4G43-E820201-AA
                    NUT, M8 HEX HEAD SPECIAL BRASS
                    from £1.21
                    from £1.21
                    NUT HEX SPCL BRASS Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 4G43-10400-AA
                    WASHER, M8 SPRING
                    from £0.52
                    from £0.52
                    WASHER SPRING COPPER Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 4G43-14300-AD
                    CABLE ASSY, BATTERY TO BDS
                    from £134.68
                    from £134.68
                    CABLE ASSEMBLY BATT BDS Genuine Aston Martin - New (to order)
                    CABLE ASSEMBLY BATT BDS Genuine Aston Martin - Used In stock
                    # 7
                    MPN: 4G43-14301-AD
                    CABLE ASSY, BATTERY TO GND
                    from £21.58
                    from £21.58
                    CABLE ASSY-BATT GND Genuine Aston Martin - New (to order)
                    CABLE ASSY-BATT GND Genuine Aston Martin - Used In stock
                    # 8
                    MPN: 8G43-14B278-AB
                    CABLE ASSY, BDS BULKHEAD STUD LHD
                    08MY
                    from £106.45
                    from £106.45
                    CABLE ASSEMBLY, BDS BULKHEAD STUD LHD Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 9G43-14B278-AC
                    CABLE ASSY, BDS BULKHEAD STUD LHD
                    9.5MY
                    from £93.01
                    from £93.01
                    CABLE ASSEMBLY, BDS TO BULKHD STUD, TO ENGINE BAY FUSE BOX, LHD Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 8G43-14B278-BC
                    CABLE ASSY, BDS BULKHEAD STUD RHD
                    08MY
                    CABLE ASSEMBLY, BDS TO BULKHD STUD, TO ENGINE BAY FUSE BOX, RHD Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 9G43-14B278-BC
                    CABLE ASSY, BDS BULKHEAD STUD RHD
                    09MY
                    from £103.35
                    from £103.35
                    CABLE ASSEMBLY, BDS TO BULKHD STUD, TO ENGINE BAY FUSE BOX, RHD Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 4G43-14B278-DD
                    WIRE ASSY, BULKHEAD STUD TO ENGINE BAY FUSE BOX LHD
                    from £18.79
                    from £18.79
                    CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - New (to order)
                    CABLE ASSEMBLY B/HEAD TO Genuine Aston Martin - Used In stock
                    # 9
                    MPN: AD33-14B278-FB
                    WIRE ASSY, BULKHEAD STUD TO ENGINE BAY FUSE BOX RHD
                    10MY Volante
                    from £352.49
                    from £352.49
                    WIRE ASSEMBLY, BULKHEAD STUD TO ENGINE BAY FUSE BOX RHD Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 4G43-14B278-D1
                    WIRE ASSY, BULKHEAD STUD TO ENGINE BAY FUSE BOX RHD
                    WIRE ASSEMBLY, BULKHEAD STUD TO ENGINE BAY FUSE BOX RHD Genuine Aston Martin - New (to order)
                    # 10
                    MPN: AD33-14B278-EB
                    WIRE ASSY, BULKHEAD STUD TO ENGINE BAY FUSE BOX LHD
                    10MY Volante
                    from £371.05
                    from £371.05
                    WIRE ASSEMBLY, BULKHEAD STUD TO ENGINE BAY FUSE BOX LHD Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 6G43-14A280-AA
                    EARTH STRAP HARNESS, ENGINE
                    from £15.02
                    from £15.02
                    ENGINE EARTH STRAP Genuine Aston Martin - New (to order)
                    ENGINE EARTH STRAP Genuine Aston Martin - Used In stock
                    # 12
                    MPN: 703200
                    SCREW, FLG, M10X25
                    from £0.47
                    from £0.47
                    SCREW M10X25 HEX FLANGE Genuine Aston Martin - New (to order)
                    # 13
                    MPN: GD33-37-10114
                    ROUTING BLOCK KIT
                    Up to VIN E03385 Coupe, VIN E02492 to E13384 Volante
                    from £9.11
                    from £9.11
                    ROUTING BLOCK KIT Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 4G43-37-10114
                    TERMINAL POST
                    TERMINAL POST ASSEMBLY Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 4G43-E820201-AA
                    NUT, M8 HEX HEAD SPECIAL BRASS
                    from £1.21
                    from £1.21
                    NUT HEX SPCL BRASS Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 4G43-10400-AA
                    WASHER, M8 SPRING
                    from £0.52
                    from £0.52
                    WASHER SPRING COPPER Genuine Aston Martin - New (to order)
