aston martin dbs (2014) cooler, hoses & reservoir parts diagram

110203-C1 - Cooler, Hoses & Reservoir

Aston Martin DBS (2014) Cooler, Hoses & Reservoir Parts Diagram

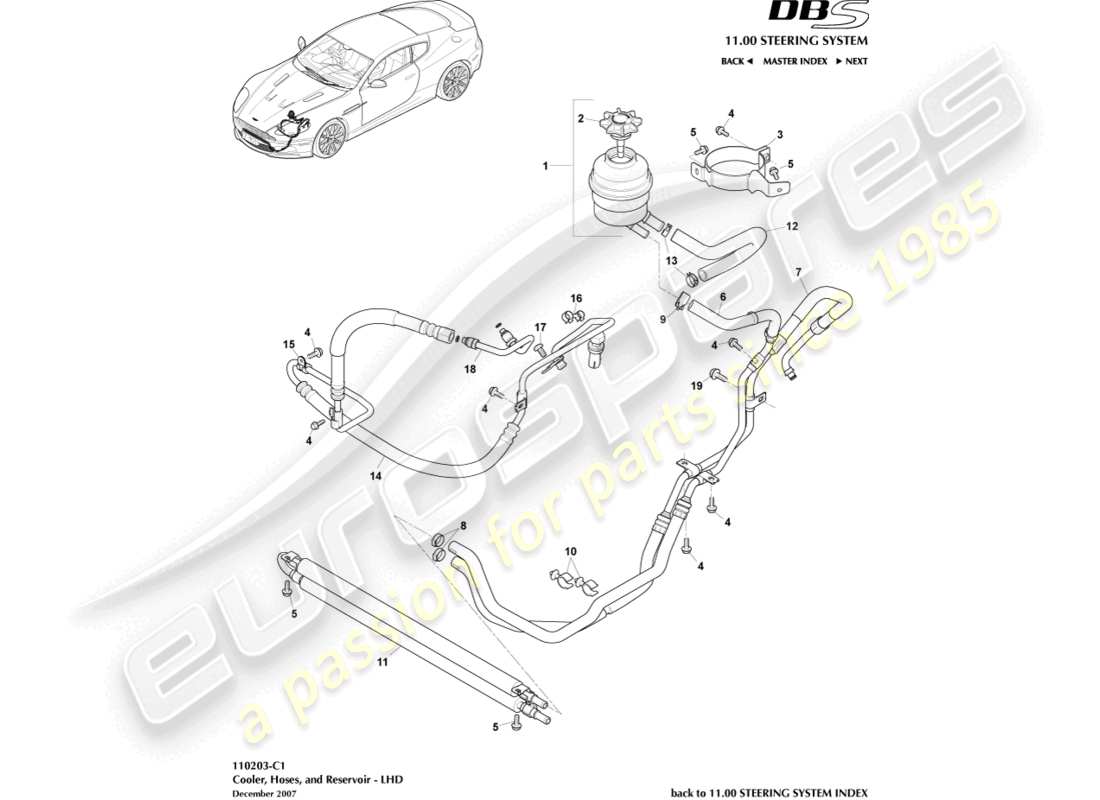

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 4G43-3R700-AA
                                      RESERVOIR AND CAP ASSY
                                      from £51.88
                                      from £51.88
                                      RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - New (to order)
                                      RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - Used In stock
                                      # 2
                                      MPN: 4G43-34006-AA
                                      CAP ASSY, POWER STEERING RESERVOIR
                                      CAP ASSEMBLY POWER STEERING RESERVOIR Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 4G43-3489-AC
                                      BRACKET, RESERVOIR
                                      from £33.20
                                      from £33.20
                                      BRACKET, RESERVOIR Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 703203
                                      SCREW, FLG, M6 X 25
                                      from £0.47
                                      from £0.47
                                      SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                      LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                      # 5
                                      MPN: 703265
                                      SCREW, M6 X 16
                                      from £0.47
                                      from £0.47
                                      SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 8D33-3A713-AB
                                      HOSE ASSY, STEERING COOLER TO RESERVOIR
                                      from £298.99
                                      from £298.99
                                      HOSE ASSEMBLY, STEERING COOLER TO RESERVOIR Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 8D33-3F558-AC
                                      HOSE ASSY, STEERING GEAR TO COOLER
                                      from £335.81
                                      from £335.81
                                      TUB ASY-PWR STNG RTN Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 8D33-60155-AA
                                      CLAMP, PAS HOSE
                                      from £3.39
                                      from £3.39
                                      CLAMP - PAS HOSE Genuine Aston Martin - New (to order)
                                      # 9
                                      MPN: 701349
                                      CLAMP
                                      from £0.59
                                      from £0.59
                                      CLAMP HOSE 20 DIAMETER Genuine Aston Martin - New (to order)
                                      # 10
                                      MPN: 4G43-6C727-AA
                                      PIPE CLIP
                                      from £0.59
                                      from £0.59
                                      CLIP PIP OIL COOL Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 8D33-3D746-AB
                                      PAS COOLER ASSY
                                      from £225.57
                                      from £225.57
                                      COOLER ASY-PWR STNG Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 4G43-3E525-AA
                                      HOSE ASSY, RESERVOIR
                                      from £38.53
                                      from £38.53
                                      HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - New (to order)
                                      HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - Used In stock
                                      # 13
                                      MPN: 699545
                                      CLAMP, 24MM DIA
                                      from £1.83
                                      from £1.83
                                      HOSE CLAMP Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 4G43-3A719-AE
                                      HOSE ASSY, PWR STEERING PUMP TO GR LH
                                      Supersession
                                      Supersession
                                      Genuine Aston Martin (no longer available to order)
                                      # 15
                                      MPN: 694891
                                      P CLIP, 10MM
                                      from £2.31
                                      from £2.31
                                      P-CLIP Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: 4G43-105050-AA
                                      CLIP, DOUBLE PIPE
                                      from £1.46
                                      from £1.46
                                      CLIP - DOUBLE Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 703141
                                      SCREW, PAN HEAD
                                      from £1.25
                                      from £1.25
                                      SCREW M8X16 Genuine Aston Martin - New (to order)
                                      FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                      # 18
                                      MPN: 4G43-3494-AA
                                      TUBE ASSY, PWR STEERING PUMP OUTLET
                                      Includes O Rings
                                      from £31.16
                                      from £31.16
                                      TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
                                      TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - Used In stock
                                      # 19
                                      MPN: 703121
                                      SCREW M8 X 20
                                      from £0.47
                                      from £0.47
                                      SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                      # -
                                      -
                                      FLUID, POWER STEERING, 20 LITRE
                                      Up To VIN E11520, See SB-11-0300
                                      # -
                                      -
                                      FLUID, POWER STEERING, 1 LITRE
                                      From VIN E11521, Pentosin CHF11S. See SB-11-0300
