0101.0000 - Main Tub

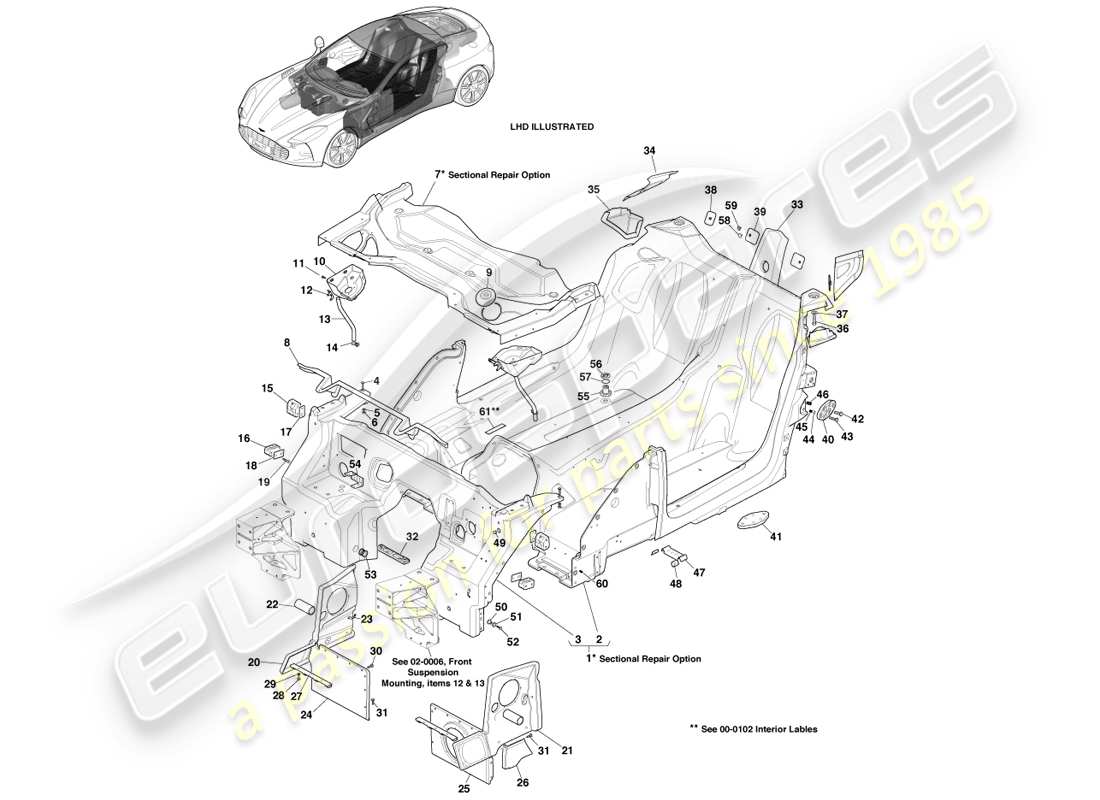

Aston Martin One-77 (2011) Main Tub Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 12023-05-1488-AL
Main Tub and Dash Bonded Assy, LHD
NSS
# 1
MPN: 12023-05-1489-AD
MAIN TUB AND DASH BONDED ASSY, RHD
NSS
# 2
MPN: 12023-05-11014-BR
MAIN TUB, LHD
NSS
# 2
MPN: 12023-05-11015-AD
MAIN TUB, RHD
NSS
# 3
MPN: 12023-05-1022-BK
DASH PANEL, LHD
# 3
MPN: 12023-05-1023-AD
Dash Panel, RHD
# 4
MPN: 12023-09-6058-AA
Screw, M8 X 1.25 X 35, Flange BHCS
# 5
MPN: 12023-09-6112-AA
WASHER, FLAT
# 6
MPN: 12023-09-6034-AA
NUT, M8 HEX HEAD
# 7
MPN: 12023-05-1020-AZ
COWL, UPPER PANEL, LHD
# 7
MPN: 12023-05-1021-AC
COWL, UPPER PANEL, RHD
# 8
MPN: 12023-05-1028-AD
Gusset, Cowl Panel
# 9
MPN: 12023-03-7026-AA
Cover, Brake Fluid Reservoir LHD
from £1,183.40
from £1,183.40
# 9
MPN: 12023-03-7027-AA
Cover, Brake Fluid Reservoir RHD
from £1,183.40
from £1,183.40
# 10
MPN: 12023-05-1397-AL
Mount Assy, Windshield Wiper motor Assy, RH
# 10
MPN: 12023-05-1396-AL
Mount Assy, Windshield Wiper motor Assy, LH
# 11
MPN: 12023-09-6044-AA
SCREW, M6 X 1.0 X 20, BHCS
# 12
MPN: 12023-03-8516-AA
BRACKET, WIPER IN LINE
from £51.06
from £51.06
# 13
MPN: 12023-03-8718-AB
TUBE, WIPER DRAIN
from £124.20
from £124.20
# 14
MPN: AY93-14E047-AA
CLIP, TIE WRAP PUSH
# 15
MPN: 12023-05-1243-AE
Hinge Reinforcement, Upper, RH
# 15
MPN: 12023-05-1242-AE
Hinge Reinforcement, Upper, LH
# 16
MPN: 12023-05-1244-AF
HINGE REINFORCEMENT, LOWER
# 17
MPN: 12023-05-1250-AD
Backing Plate, Hinge Reinforcement, Upper
# 18
MPN: 12023-05-1252-AD
Backing Plate, Hinge Reinforcement, Lower
# 19
MPN: 12023-09-6000-AA
Screw, M8 X 1.25 X 40, Hex Head
# 20
MPN: 12023-05-1520-AA
Cowl Side Inner Panel Bonded Assy, LHD, RH
# 20
MPN: 12023-05-1524-AA
Cowl Side Inner Panel Bonded Assy, RHD, RH
# 21
MPN: 12023-05-1518-AA
Cowl Side Inner Panel Bonded Assy, LHD, LH
# 21
MPN: 12023-05-1508-AB
Cowl Side Inner Panel Bonded Assy, LHD, LH
# 22
MPN: 12023-05-1348-AA
TUBE, DOOR WIRE LOOM
# 23
MPN: 12023-03-7000-AA
BRACKET, TOP HAT, SINGLE
from £43.20
from £43.20
# 24
MPN: 12023-05-1036-AH
Bulkhead, Passengers Side Footwell, LHD
# 24
MPN: 12023-05-1037-AE
Bulkhead, Passengers Side Footwell, RHD
# 25
MPN: 12023-05-1034-AJ
BULKHEAD, DRIVERS SIDE FOOTWELL, LHD
# 25
MPN: 12023-05-1035-AJ
Bulkhead, Drivers Side Footwell, RHD
# 26
MPN: 12023-05-1070-AC
PAD, SIDE FOOTWELL, DRIVERS SIDE, LHD
# 26
MPN: 12023-05-1071-AB
Pad, Side Footwell, Drivers Side, RHD
# 27
MPN: 12023-05-1218-AB
Bracket, Upper Fwd Bulkhead to Shear Bulkhead
# 28
MPN: 12023-09-6008-AA
Screw, M8 X 1.25 X 22, Hex Head
# 29
MPN: 12023-09-6112-AA
WASHER, FLAT
# 30
MPN: 12023-09-6054-AA
Screw, M8 X 1.25 X 30 Flange BHCS
# 31
MPN: 12023-09-6050-AA
Screw, M8 X 1.25 X 20, Flange BHCS
# 32
MPN: 12023-05-1388-AF
Bracket Assy, Battery Tray Support
# 33
MPN: 12023-05-1080-AK
Mount, Centre Rear Tube
# 34
MPN: 12023-05-1061-AF
GLASS BUCKET, REAR QUARTER, RH
# 34
MPN: 12023-05-1060-AF
Glass Bucket, Rear Quarter, LH
# 35
MPN: 12023-05-1115-AD
Panel, B Pillar Closeout, RH
# 35
MPN: 12023-05-1114-AD
Panel, B Pillar Closeout, LH
# 36
MPN: 12023-09-6020-AA
Screw, M12 X 1.75 X 50, Hex Head Screw
# 37
MPN: 12023-09-6106-AA
WASHER, FLAT
# 38
MPN: 12023-05-1284-AD
Mount Nut Plate Assy, Outer Shoulder Harness
# 39
MPN: 12023-05-1286-AD
MOUNT NUT PLATE ASSY, INNER SHOULDER HARNESS
# 40
MPN: 12023-05-1274-AB
Strap, Upper Chassis, Rear Tub to Main Tub
# 41
MPN: 12023-05-1276-AB
Strap, Lower Chassis, Rear Tub to Main Tub
# 42
MPN: 12023-09-6040-AA
Screw, M12 X 1.75 X 35, Hex Head
from £26.44
from £26.44
# 43
MPN: 04113-100-035
Screw, M10 X 1.5 X 35, Hex Head
# 44
MPN: 12023-05-1332-AA
SHEAR SLEEVE, CHASSIS STRAP
# 45
MPN: 1084-10CN-240
Helical Insert, M10 X 1.5 X 15
# 46
MPN: 1084-12CN-240
Helical Insert, M12 X 1.75 X 24
# 47
MPN: 12023-03-7526-AA
BRACKET, TUNNEL BRIDGE
from £57.51
from £57.51
# 48
MPN: 12023-05-1450-AA
COVER CAP
# 49
MPN: 12023-05-15-1502-AA
Plug, Datum
# 50
MPN: 12023-05-1330-AB
Bolt Reciever, Bond In
# 51
MPN: 12023-05-1328-AA
Bolt Socket, Bond In
# 52
MPN: 12023-09-6082-AA
Screw, M8 X 1.25 X 25, Hex Socket Countersunk
# 53
MPN: 12023-05-1208-AA
Insert, Top Hat, Battery Vent
# 54
MPN: 12023-03-8598-AB
BRACKET, ENGINE BAY IN LINE
from £74.21
from £74.21
# 55
MPN: 12023-05-1086-AB
INSERT THREADED, TUB DATUM
from £241.04
from £241.04
# 56
MPN: 12023-05-1088-AA
RETAINER, INSERT
from £203.95
from £203.95
# 57
MPN: 12023-05-1106-AA
O RING
# 58
MPN: 12023-05-1494-AB
STUD, BOND ON FLUSH, M5 X 12
# 59
-
STUD, BIG HEAD BONDING, M5-1.0 X 12
# 60
MPN: 93715A615
Keensert, KNM 8 X 1.25 X 12
# 61
MPN: 12023-05-1512-AA
VIN PLATE, CHASSIS
