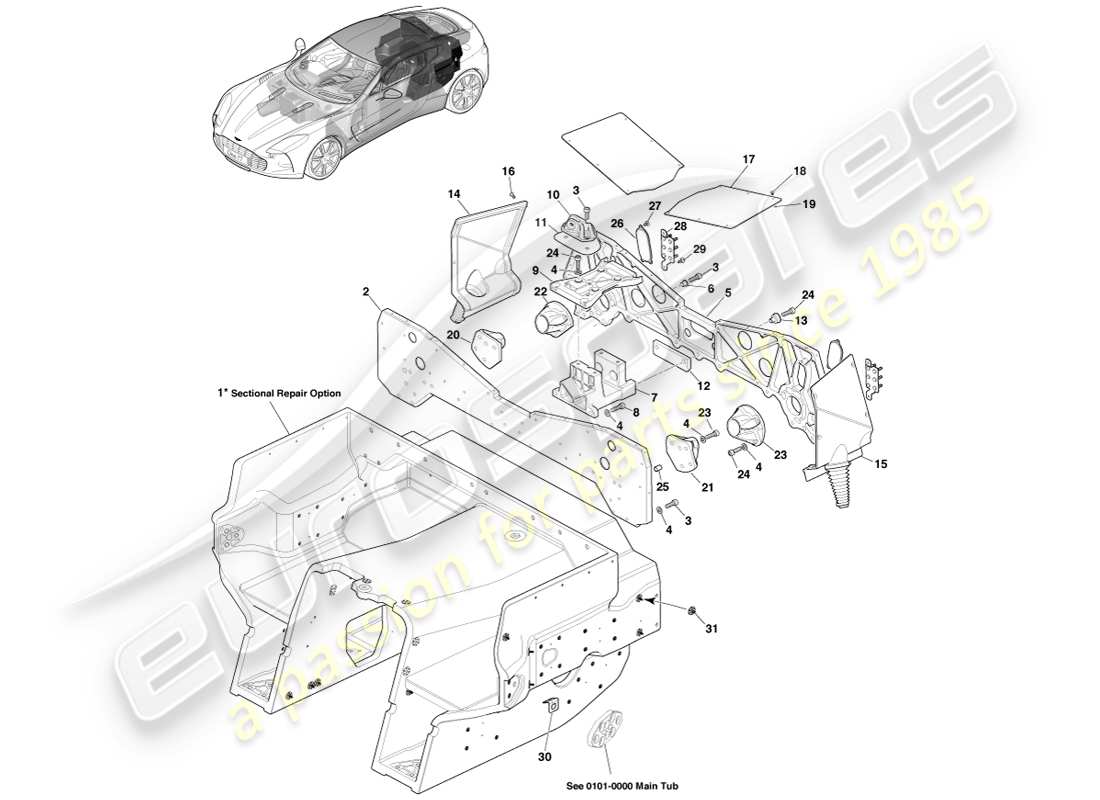

0101.0011 - Rear Tub Assembly
Aston Martin One-77 (2011) Rear Tub Assembly Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 12023-06-1358-AC
Rear Tub Bonded Assy
# 2
MPN: 12023-06-1116-AG
FRONT PLATE, REAR DAMPER TRAY
# 3
MPN: 55327-0596
SCREW, M10 X 1.5 X 25
# 4
MPN: 12023-09-6114
WASHER, FLAT
# 5
MPN: 12023-06-1118-AF
REAR PLATE, REAR DAMPER TRAY
# 6
MPN: 12023-06-1174-AA
SHEAR SLEEVE
# 7
MPN: 12023-06-1130-AE
Centre Mount, Rear Damper
# 8
MPN: 12023-09-6070-AA
SCREW, M10 X 1.5 X 35
from £1.21
from £1.21
# 9
MPN: 12023-06-1140-AC
Cover Plate, Rear Damper Centre Mount
# 10
MPN: 12023-06-1144-AE
BRACKET, REAR CENTRE V BRACE
# 11
MPN: 12023-06-1320-AA
TRIM PANEL, V BRACE CENTRE NODE
# 12
MPN: 12023-06-1366-AA
SPACER, CENTRE DAMPER MOUNT
# 13
MPN: 12023-06-1368-AA
Sleeve, Centre Damper Mount
# 14
MPN: 12023-06-1265-AE
End Cover Assy, Rear Damper Tray, RH
# 15
MPN: 12023-06-1264-AE
End Cover Assy, Rear Damper Tray, LH
# 16
MPN: 55327-0752
Screw, M5 X 0.8 X 12, CHCS
# 17
MPN: 12023-06-1272-AB
Window Panel, Rear Damper Tray
# 18
MPN: 55327-0750
Screw, M5-0.80 X 08, BHSC
# 19
MPN: 12023-06-1318-AA
SPACER, WINDOW PANEL MOUNT
# 20
MPN: 12023-06-1134-AC
Rocker Mount Front RH, Rear Damper Tray
# 21
MPN: 12023-06-1132-AC
Rocker Mount Front LH, Rear Damper Tray
# 22
MPN: 12023-06-1138-AC
Rocker Mount Rear RH, Rear Damper Tray
# 23
MPN: 12023-06-1136-AC
Rocker Mount Rear LH, Rear Damper Tray
# 24
MPN: 12023-09-6068
SCREW, M10 X 1.5 X 30
# 25
MPN: 12023-06-1180-AA
Shear Sleeve, ID 10.2 X 19
# 26
MPN: 12023-06-1274-AA
Cover, Rocket Access, Rear Damper Tray
# 27
MPN: 55327-0748
SCREW, M6-1.00 X 12 FLANGE BHCS
# 28
MPN: 12023-03-7124-AC
PLATE, REAR EARTH
from £61.26
from £61.26
# 29
MPN: 702535
SCREW, M6, HEX HEAD
from £1.23
from £1.23
# 30
MPN: 12023-03-8504-AB
BRACKET, REAR BRAKE LINE JUMPER HOSE
from £63.09
from £63.09
# 31
MPN: M1/B23-M5 x 12
STUD, M5- 1.0 X 12 BIG HEAD BONDING
