0101.0020 - REAR TRUNK

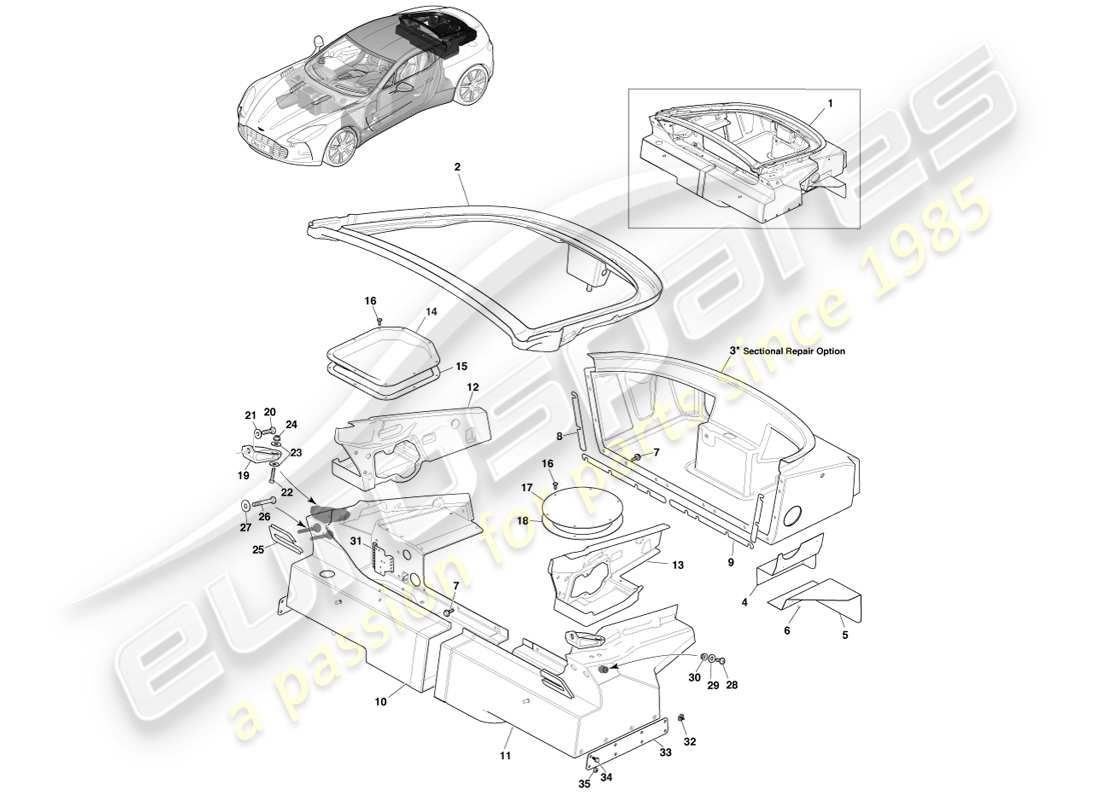

Aston Martin One-77 (2011) Rear Trunk Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 12023-06-1360-AC
REAR TRUNK BONDED ASSY
NSS
from £64,897.64
from £64,897.64
# 2
MPN: 12023-06-1022-AF
TROUGH, REAR LIFT GLASS
# 3
MPN: 12023-06-1364-AB
TRUNK TUB REAR ASSY
NSS
# 4
MPN: 12023-06-1378-AD
BRACKET A, FUEL FILLER PROTECTION
# 5
MPN: 12023-06-1376-AG
BRACKET B, FUEL FILLER PROTECTION
# 6
-
RIVET 1,8
# 7
MPN: 12023-09-6024-AA
SCREW, M6 X 1.0 X 16 HEX HEAD FLANGE
# 8
MPN: 12023-06-1278-AC
Shim, Side, Rear Trunk Tub to Damper Tray
# 9
MPN: 12023-06-1280-AC
Shim, Centre, Rear Trunk Tub to Damper Tray
# 10
MPN: 12023-06-1384-AE
TRUNK TUB ASSY, FRONT RH
# 11
MPN: 12023-06-1330-AK
TRUNK TUB ASSY, FRONT LH
# 12
MPN: 12023-06-1233-AJ
PANEL. REAR SPEAKER, RH
# 13
MPN: 12023-06-1232-AJ
PANEL. REAR SPEAKER, LH
# 14
MPN: 12023-06-1340-AA
COVER ASSY, FUEL TANK ACCESS RH
# 15
MPN: 12023-06-1316-AA
Seal Pad, Fuel Tank Access RH
# 16
MPN: 12023-09-6042-AA
SCREW, M6-1.00 X 16 FLANGE BHCS
# 17
MPN: 12023-06-1276-AB
COVER, FUEL TANK ACCESS LH
# 18
MPN: 12023-06-1314-AB
SEAL PAD, FUEL TANK ACCESS LH
# 19
MPN: 12023-06-1290-AA
BRACKET, UPPER, TRUNK TUB ANCHOR
# 20
MPN: 04113-100-035
SCREW, M10 X 1.5 X 35 HEX HEAD
# 21
MPN: 12023-09-6104-AA
WASHER, FLAT
# 22
MPN: 12023-09-6012-AA
SCREW, M8 X 1.25 X 35 HEX HEAD
# 23
MPN: 12023-09-6104-AA
WASHER, FLAT
# 24
MPN: 12023-09-6086-AA
NUT, M8 HEX FLANGED
# 25
MPN: 12023-06-1294-AA
SHIM, TRUNK TUB FRONT TO MAIN TUB B-NODE
# 26
MPN: 12023-09-6016-AA
SCREW, M10 X 1.5 X 75 HEX HEAD
# 27
MPN: 12023-09-6104-AA
WASHER, FLAT
# 28
MPN: 12023-09-6052-AA
SCREW, M8-1.25 X 25 FLANGE BHCS
# 29
MPN: 12023-09-60026-AA
WASHER, FLAT
# 30
MPN: 12023-09-6086-AA
NUT, M8 HEX FLANGED
# 31
MPN: 12023-03-7004-AB
BRACKET, RIDE HEIGHT RH
from £53.83
from £53.83
# 32
-
STUD, M5-1.0 X 12 BIG HEAD BONDING
# 33
MPN: 12023-06-1240-AD
Cleat, Rear Trunk Tub, front to rear
# 34
MPN: 12023-09-6024-AA
SCREW, M6 x 16
# 35
MPN: 12023-09-6084-AA
NUT, M6
