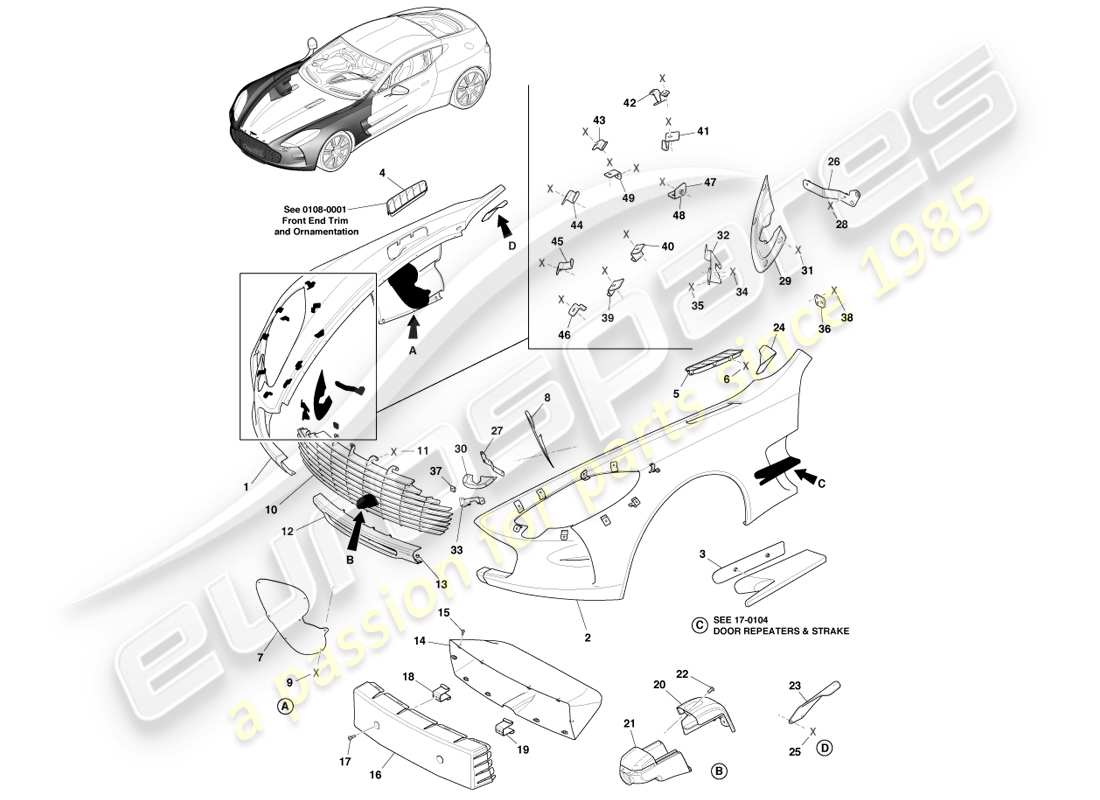

0103.0000 - Front Wings and Grille
Aston Martin One-77 (2011) Front Wings and Grille Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
1
MPN:
DBYA02002-M
FENDER, FRONT, RH
from
£17,396.94
from
£17,396.94
#
2
MPN:
DBYA02001-S
FENDER, FRONT, LH
from
£16,808.62
from
£16,808.62
#
3
MPN:
DBY00313-A
BRACKET, INNER STRAKE
#
4
MPN:
DBY00254-C
VENT, COMPLETE - FRT FENDER RH
from
£2,643.76
from
£2,643.76
#
5
MPN:
DBY00253-C
VENT, COMPLETE - FRT FENDER LH
from
£2,653.10
from
£2,653.10
#
6
-
FIXING, FRT FENDER VENTS
#
7
MPN:
12023-03-8325-AC
MESH, TORPEDO TUBE RH
from
£166.98
from
£166.98
#
8
MPN:
12023-03-8324-AC
MESH, TORPEDO TUBE LH
from
£166.98
from
£166.98
#
9
-
FIXING, TORPEDO TUBE MESH
7 per mesh
#
10
MPN:
DBYA02015-B
GRILLE, FRONT
Polished finish
from
£32,716.25
from
£32,716.25
#
10
MPN:
AY93-71-10101
GRILLE, FRONT
Brushed finish
from
£23,055.99
from
£23,055.99
#
11
-
FIXING, FRONT GRILLE
#
12
MPN:
DBY00357-C
VALANCE, FRONT LOWER COMPLETE
from
£4,081.61
from
£4,081.61
#
13
MPN:
DBY00339-A
SPACER, FRT GRILLE SURROUND PANEL LOWER
#
14
MPN:
12023-03-8970-AA
PLINTH, REAR, FRONT LICENSE PLATE (EEC)
EEC
from
£2,384.04
from
£2,384.04
#
14
MPN:
12023-03-7072-AA
PLINTH, REAR, FRONT LICENSE PLATE (GCC)
GCC
from
£2,012.98
from
£2,012.98
#
15
MPN:
702084
SCREW M5X12 PAN HD
6 req for GCC
Supersession
Supersession
#
16
MPN:
12023-03-8968-AC
PLINTH, FRONT, FRONT LICENSE PLATE (EEC)
EEC
from
£2,416.04
from
£2,416.04
#
16
MPN:
12023-03-7070-AB
PLINTH, FRONT, FRONT LICENSE PLATE (GCC)
GCC
from
£2,179.98
from
£2,179.98
#
16
MPN:
12023-03-7800-AA
PLINTH, FRONT, FRONT LICENSE PLATE (SWISS)
Swiss
from
£2,526.91
from
£2,526.91
#
17
MPN:
6G33-FA0115-AB-PK
SCREW, M6X20, SOCKET HEAD
20 Per Pack
from
£12.00
from
£12.00
This part replaces part number 6G33-FA0115-AB
#
18
MPN:
12023-03-7065-AC
BRACKET, LICENSE PLINTH ,RH (EEC/GCC)
EEC/GCC
from
£298.68
from
£298.68
#
18
MPN:
12023-03-7797-AA
BRACKET, LICENSE PLINTH ,RH (SWISS)
Swiss
from
£92.77
from
£92.77
#
19
MPN:
12023-03-7064-AC
BRACKET, LICENSE PLINTH ,LH (EEC/GCC)
EEC/GCC
from
£298.68
from
£298.68
#
19
MPN:
12023-03-7796-AA
BRACKET, LICENSE PLINTH ,LH (SWISS)
Swiss
from
£92.77
from
£92.77
#
20
MPN:
12023-03-7144-AB
Cover, Front Camera Upper
from
£774.80
from
£774.80
#
21
-
COVER, FRONT CAMERA LOWER
#
22
-
SCREW M4X8 BUTTON HD
Frt Camera Covers
#
23
MPN:
DBY00380-A
Insert, Frt Fender 'A' Pillar RH
#
24
MPN:
DBY00380-A
INSERT, FRT FENDER 'A' PILLAR LH
#
25
-
FIXING, FRT FENDER INSERTS
2 per insert
#
26
MPN:
DBY02068-B
SUPPORT, FRT LIGHT FRT LOWER RH
#
27
MPN:
DBY02067-B
SUPPORT, FRT LIGHT FRT LOWER LH
#
28
-
FIXING, LIGHT FRT SUPPORT
2 per support
#
29
MPN:
12023-07-1027-AB
BEZEL, HD LAMP WASHER RH
#
30
MPN:
12023-07-1026-AB
BEZEL, HD LAMP WASHER LH
#
31
-
FIXING, HD LAMP WASHER BEZEL
4 per bezel
#
32
MPN:
DBYA02042-C
BRACKET, POWERWASH ASSY RH
from
£50.09
from
£50.09
#
33
MPN:
DBYA02041-C
BRACKET, POWERWASH ASSY LH
from
£50.09
from
£50.09
#
34
-
FIXING POWERWASH BRACKET
#
35
-
FIXING POWERWASH BRACKET
#
36
MPN:
DBY00332-B
BRACKET, GRILLE MOUNTING RH
#
37
MPN:
DBY00331-B
BRACKET, GRILLE MOUNTING LH
#
38
-
FIXING, GRILLE MOUNTING BRACKET
2 per bracket
#
39
MPN:
DBY00429-A
CLIP, HD LAMP LOCATION 1 LH
from
£23.40
from
£23.40
#
39
MPN:
DBY00430-A
CLIP, HD LAMP LOCATION 1 RH
from
£23.40
from
£23.40
#
40
MPN:
DBY00431-A
CLIP, HD LAMP LOCATION 2 LH
from
£23.40
from
£23.40
#
40
MPN:
DBY00432-A
CLIP, HD LAMP LOCATION 2 RH
from
£23.40
from
£23.40
#
41
MPN:
DBY00433-A
CLIP, HD LAMP LOCATION 3 LH
from
£23.40
from
£23.40
#
41
MPN:
DBY00434-A
CLIP, HD LAMP LOCATION 3 RH
from
£23.40
from
£23.40
#
42
MPN:
DBY00435-A
CLIP, HD LAMP LOCATION 4 LH
from
£23.40
from
£23.40
#
42
MPN:
DBY00436-A
CLIP, HD LAMP LOCATION 4 RH
from
£23.40
from
£23.40
#
43
MPN:
DBY00437-A
CLIP, HD LAMP LOCATION 5 LH
from
£23.40
from
£23.40
#
43
MPN:
DBY00438-A
CLIP, HD LAMP LOCATION 5 RH
from
£23.40
from
£23.40
#
44
MPN:
DBY00439-A
CLIP, HD LAMP LOCATION 6 LH
from
£23.40
from
£23.40
#
44
MPN:
DBY00440-A
CLIP, HD LAMP LOCATION 6 RH
from
£23.40
from
£23.40
#
45
MPN:
DBY00441-A
CLIP, HD LAMP LOCATION 7 LH
from
£23.40
from
£23.40
#
45
MPN:
DBY00442-A
CLIP, HD LAMP LOCATION 7 RH
from
£23.40
from
£23.40
#
46
MPN:
DBY00443-A
CLIP, HD LAMP LOCATION 8 LH
from
£23.40
from
£23.40
#
46
MPN:
DBY00444-A
CLIP, HD LAMP LOCATION 8 RH
from
£23.40
from
£23.40
#
47
MPN:
DBY00424-A
SUPPORT, FRT LIGHT REAR INNER LOWER RH
#
47
MPN:
DBY00423-A
SUPPORT, FRT LIGHT REAR INNER LOWER LH
#
48
-
NUT M6 HEX
#
49
MPN:
DBY00422-A
SUPPORT, FRT LIGHT REAR OUTER LOWER RH
#
49
MPN:
DBY00421-A
SUPPORT, FRT LIGHT REAR OUTER LOWER LH
-part-diagram-0103.0002.webp "ASTON MARTIN ONE-77 (2011) REAR QUARTER PANELS PARTS DIAGRAM")
-part-diagram-0103.0005.webp "ASTON MARTIN ONE-77 (2011) BONNET ASSEMBLY PARTS DIAGRAM")
-part-diagram-0103.0006.webp "ASTON MARTIN ONE-77 (2011) FRONT WHEEL ARCHES PARTS DIAGRAM")
-part-diagram-0103.0008.webp "ASTON MARTIN ONE-77 (2011) REAR WHEEL ARCHES PARTS DIAGRAM")
-part-diagram-0103.0009.webp "ASTON MARTIN ONE-77 (2011) FRONT DOORS PARTS DIAGRAM")
-part-diagram-0103.0016.webp "ASTON MARTIN ONE-77 (2011) FRONT DOOR HINGES PARTS DIAGRAM")
-part-diagram-0103.0054.webp "ASTON MARTIN ONE-77 (2011) REAR WING ASSEMBLY PARTS DIAGRAM")
-part-diagram-0105.0010.webp "ASTON MARTIN ONE-77 (2011) SEAT BELT POCKET COVER PARTS DIAGRAM")
-part-diagram-0105.0026.webp "ASTON MARTIN ONE-77 (2011) TOE BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0105.0040.webp "ASTON MARTIN ONE-77 (2011) SUNVISOR PARTS DIAGRAM")
-part-diagram-0105.0500.webp "ASTON MARTIN ONE-77 (2011) DOOR TRIM PARTS DIAGRAM")
-part-diagram-0105.0504.webp "ASTON MARTIN ONE-77 (2011) LOAD COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0105.0510.webp "ASTON MARTIN ONE-77 (2011) HEADLINER AND PILLAR TRIM PARTS DIAGRAM")
-part-diagram-0105.0511.webp "ASTON MARTIN ONE-77 (2011) FLOOR TRIM PARTS DIAGRAM")
-part-diagram-0106.0001.webp "ASTON MARTIN ONE-77 (2011) BULKHEAD & ENGINE INSULATION PARTS DIAGRAM")
-part-diagram-0106.0002.webp "ASTON MARTIN ONE-77 (2011) EXHAUST HEATSHIELD ASSY PARTS DIAGRAM")
-part-diagram-0107.0004.webp "ASTON MARTIN ONE-77 (2011) DOOR APERATURE SEALS PARTS DIAGRAM")
-part-diagram-0107.0006.webp "ASTON MARTIN ONE-77 (2011) DOOR WAIST SEALS PARTS DIAGRAM")
-part-diagram-0107.0008.webp "ASTON MARTIN ONE-77 (2011) BONNET & TAILGATE SEALS PARTS DIAGRAM")
-part-diagram-0108.0001.webp "ASTON MARTIN ONE-77 (2011) FRONT END TRIM PARTS DIAGRAM")
-part-diagram-0108.0004.webp "ASTON MARTIN ONE-77 (2011) BODYSIDE & QUARTER TRIM PARTS DIAGRAM")
-part-diagram-0108.0010.webp "ASTON MARTIN ONE-77 (2011) DOOR WAIST TRIM PARTS DIAGRAM")
-part-diagram-0109.0034.webp "ASTON MARTIN ONE-77 (2011) EXTERIOR REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-0109.0044.webp "ASTON MARTIN ONE-77 (2011) INTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-0110.0060.webp "ASTON MARTIN ONE-77 (2011) SPARCO SPORTS SEAT PARTS DIAGRAM")
-part-diagram-0110.0061.webp "ASTON MARTIN ONE-77 (2011) FRONT SEAT ADJUSTMENT PARTS DIAGRAM")
-part-diagram-0111.0002.webp "ASTON MARTIN ONE-77 (2011) DOOR GLASS PARTS DIAGRAM")
-part-diagram-0111.0004.webp "ASTON MARTIN ONE-77 (2011) REAR WINDSCREEN PARTS DIAGRAM")
-part-diagram-0111.0005.webp "ASTON MARTIN ONE-77 (2011) DOOR WINDOW REGULATORS PARTS DIAGRAM")
-part-diagram-0111.0006.webp "ASTON MARTIN ONE-77 (2011) WINDSHIELD PARTS DIAGRAM")
-part-diagram-0111.0012.webp "ASTON MARTIN ONE-77 (2011) REAR QUARTER GLASS PARTS DIAGRAM")
-part-diagram-0111.0022.webp "ASTON MARTIN ONE-77 (2011) REAR WINDSCREEN LATCH PARTS DIAGRAM")
-part-diagram-0111.0046.webp "ASTON MARTIN ONE-77 (2011) REAR WINDSCREEN HINGE PARTS DIAGRAM")
-part-diagram-0111.0092.webp "ASTON MARTIN ONE-77 (2011) WINDOW/MIRROR LOCK CONTROLLER PARTS DIAGRAM")
-part-diagram-0112.0001.webp "ASTON MARTIN ONE-77 (2011) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-0112.0002.webp "ASTON MARTIN ONE-77 (2011) CENTRE STACK PARTS DIAGRAM")
-part-diagram-0112.0003.webp "ASTON MARTIN ONE-77 (2011) CENTRE CONSOLE WITH ARMREST PARTS DIAGRAM")
-part-diagram-0112.0004.webp "ASTON MARTIN ONE-77 (2011) CROSS CAR BEAM PARTS DIAGRAM")
-part-diagram-0112.0005.webp "ASTON MARTIN ONE-77 (2011) CENTRE STACK FASCIA PARTS DIAGRAM")
-part-diagram-0114.0001.webp "ASTON MARTIN ONE-77 (2011) TRANSMITTER, RKE PARTS DIAGRAM")
-part-diagram-0114.0002.webp "ASTON MARTIN ONE-77 (2011) START/STOP MODULE PARTS DIAGRAM")
-part-diagram-0114.0024.webp "ASTON MARTIN ONE-77 (2011) FUEL FILLER MECHANISM PARTS DIAGRAM")
-part-diagram-0114.0036.webp "ASTON MARTIN ONE-77 (2011) HANDLE ASSEMBLY PARTS DIAGRAM")
-part-diagram-0114.0038.webp "ASTON MARTIN ONE-77 (2011) FRONT DOOR LATCH PARTS DIAGRAM")
-part-diagram-0114.0040.webp "ASTON MARTIN ONE-77 (2011) HOOD LATCH SYSTEM PARTS DIAGRAM")
-part-diagram-0116.0006.webp "ASTON MARTIN ONE-77 (2011) WASHER BOTTLE PARTS DIAGRAM")
-part-diagram-0116.0008.webp "ASTON MARTIN ONE-77 (2011) WIPER BLADE ASSEMBLY PARTS DIAGRAM")
-part-diagram-0116.0050.webp "ASTON MARTIN ONE-77 (2011) WINDSCREEN WASH PARTS DIAGRAM")
-part-diagram-0116.0058.webp "ASTON MARTIN ONE-77 (2011) HEADLAMP WASH PARTS DIAGRAM")
-part-diagram-0116.0096.webp "ASTON MARTIN ONE-77 (2011) WIPER LINKAGE ASSEMBLY PARTS DIAGRAM")
-part-diagram-0119.0000.webp "ASTON MARTIN ONE-77 (2011) GRILLE OPENING PANEL PARTS DIAGRAM")
-part-diagram-0119.0002.webp "ASTON MARTIN ONE-77 (2011) REAR BUMPER ARMATURE PARTS DIAGRAM")
-part-diagram-0119.0016.webp "ASTON MARTIN ONE-77 (2011) REAR DIFFUSER PARTS DIAGRAM")
-part-diagram-0120.0022.webp "ASTON MARTIN ONE-77 (2011) PASSENGER AIRBAG PARTS DIAGRAM")
-part-diagram-0120.0034.webp "ASTON MARTIN ONE-77 (2011) AIRBAG CONTROL PARTS DIAGRAM")
-part-diagram-0120.0048.webp "ASTON MARTIN ONE-77 (2011) FRONT SEAT BELTS PARTS DIAGRAM")
-part-diagram-0120.0136.webp "ASTON MARTIN ONE-77 (2011) ACTUATION SENSORS PARTS DIAGRAM")
-part-diagram-02.0004.webp "ASTON MARTIN ONE-77 (2011) FRONT SUBFRAME PARTS DIAGRAM")
-part-diagram-02.0006.webp "ASTON MARTIN ONE-77 (2011) FRONT STRUCTURE PARTS DIAGRAM")
-part-diagram-02.0007.webp "ASTON MARTIN ONE-77 (2011) REAR SUSPENSION MOUNTINGS PARTS DIAGRAM")
-part-diagram-02.0010.webp "ASTON MARTIN ONE-77 (2011) ENGINE MOUNTINGS PARTS DIAGRAM")
-part-diagram-02.0012.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION MOUNTINGS PARTS DIAGRAM")
-part-diagram-02.0040.webp "ASTON MARTIN ONE-77 (2011) REAR SUBFRAME PARTS DIAGRAM")
-part-diagram-03.0001.webp "ASTON MARTIN ONE-77 (2011) ENGINE CORE PLUGS PARTS DIAGRAM")
-part-diagram-03.0002.webp "ASTON MARTIN ONE-77 (2011) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-03.0004.webp "ASTON MARTIN ONE-77 (2011) FUEL CHARGING & CONTROLS PARTS DIAGRAM")
-part-diagram-03.0005.webp "ASTON MARTIN ONE-77 (2011) ACCESSORY DRIVE PARTS DIAGRAM")
-part-diagram-03.0006.webp "ASTON MARTIN ONE-77 (2011) ENGINE CRANKING PARTS DIAGRAM")
-part-diagram-03.0007.webp "ASTON MARTIN ONE-77 (2011) IGNITION PARTS DIAGRAM")
-part-diagram-03.0009.webp "ASTON MARTIN ONE-77 (2011) EMISSION CONTROL PARTS DIAGRAM")
-part-diagram-03.0010.webp "ASTON MARTIN ONE-77 (2011) VALVE TIMING PARTS DIAGRAM")
-part-diagram-03.0011.webp "ASTON MARTIN ONE-77 (2011) ENGINE SEALING PARTS DIAGRAM")
-part-diagram-03.0012.webp "ASTON MARTIN ONE-77 (2011) HEADER TANK & WATER PUMP PARTS DIAGRAM")
-part-diagram-03.0014.webp "ASTON MARTIN ONE-77 (2011) EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-03.0015.webp "ASTON MARTIN ONE-77 (2011) ELECTRONIC ENGINE CONTROL PARTS DIAGRAM")
-part-diagram-03.0024.webp "ASTON MARTIN ONE-77 (2011) COOLANT RESERVOIR & HOSES PARTS DIAGRAM")
-part-diagram-03.0026.webp "ASTON MARTIN ONE-77 (2011) AIR CHARGING PARTS DIAGRAM")
-part-diagram-03.0028.webp "ASTON MARTIN ONE-77 (2011) DRY SUMP OIL TANK PARTS DIAGRAM")
-part-diagram-03.0038.webp "ASTON MARTIN ONE-77 (2011) RADIATOR ASSEMBLY PARTS DIAGRAM")
-part-diagram-03.0044.webp "ASTON MARTIN ONE-77 (2011) OIL BREATHER TUBING PARTS DIAGRAM")
-part-diagram-03.0046.webp "ASTON MARTIN ONE-77 (2011) ENGINE LUBRICATION PIPES PARTS DIAGRAM")
-part-diagram-03.0048.webp "ASTON MARTIN ONE-77 (2011) THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-04.0000.webp "ASTON MARTIN ONE-77 (2011) WHEELS & TYRES PARTS DIAGRAM")
-part-diagram-04.0002.webp "ASTON MARTIN ONE-77 (2011) FRONT SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-04.0003.webp "ASTON MARTIN ONE-77 (2011) REAR SUSPENSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-04.0004.webp "ASTON MARTIN ONE-77 (2011) REAR SPRING & DAMPER PARTS DIAGRAM")
-part-diagram-04.0008.webp "ASTON MARTIN ONE-77 (2011) ADJUSTABLE RIDE HEIGHT SYSTEM, REAR PARTS DIAGRAM")
-part-diagram-04.0014.webp "ASTON MARTIN ONE-77 (2011) REAR STABILISER BAR PARTS DIAGRAM")
-part-diagram-04.0028.webp "ASTON MARTIN ONE-77 (2011) ADJUSTABLE RIDE HEIGHT SYSTEM, FRONT PARTS DIAGRAM")
-part-diagram-04.0032.webp "ASTON MARTIN ONE-77 (2011) FRONT STABILISER BAR PARTS DIAGRAM")
-part-diagram-04.0034.webp "ASTON MARTIN ONE-77 (2011) FRONT SPRING & DAMPER PARTS DIAGRAM")
-part-diagram-05.0004.webp "ASTON MARTIN ONE-77 (2011) DRIVESHAFT ASSEMBLY PARTS DIAGRAM")
-part-diagram-05.0006.webp "ASTON MARTIN ONE-77 (2011) REAR HALFSHAFT ASSEMBLY PARTS DIAGRAM")
-part-diagram-06.0002.webp "ASTON MARTIN ONE-77 (2011) BRAKE PEDAL ASSEMBLY PARTS DIAGRAM")
-part-diagram-06.0006.webp "ASTON MARTIN ONE-77 (2011) REAR BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-06.0012.webp "ASTON MARTIN ONE-77 (2011) POWER BRAKE ASSEMBLY PARTS DIAGRAM")
-part-diagram-06.0016.webp "ASTON MARTIN ONE-77 (2011) FRONT BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-06.0028.webp "ASTON MARTIN ONE-77 (2011) ANTI-LOCK CONTROL PARTS DIAGRAM")
-part-diagram-06.0036.webp "ASTON MARTIN ONE-77 (2011) BRAKE LINES & HOSES, LHD PARTS DIAGRAM")
-part-diagram-06.0038.webp "ASTON MARTIN ONE-77 (2011) BRAKE LINES & HOSES, RHD PARTS DIAGRAM")
-part-diagram-06.0044.webp "ASTON MARTIN ONE-77 (2011) VACUUM HOSE ASSEMBLY PARTS DIAGRAM")
-part-diagram-06.0132.webp "ASTON MARTIN ONE-77 (2011) PARKING BRAKE MODULE PARTS DIAGRAM")
-part-diagram-06.0133.webp "ASTON MARTIN ONE-77 (2011) PARKING BRAKE SWITCH PARTS DIAGRAM")
-part-diagram-07.0002.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION ASSEMBLY PARTS DIAGRAM")
-part-diagram-07.0002a.webp "ASTON MARTIN ONE-77 (2011) SPORTSHIFT KITS PARTS DIAGRAM")
-part-diagram-07.0014.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION COOLER PARTS DIAGRAM")
-part-diagram-07.0068.webp "ASTON MARTIN ONE-77 (2011) PADDLESHIFT PARTS DIAGRAM")
-part-diagram-07.0116.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION ECU PARTS DIAGRAM")
-part-diagram-07.0117.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION SWITCHES PARTS DIAGRAM")
-part-diagram-08.0042.webp "ASTON MARTIN ONE-77 (2011) CLUTCH SYSTEM PARTS DIAGRAM")
-part-diagram-09.0018.webp "ASTON MARTIN ONE-77 (2011) EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-09.0030.webp "ASTON MARTIN ONE-77 (2011) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-09.0034.webp "ASTON MARTIN ONE-77 (2011) VACUUM DISTRIBUTION PARTS DIAGRAM")
-part-diagram-09.0050.webp "ASTON MARTIN ONE-77 (2011) HEGO SENSORS PARTS DIAGRAM")
-part-diagram-09.0052.webp "ASTON MARTIN ONE-77 (2011) HEATSHIELD SUBSYSTEM PARTS DIAGRAM")
-part-diagram-10.0020.webp "ASTON MARTIN ONE-77 (2011) FUEL PIPES PARTS DIAGRAM")
-part-diagram-10.0020.2.webp "ASTON MARTIN ONE-77 (2011) CARBON CANISTER PARTS DIAGRAM")
-part-diagram-10.0032.webp "ASTON MARTIN ONE-77 (2011) FUEL FILLER PARTS DIAGRAM")
-part-diagram-10.0036.webp "ASTON MARTIN ONE-77 (2011) FUEL TANK ASSY PARTS DIAGRAM")
-part-diagram-10.0110.webp "ASTON MARTIN ONE-77 (2011) FUEL PUMP MODULES PARTS DIAGRAM")
-part-diagram-11.0004.webp "ASTON MARTIN ONE-77 (2011) POWER STEERING PARTS DIAGRAM")
-part-diagram-11.0008.webp "ASTON MARTIN ONE-77 (2011) STEERING COLUMN ASSEMBLY PARTS DIAGRAM")
-part-diagram-11.0014.webp "ASTON MARTIN ONE-77 (2011) STEERING WHEEL ASSEMBLY PARTS DIAGRAM")
-part-diagram-11.0048.webp "ASTON MARTIN ONE-77 (2011) COOLER, HOSES & RESERVOIR, LHD PARTS DIAGRAM")
-part-diagram-11.0050.webp "ASTON MARTIN ONE-77 (2011) COOLER, HOSES & RESERVOIR, RHD PARTS DIAGRAM")
-part-diagram-11.0074.webp "ASTON MARTIN ONE-77 (2011) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-12.0001.webp "ASTON MARTIN ONE-77 (2011) AIR DISTRIBUTION COMPONENTS PARTS DIAGRAM")
-part-diagram-12.0010.webp "ASTON MARTIN ONE-77 (2011) EVAPORATOR & HEATER PARTS DIAGRAM")
-part-diagram-12.0036.webp "ASTON MARTIN ONE-77 (2011) AIR INTAKE DUCTS PARTS DIAGRAM")
-part-diagram-12.0042.webp "ASTON MARTIN ONE-77 (2011) AIR EXTRACTION COMPONENTS PARTS DIAGRAM")
-part-diagram-12.0053.webp "ASTON MARTIN ONE-77 (2011) COOLANT HOSES PARTS DIAGRAM")
-part-diagram-12.0054.webp "ASTON MARTIN ONE-77 (2011) AIR CON LINES PARTS DIAGRAM")
-part-diagram-12.0126.webp "ASTON MARTIN ONE-77 (2011) SENSORS PARTS DIAGRAM")
-part-diagram-13.0024.webp "ASTON MARTIN ONE-77 (2011) HORN SYSTEM PARTS DIAGRAM")
-part-diagram-13.0118.webp "ASTON MARTIN ONE-77 (2011) INSTRUMENT CLUSTER PARTS DIAGRAM")
-part-diagram-13.0144.webp "ASTON MARTIN ONE-77 (2011) PARKING AID SENSORS PARTS DIAGRAM")
-part-diagram-14.0004.webp "ASTON MARTIN ONE-77 (2011) BATTERY PARTS DIAGRAM")
-part-diagram-14.0006.webp "ASTON MARTIN ONE-77 (2011) FUSE PANELS PARTS DIAGRAM")
-part-diagram-14.0138.webp "ASTON MARTIN ONE-77 (2011) JUMPSTART TERMINAL PARTS DIAGRAM")
-part-diagram-14.0140.webp "ASTON MARTIN ONE-77 (2011) BATTERY DISCONNECT SWITCH PARTS DIAGRAM")
-part-diagram-14.0141.webp "ASTON MARTIN ONE-77 (2011) BATTERY ON/OFF SWITCHES PARTS DIAGRAM")
-part-diagram-15.0000.webp "ASTON MARTIN ONE-77 (2011) MEDIA CONTROLS PARTS DIAGRAM")
-part-diagram-15.0020.webp "ASTON MARTIN ONE-77 (2011) SPEAKERS PARTS DIAGRAM")
-part-diagram-15.0100.webp "ASTON MARTIN ONE-77 (2011) RADIO ANTENNA PARTS DIAGRAM")
-part-diagram-15.0106.webp "ASTON MARTIN ONE-77 (2011) INFOTAINMENT MODULE PARTS DIAGRAM")
-part-diagram-15.0126.webp "ASTON MARTIN ONE-77 (2011) AMPLIFIER PARTS DIAGRAM")
-part-diagram-17.0000.webp "ASTON MARTIN ONE-77 (2011) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-17.0001.webp "ASTON MARTIN ONE-77 (2011) LIGHTING SWITCH PARTS DIAGRAM")
-part-diagram-17.0002.webp "ASTON MARTIN ONE-77 (2011) REAR LAMPS PARTS DIAGRAM")
-part-diagram-17.0003.webp "ASTON MARTIN ONE-77 (2011) COURTESY LIGHTING PARTS DIAGRAM")
-part-diagram-17.0050.webp "ASTON MARTIN ONE-77 (2011) LICENSE PLATE LAMPS PARTS DIAGRAM")
-part-diagram-17.0104.webp "ASTON MARTIN ONE-77 (2011) SIDE REPEATERS PARTS DIAGRAM")
-part-diagram-17.0134.webp "ASTON MARTIN ONE-77 (2011) FOG & REVERSE LAMP PARTS DIAGRAM")
-part-diagram-18.0003.webp "ASTON MARTIN ONE-77 (2011) REAR END HARNESS PARTS DIAGRAM")
-part-diagram-18.0004.webp "ASTON MARTIN ONE-77 (2011) ENGINE HARNESS PARTS DIAGRAM")
-part-diagram-18.0005.webp "ASTON MARTIN ONE-77 (2011) EARTH HARNESS PARTS DIAGRAM")
-part-diagram-18.0007.webp "ASTON MARTIN ONE-77 (2011) BATTERY CABLES, CABIN PARTS DIAGRAM")
-part-diagram-18.0008.webp "ASTON MARTIN ONE-77 (2011) BATTERY CABLES, ENGINE BAY PARTS DIAGRAM")
-part-diagram-18.0009.webp "ASTON MARTIN ONE-77 (2011) BATTERY CABLES, REAR PARTS DIAGRAM")
-part-diagram-18.0010.webp "ASTON MARTIN ONE-77 (2011) ENGINE BAY HARNESS PARTS DIAGRAM")
-part-diagram-18.0011.webp "ASTON MARTIN ONE-77 (2011) DOOR HARNESS PARTS DIAGRAM")
-part-diagram-18.0012.webp "ASTON MARTIN ONE-77 (2011) IP HARNESS PARTS DIAGRAM")
-part-diagram-18.0013.webp "ASTON MARTIN ONE-77 (2011) ACCELERATOR PEDAL LINK HARNESS PARTS DIAGRAM")
-part-diagram-18.0014.webp "ASTON MARTIN ONE-77 (2011) TRANSMISSION HARNESS PARTS DIAGRAM")
-part-diagram-18.0022.webp "ASTON MARTIN ONE-77 (2011) ECU ASSEMBLY PARTS DIAGRAM")
-part-diagram-19.0034.webp "ASTON MARTIN ONE-77 (2011) ANTI-THEFT SENSORS & SWITCHES PARTS DIAGRAM")
-part-diagram-19.0036.webp "ASTON MARTIN ONE-77 (2011) MASS MOVEMENT SENSOR PARTS DIAGRAM")
-part-diagram-19.0038.webp "ASTON MARTIN ONE-77 (2011) RKE PARTS DIAGRAM")
-part-diagram-19.0054.webp "ASTON MARTIN ONE-77 (2011) NAVIGATION DISPLAY PARTS DIAGRAM")
-part-diagram-19.0062.webp "ASTON MARTIN ONE-77 (2011) TRACKER PARTS DIAGRAM")
-part-diagram-19.0066.webp "ASTON MARTIN ONE-77 (2011) ELECTRONIC DOOR MODULE PARTS DIAGRAM")
-part-diagram-19.0078.webp "ASTON MARTIN ONE-77 (2011) SECURITY SOUNDER PARTS DIAGRAM")
-part-diagram-19.0080.webp "ASTON MARTIN ONE-77 (2011) GPS ANTENNA PARTS DIAGRAM")
-part-diagram-19.0086.webp "ASTON MARTIN ONE-77 (2011) WIPER CONTROL MODULE PARTS DIAGRAM")
-part-diagram-19.0098.webp "ASTON MARTIN ONE-77 (2011) TYRE PRESSURE MODULE PARTS DIAGRAM")
-part-diagram-19.0130.webp "ASTON MARTIN ONE-77 (2011) PI-SHURLOCK CONTROLLER PARTS DIAGRAM")
-part-diagram-19.0146.webp "ASTON MARTIN ONE-77 (2011) MEMORY STICK PARTS DIAGRAM")
-part-diagram-00.0028.webp "ASTON MARTIN ONE-77 (2011) EMERGENCY EQUIPMENT PARTS DIAGRAM")
-part-diagram-00.0101.webp "ASTON MARTIN ONE-77 (2011) EXTERIOR LABELS PARTS DIAGRAM")
-part-diagram-00.0102.webp "ASTON MARTIN ONE-77 (2011) INTERIOR LABELS PARTS DIAGRAM")
-part-diagram-00.0103.webp "ASTON MARTIN ONE-77 (2011) UNDERBONNET LABELS PARTS DIAGRAM")
-part-diagram-00.0104.webp "ASTON MARTIN ONE-77 (2011) OWNERS GUIDE PARTS DIAGRAM")
-part-diagram-0101.0000.webp "ASTON MARTIN ONE-77 (2011) MAIN TUB PARTS DIAGRAM")
-part-diagram-0101.0008.webp "ASTON MARTIN ONE-77 (2011) REAR V BRACE PARTS DIAGRAM")
-part-diagram-0101.0010.webp "ASTON MARTIN ONE-77 (2011) ENGINE BAY BRACE PARTS DIAGRAM")
-part-diagram-0101.0011.webp "ASTON MARTIN ONE-77 (2011) REAR TUB ASSEMBLY PARTS DIAGRAM")
-part-diagram-0101.0012.webp "ASTON MARTIN ONE-77 (2011) ROOF ASSEMBLY PARTS DIAGRAM")
-part-diagram-0101.0014.webp "ASTON MARTIN ONE-77 (2011) DOOR APERATURE PARTS DIAGRAM")
-part-diagram-0101.0016.webp "ASTON MARTIN ONE-77 (2011) TUB AERO FLOOR PARTS DIAGRAM")
-part-diagram-0101.0018.webp "ASTON MARTIN ONE-77 (2011) SEAT BELTS MOUNTS PARTS DIAGRAM")
-part-diagram-0101.0020.webp "ASTON MARTIN ONE-77 (2011) REAR TRUNK PARTS DIAGRAM")
-part-diagram-0102.0008.webp "ASTON MARTIN ONE-77 (2011) FRONT CROSS PLATE PARTS DIAGRAM")
-part-diagram-0102.0012.webp "ASTON MARTIN ONE-77 (2011) FRONT AERO FLOOR PARTS DIAGRAM")
-part-diagram-0102.0018.webp "ASTON MARTIN ONE-77 (2011) HOOD HINGE SYSTEM PARTS DIAGRAM")
