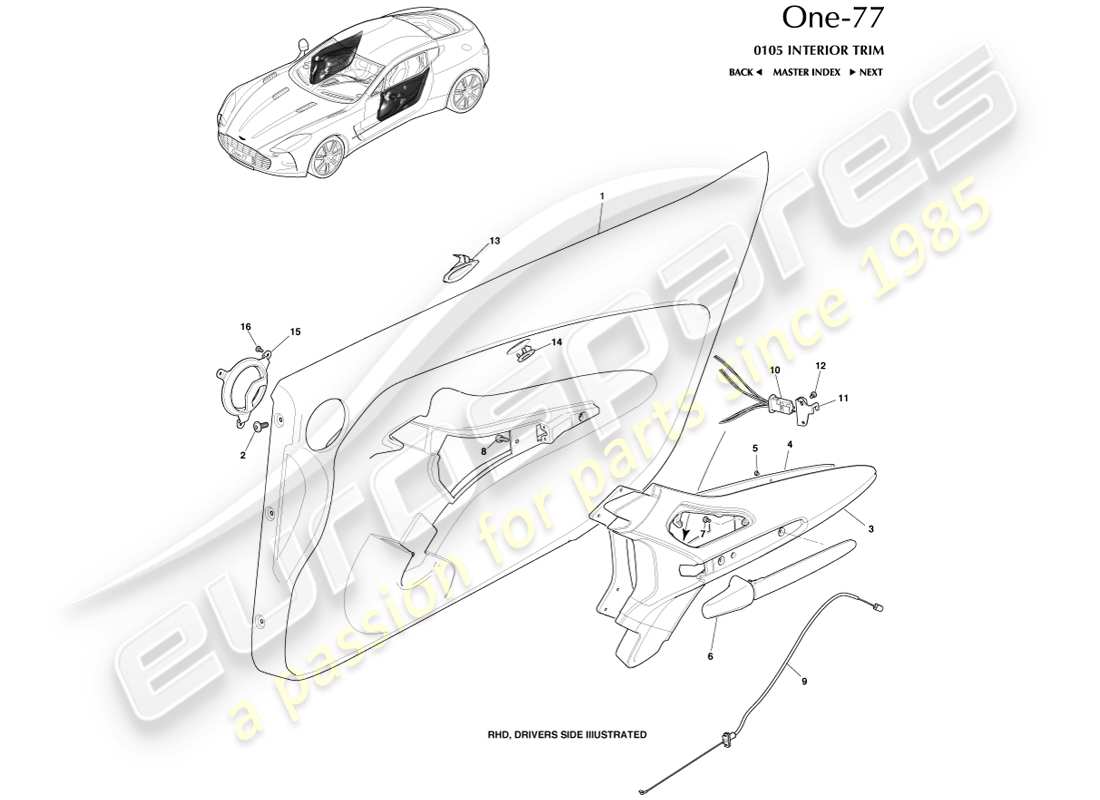

0105.0500 - DOOR TRIM

Aston Martin One-77 (2011) Door Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 12023-08-1081-AD
                        INNER BONDED ASSY, SIDE DOOR, RH
                        from £21,147.23
                        from £21,147.23
                        SD DR BND ASY Genuine Aston Martin - New (to order)
                        # 1
                        MPN: 12023-08-1080-AD
                        INNER BONDED ASSY, SIDE DOOR, LH
                        from £21,147.23
                        from £21,147.23
                        SD DR BND ASY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 703746
                        SCREW, M6 X 16
                        9 per door
                        from £0.47
                        from £0.47
                        SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 12023-14-6431-AC
                        ARMREST ASSY, DRIVERS SIDE, RHD
                        ARMREST ASSEMBLY DRIVERS SIDE, RHD Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 12023-14-6430-AC
                        Armrest Assy, Passengers side, RHD
                        ARMREST ASSEMBLY PASSENGERS SIDE, RHD Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 12023-14-6380-AC
                        Armrest Assy, Drivers Side, LHD
                        ARMREST ASSEMBLY DRIVERS SIDE, LHD Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 12023-14-6381-AC
                        ARMREST ASSY, PASSENGERS SIDE, LHD
                        ARMREST ASSEMBLY PASSENGERS SIDE, LHD Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 12023-14-6392-AE
                        PLATE, CLOSING, DOOR ARMREST
                        from £313.33
                        from £313.33
                        DOOR ARMREST PLATE Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 703178
                        SCREW, M4 X 8
                        3 per armrest
                        from £0.47
                        from £0.47
                        M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 12023-14-6293-AF
                        LEVER ASSY, DOOR RELEASE, RH
                        from £1,145.66
                        from £1,145.66
                        DOOR ARMREST REL Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 12023-14-6292-AE
                        Lever Assy, door release, LH
                        LEVER ASSEMBLY DOOR RELEASE, LH Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 700963
                        SCREW, M4 X 8
                        2 per lever
                        from £0.47
                        from £0.47
                        SCREW M4X8 PAN HEAD Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 701553
                        SCREW, M6 X 16
                        from £0.47
                        from £0.47
                        SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 12023-14-6218-AF
                        CABLE, DOOR LATCH
                        from £80.17
                        from £80.17
                        DR INT REL LEV CB Genuine Aston Martin - New (to order)
                        # 10
                        MPN: AD43-37-10064
                        SWITCH, DOOR RELEASE
                        from £118.52
                        from £118.52
                        MICROSWITCH, DOOR HANDLE Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 123023-14-6655-AA
                        Bracket, door release switch, RH
                        Bracket, door release switch, RH Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 123023-14-6654-AA
                        Bracket, door release switch, LH
                        Bracket, door release switch, LH Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 704509
                        SCREW, M4 X 8
                        2 per bkt
                        SCREW M4 X 8 Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 12023-14-6377-AD
                        Trim Sub Assy, RHS
                        TRIM SUB ASSEMBLY RHS Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 12023-14-6376-AF
                        Trim Sub Assy, LHS
                        TRIM SUB ASSEMBLY LHS Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 12023-14-6221-AE
                        Bezel, door AMB light, RHS
                        Bezel, door AMB light, RHS Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 12023-14-6220-AE
                        Bezel, door AMB light, LHS
                        Bezel, door AMB light, LHS Genuine Aston Martin - New (to order)
                        # 15
                        MPN: AY93-C18978-AA
                        GRILL, DOOR SPEAKER, RH
                        from £554.58
                        from £554.58
                        FRONT DR SPKR GRL R Genuine Aston Martin - New (to order)
                        # 15
                        MPN: AY93-C18978-AA
                        GRILL, DOOR SPEAKER, LH
                        from £554.58
                        from £554.58
                        FRONT DR SPKR GRL R Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 703170
                        SCREW, M4 X 8
                        3 per grill
                        from £1.25
                        from £1.25
                        SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
