aston martin one-77 (2011) load compartment trim parts diagram

0105.0504 - Load Compartment Trim

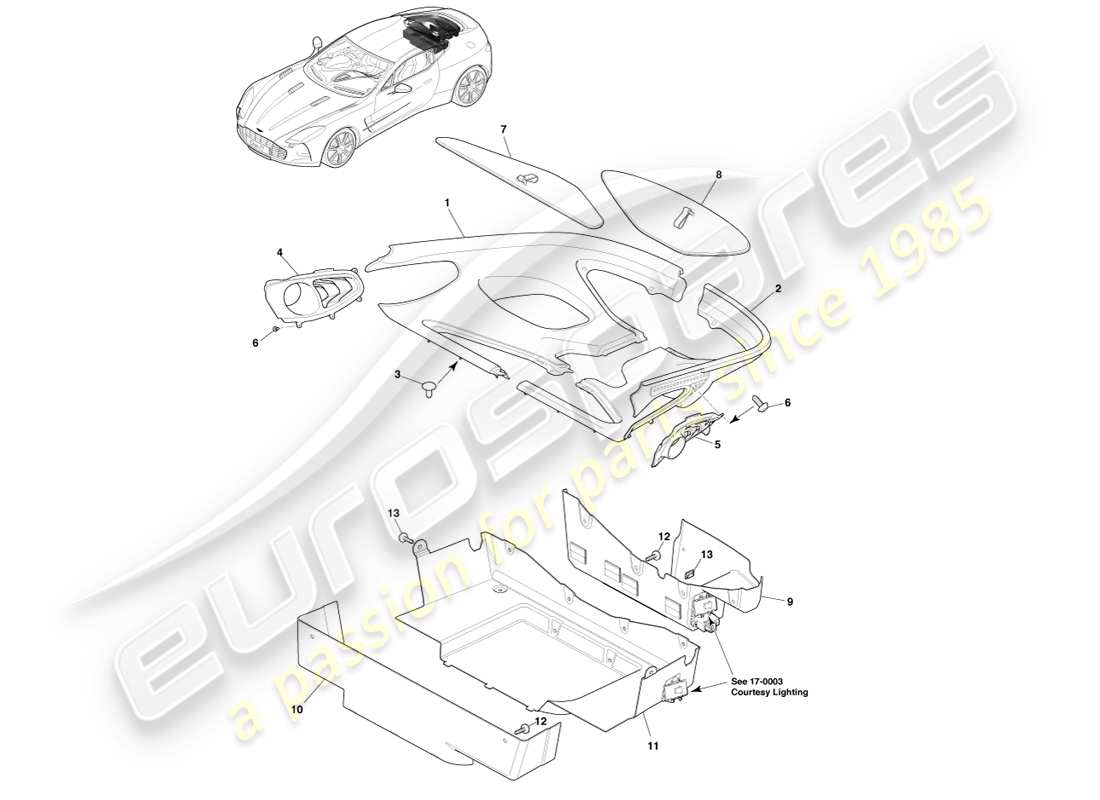

Aston Martin One-77 (2011) Load Compartment Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 12023-14-6348-AA
                        PARCEL SHELF, REAR ENVIRONMENT, RH
                        PARCEL SHELF, REAR ENVIRONMENT, RH Genuine Aston Martin - New (to order)
                        # 2
                        MPN: 12023-14-6349-AA
                        PARCEL SHELF, REAR ENVIRONMENT, LH
                        PARCEL SHELF, REAR ENVIRONMENT, LH Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 12023-14-6488-AA
                        FIXING, FIR TREE
                        3 per shelf
                        from £0.47
                        from £0.47
                        FIRTREE FTB064 Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 12023-14-6499-AC
                        SPEAKER GRILL, REAR RH
                        SPEAKER GRILL, REAR RH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 12023-14-6498-AC
                        SPEAKER GRILL, REAR LH
                        SPEAKER GRILL, REAR LH Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 701441-PK
                        SCREW, 4.2X13 WASHER HEAD
                        4 per grill
                        from £1.31
                        from £1.31
                        SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 12023-14-6364-AD
                        LID ASSY, FRONT
                        LID ASSEMBLY FRONT Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 12023-14-6356-AD
                        LID ASSY, REAR
                        LID ASSEMBLY REAR Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 12023-14-6208-AF
                        Stowage Box Assy, Rear
                        STOWAGE BOX ASSEMBLY REAR Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 12023-14-6204-AC
                        STOWAGE BOX FRONT, REAR ENVMT
                        from £165.11
                        from £165.11
                        REAR ENVMT FWD S Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 12023-14-6202-AC
                        STOWAGE BOX ASSY, FORWARD, REAR ENVMT
                        STOWAGE BOX ASSEMBLY FORWARD, REAR ENVMT Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 6G33-FA0115-AB-PK
                        SCREW, M6 X20
                        from £12.00
                        from £12.00
                        This part replaces part number 6G33-FA0115-AB
                        SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 12023-14-5035-AA
                        Bezel, USB Input
                        from £83.50
                        from £83.50
                        BEZEL USB INPUT Genuine Aston Martin - New (to order)
