Aston Martin One-77 (2011) Sparco Sports Seat Parts Diagram

0110.0060 - Sparco Sports Seat

Aston Martin One-77 (2011) Sparco Sports Seat Parts Diagram

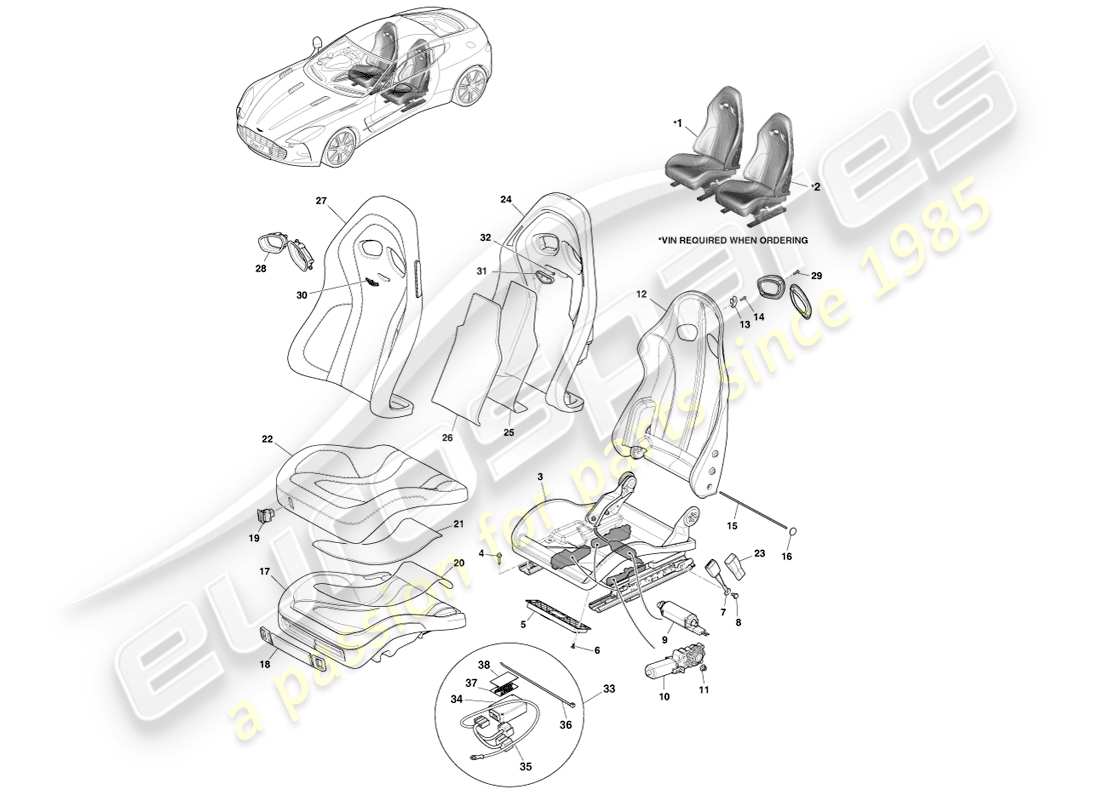

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 1
      MPN: 12023-14-6741-AG
      FRONT SEAT, TRIMMED ASSY
      order by VIN no.
      # 2
      MPN: 12023-14-66742-AH
      FRONT SEAT, TRIMMED ASSY
      order by VIN no.
      # 3
      MPN: 12023-14-6709-AB
      SEAT BASE ASSY
      1 per seat assy
      from £370.11
      from £370.11
      # 4
      MPN: 702687
      SCREW M8X30 HEX HD
      4 per seat assy
      # 5
      MPN: AD43-14C249-AA
      MODULE ECU, SEAT
      1 per seat assy
      # 6
      MPN: 701581
      FASTENER, FIR TREE
      4 per seat assy
      # 7
      MPN: 4G43-613K22-BD
      BUCKLE ASSY, SEAT BELT
      1 per seat assy
      from £166.54
      from £166.54
      # 8
      -
      SCREW, 7/16 UNF, SEAT BELT BUCKLE
      # 9
      MPN: 12023-14-6414-AC
      MOTOR ASSY, SEAT INCLINE
      1 per seat base assy
      # 10
      MPN: 4G43-74-10127
      KIT, SQUAB MOTOR
      3 per seat base assy
      from £88.67
      from £88.67
      # 11
      -
      NUT, HEX FLG HD
      # 12
      MPN: 12023-14-6744-AA
      SHELL, SEAT BACK RH
      # 12
      MPN: 12023-14-6703-AA
      SHELL, SEAT BACK LH
      # 13
      MPN: 9G43-18564-AA
      HOOK, COAT
      1 per seat assy
      from £3.98
      from £3.98
      # 14
      MPN: 6G33-SS106209-AB
      SCREW, M6X20
      1 per seat assy
      from £0.47
      from £0.47
      # 15
      MPN: 12023-14-6713-AA
      ROD, CONNECTOR
      1 per seat assy
      # -
      MPN: 12023-14-6715-AA
      CIRCLIP
      2 per seat assy
      # 16
      MPN: 12023-14-5045
      COVER, CONNECTOR ROD
      2 per seat assy
      # 17
      MPN: 12023-14-6630-AA
      FOAM, SEAT BASE
      1 per seat assy
      # 18
      MPN: 12023-14-6587-AA
      HOUSING, SEAT STRAP
      1 per seat assy
      # 19
      MPN: AY93-14D764-AA
      SWITCH, HEATED SEAT
      1 per seat assy
      from £180.73
      from £180.73
      # 20
      MPN: 7G43-14D698-AC
      ELEMENT, SEAT BASE HEATER
      1 per seat assy
      from £191.81
      from £191.81
      # 21
      MPN: 12023-14-6712-AA
      FOAM INSERT, SEAT BASE
      1 per seat assy
      # 22
      MPN: 12023-14-6408-ACW
      COVER ASSY, FRONT SEAT CUSHION
      1 per seat assy
      # 23
      MPN: 12023-14-6564-AAW
      COVER, SEAT BELT BUCKLE
      1 per seat assy
      # -
      MPN: 12023-14-6717-AA
      LOCTITE
      SEAT BELT COVER
      # 24
      MPN: 12023-14-6632-AG
      FOAM, SEAT BACK
      1 per seat assy
      # 25
      MPN: 12023-14-6704-AA
      ELEMENT, SEAT BACK HEATER
      1 per seat assy
      # 26
      MPN: 12023-14-6705-AA
      FOAM INSERT, SEAT BACK
      1 per seat assy
      # 27
      MPN: 12023-14-5038-ACW
      COVER ASSY, FRONT SEAT SQUAB RHS
      # 27
      MPN: 12023-14-6406-ACW
      COVER ASSY, FRONT SEAT SQUAB LHS
      # 28
      MPN: 12023-14-5044-ACW
      SEAT BELT LOOPS FRT/ REAR AND LEFT/RIGHT
      NB see individual parts listed below
      # 29
      MPN: 704509
      SCREW M4X8MM
      4 per seat belt loop kit
      # 30
      MPN: 12023-14-6570-AA
      BADGE, SEAT
      1 per seat assy
      from £61.61
      from £61.61
      # 31
      MPN: 12023-14-6571-AC
      BACK PLATE, SEAT BADGE
      1 per seat assy
      from £70.11
      from £70.11
      # 32
      MPN: 700986-PK
      NUT M4
      2 per seat badge
      Supersession
      Supersession
      # 33
      MPN: FG43-632B22-AA
      SERVICE KIT, MODULE, SEAT HEATER
      See QN-01-0026, January 2015
      from £85.36
      from £85.36
      # 34
      MPN: FG43-18B512-AA
      SUPERVISOR MODULE, SEAT HEATER
      Part of kit #33
      from £106.51
      from £106.51
      # 35
      MPN: FG43-14B510-AA
      HARNESS, SEAT SUPERVISOR MODULE
      Part of kit #33
      from £22.28
      from £22.28
      # 36
      MPN: 4G43-N02091-AB
      CABLE TIE
      Part of kit #33
      from £0.47
      from £0.47
      # 37
      MPN: 6102600572
      VELCRO LOOPS, 50X50
      Part of kit #33
      # 38
      MPN: 6102600505
      VELCRO HOOKS, 50X50
      Part of kit #33
      # -
      MPN: 610207095
      TAPE, DOUBLE SIDED
      # -
      MPN: 610260051
      VELCRO LOOP
      from £4.11
      from £4.11
      # -
      MPN: 610260050
      VELCRO HOOK
      from £128.42
      from £128.42
      # -
      MPN: 610260105
      VELCRO LOOP (WHITE)
      # -
      MPN: 61026024
      VELCRO LOOP 50X10MM
      # -
      MPN: 4G43-6021-AB
      CLIP, SEAT EDGE FIXING
      16 per seat assy
      # -
      MPN: 12023-14-6410-AB
      Seat belt loop, Left hand front
      GREY
      # -
      MPN: 12023-14-6410-BB
      Seat belt loop, Left hand front
      Silver
      # -
      MPN: 12023-14-6410-CB
      Seat belt loop, Left hand front
      Black
      # -
      MPN: 12023-14-6410-DB
      Seat belt loop, Left hand front
      Blue
      # -
      MPN: 12023-14-6410-EB
      Seat belt loop, Left hand front
      Grey/ Ruthenium
      # -
      MPN: 12023-14-6410-FB
      Seat belt loop, Left hand front
      Silver/ Ruthenium
      # -
      MPN: 12023-14-6410-GB
      Seat belt loop, Left hand front
      Black/ Ruthenium
      # -
      MPN: 12023-14-6410-HB
      Seat belt loop, Left hand front
      Blue/ Ruthenium
      # -
      MPN: 12023-14-6410-JB
      Seat belt loop, Left hand front
      Grey/ Gold
      # -
      MPN: 12023-14-6410-KB
      Seat belt loop, Left hand front
      Silver/ Gold
      # -
      MPN: 12023-14-6410-LB
      Seat belt loop, Left hand front
      Black/ Gold
      # -
      MPN: 12023-14-6410-MB
      Seat belt loop, Left hand front
      Blue/ Gold
      # -
      MPN: 12023-14-6410-NB
      Seat belt loop, Left hand front
      Grey/ Chrome
      # -
      MPN: 12023-14-6410-PB
      Seat belt loop, Left hand front
      Silver/ Chrome
      # -
      MPN: 12023-14-6410-RB
      Seat belt loop, Left hand front
      Black/ Chrome
      # -
      MPN: 12023-14-6410-SB
      Seat belt loop, Left hand front
      Blue/ Chrome
      # -
      MPN: 12023-14-6411-AB
      SEAT BELT LOOP, RIGHT HAND FRONT
      GREY
      # -
      MPN: 12023-14-6411-BB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver
      # -
      MPN: 12023-14-6411-CB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black
      # -
      MPN: 12023-14-6411-DB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue
      # -
      MPN: 12023-14-6411-EB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Ruthenium
      # -
      MPN: 12023-14-6411-FB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Ruthenium
      # -
      MPN: 12023-14-6411-GB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Ruthenium
      # -
      MPN: 12023-14-6411-HB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Ruthenium
      # -
      MPN: 12023-14-6411-JB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Gold
      # -
      MPN: 12023-14-6411-KB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Gold
      # -
      MPN: 12023-14-6411-LB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Gold
      # -
      MPN: 12023-14-6411-MB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Gold
      # -
      MPN: 12023-14-6411-NB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Grey/ Chrome
      # -
      MPN: 12023-14-6411-PB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Silver/ Chrome
      # -
      MPN: 12023-14-6411-RB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Black/ Chrome
      # -
      MPN: 12023-14-6411-SB
      SEAT BELT LOOP, RIGHT HAND FRONT
      Blue/ Chrome
      # -
      MPN: 12023-14-6412-AC
      SEAT BELT LOOP, LEFT HAND REAR
      GREY
      # -
      MPN: 12023-14-6412-BC
      SEAT BELT LOOP, LEFT HAND REAR
      Silver
      # -
      MPN: 12023-14-6412-CC
      SEAT BELT LOOP, LEFT HAND REAR
      Black
      # -
      MPN: 12023-14-6412-DC
      SEAT BELT LOOP, LEFT HAND REAR
      Blue
      # -
      MPN: 12023-14-6412-EC
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Ruthenium
      # -
      MPN: 12023-14-6412-FC
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Ruthenium
      # -
      MPN: 12023-14-6412-GC
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Ruthenium
      # -
      MPN: 12023-14-6412-HC
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Ruthenium
      # -
      MPN: 12023-14-6412-JC
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Gold
      # -
      MPN: 12023-14-6412-KC
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Gold
      # -
      MPN: 12023-14-6412-LC
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Gold
      # -
      MPN: 12023-14-6412-MC
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Gold
      # -
      MPN: 12023-14-6412-NC
      SEAT BELT LOOP, LEFT HAND REAR
      Grey/ Chrome
      # -
      MPN: 12023-14-6412-PC
      SEAT BELT LOOP, LEFT HAND REAR
      Silver/ Chrome
      # -
      MPN: 12023-14-6412-RC
      SEAT BELT LOOP, LEFT HAND REAR
      Black/ Chrome
      # -
      MPN: 12023-14-6412-SC
      SEAT BELT LOOP, LEFT HAND REAR
      Blue/ Chrome
      # -
      MPN: 12023-14-6413-AC
      Seat belt loop, Right hand rear
      GREY
      # -
      MPN: 12023-14-6413-BC
      Seat belt loop, Right hand rear
      Silver
      # -
      MPN: 12023-14-6413-CC
      Seat belt loop, Right hand rear
      Black
      # -
      MPN: 12023-14-6413-DC
      Seat belt loop, Right hand rear
      Blue
      # -
      MPN: 12023-14-6413-EC
      Seat belt loop, Right hand rear
      Grey/ Ruthenium
      # -
      MPN: 12023-14-6413-FC
      Seat belt loop, Right hand rear
      Silver/ Ruthenium
      # -
      MPN: 12023-14-6413-GC
      Seat belt loop, Right hand rear
      Black/ Ruthenium
      # -
      MPN: 12023-14-6413-HC
      Seat belt loop, Right hand rear
      Blue/ Ruthenium
      # -
      MPN: 12023-14-6413-JC
      Seat belt loop, Right hand rear
      Grey/ Gold
      # -
      MPN: 12023-14-6413-KC
      Seat belt loop, Right hand rear
      Silver/ Gold
      # -
      MPN: 12023-14-6413-LC
      Seat belt loop, Right hand rear
      Black/ Gold
      # -
      MPN: 12023-14-6413-MC
      Seat belt loop, Right hand rear
      Blue/ Gold
      # -
      MPN: 12023-14-6413-NC
      Seat belt loop, Right hand rear
      Grey/ Chrome
      # -
      MPN: 12023-14-6413-PC
      Seat belt loop, Right hand rear
      Silver/ Chrome
      # -
      MPN: 12023-14-6413-RC
      Seat belt loop, Right hand rear
      Black/ Chrome
      # -
      MPN: 12023-14-6413-SC
      Seat belt loop, Right hand rear
      Blue/ Chrome
