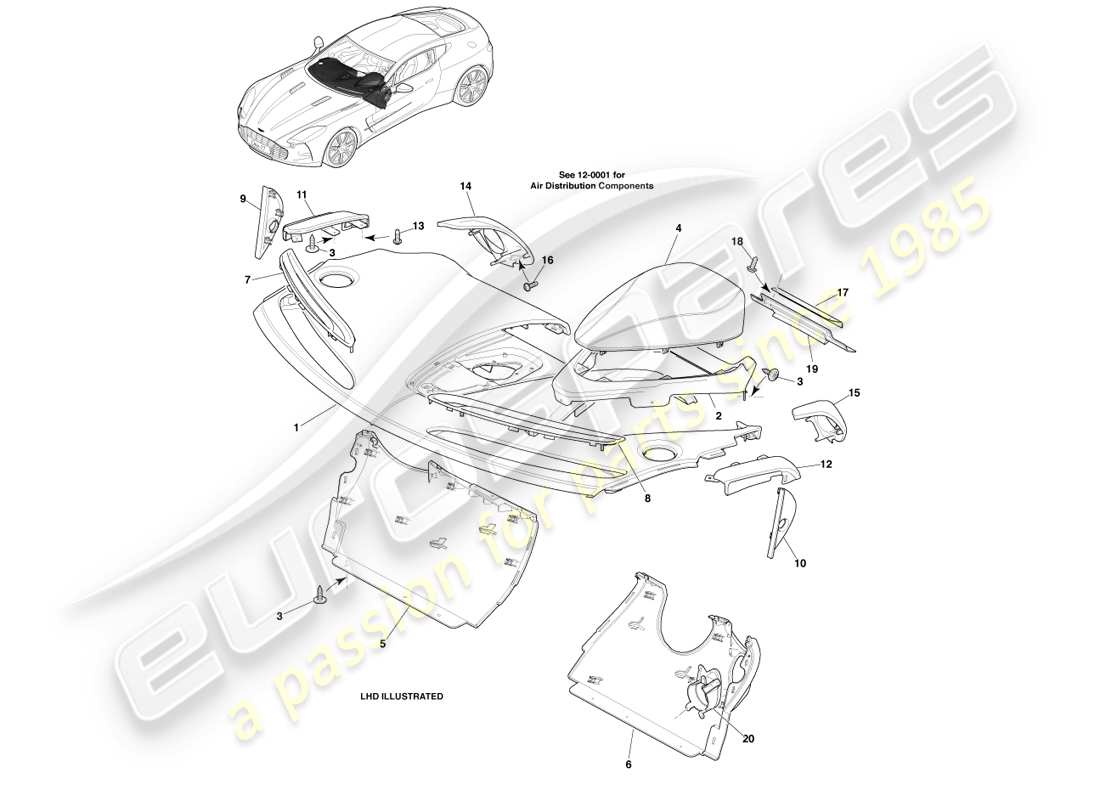

0112.0001 - INSTRUMENT PANEL
Aston Martin One-77 (2011) Instrument Panel Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 12023-14-6246-AG
PANEL ASSY, IP UPPER, LHD
# 1
MPN: 12023-14-6247-AF
PANEL ASSY, IP UPPER, RHD
# 2
MPN: 12023-14-6308-AE
BINNACLE ASSY, INSTRUMENT CLUSTER
# 3
MPN: 701157-PK
SCREW, 4.2 X 16 LARGE WASHER HD
from £1.68
from £1.68
# 4
MPN: 12023-14-6336-AB
CLUSTER HOOD ASSY
# 5
MPN: 12023-14-6068-AD
PANEL ASSY, IP LOWER PASSENGER SIDE, LHD
# 5
MPN: 12023-14-6069-AA
PANEL ASSY, IP LOWER PASSENGER SIDE, RHD
# 6
MPN: 12023-14-6070-AE
PANEL ASSY, IP LOWER DRIVERS SIDE, LHD
# 6
MPN: 12023-14-6071-AA
PANEL ASSY, IP LOWER DRIVERS SIDE, RHD
# 7
MPN: 12023-14-6303-AD
GRILL, WINDSCREEN DEMIST, RH
from £1,033.33
from £1,033.33
# 8
MPN: 12023-14-6302-AD
GRILL, WINDSCREEN DEMIST, LH
from £1,033.33
from £1,033.33
# 9
MPN: 12023-14-6241-AB
END CAP ASSY, RHS
# 10
MPN: 12023-14-6240-AB
END CAP ASSY, LHS
# 11
MPN: 12023-14-6249-AC
PANEL ASSY, IP UPPER OUTER, RHS
# 12
MPN: 12023-14-6248-AC
PANEL ASSY, IP UPPER OUTER, LHS
# 13
MPN: 701157
SCREW, ST4.2 X 16
1 per panel
from £0.47
from £0.47
# 14
MPN: 12023-14-6307-AC
Housing, Outboard Air Regulator, RH
GREY
# 14
MPN: 12023-14-6307-BC
Housing, Outboard Air Regulator, RH
Silver
# 14
MPN: 12023-14-6307-CC
Housing, Outboard Air Regulator, RH
Black
# 14
MPN: 12023-14-6307-DC
Housing, Outboard Air Regulator, RH
Blue
# 14
MPN: 12023-14-6307-EC
Housing, Outboard Air Regulator, RH
Grey and Dark Ruthanium
# 14
MPN: 12023-14-6307-FC
Housing, Outboard Air Regulator, RH
Silver and Dark Ruthanium
# 14
MPN: 12023-14-6307-GC
Housing, Outboard Air Regulator, RH
Black and Dark Ruthanium
# 14
MPN: 12023-14-6307-HC
Housing, Outboard Air Regulator, RH
Blue and Dark Ruthanium
# 14
MPN: 12023-14-6307-JC
Housing, Outboard Air Regulator, RH
Grey and Rose Gold
# 14
MPN: 12023-14-6307-KC
Housing, Outboard Air Regulator, RH
Silver and Rose Gold
# 14
MPN: 12023-14-6307-LC
Housing, Outboard Air Regulator, RH
Black and Rose Gold
# 14
MPN: 12023-14-6307-MC
Housing, Outboard Air Regulator, RH
Blue and Rose Gold
# 14
MPN: 12023-14-6307-NC
Housing, Outboard Air Regulator, RH
Grey and High gloss
# 14
MPN: 12023-14-6307-PC
Housing, Outboard Air Regulator, RH
Silver and High gloss
# 14
MPN: 12023-14-6307-RC
Housing, Outboard Air Regulator, RH
Black and High gloss
# 14
MPN: 12023-14-6307-SC
Housing, Outboard Air Regulator, RH
Blue and High gloss
# 15
MPN: 12023-14-6306-AC
HOUSING, OUTBOARD AIR REGULATOR, LH
Blue and High gloss
# 15
MPN: 12023-14-6306-BC
HOUSING, OUTBOARD AIR REGULATOR, LH
Silver
# 15
MPN: 12023-14-6306-CC
HOUSING, OUTBOARD AIR REGULATOR, LH
Black
# 15
MPN: 12023-14-6306-DC
HOUSING, OUTBOARD AIR REGULATOR, LH
Blue
# 15
MPN: 12023-14-6306-EC
HOUSING, OUTBOARD AIR REGULATOR, LH
Grey and Dark Ruthanium
# 15
MPN: 12023-14-6306-FC
HOUSING, OUTBOARD AIR REGULATOR, LH
Silver and Dark Ruthanium
# 15
MPN: 12023-14-6306-GC
HOUSING, OUTBOARD AIR REGULATOR, LH
Black and Dark Ruthanium
# 15
MPN: 12023-14-6306-HC
HOUSING, OUTBOARD AIR REGULATOR, LH
Blue and Dark Ruthanium
# 15
MPN: 12023-14-6306-JC
HOUSING, OUTBOARD AIR REGULATOR, LH
Grey and Rose Gold
# 15
MPN: 12023-14-6306-KC
HOUSING, OUTBOARD AIR REGULATOR, LH
Silver and Rose Gold
# 15
MPN: 12023-14-6306-LC
HOUSING, OUTBOARD AIR REGULATOR, LH
Black and Rose Gold
# 15
MPN: 12023-14-6306-MC
HOUSING, OUTBOARD AIR REGULATOR, LH
Blue and Rose Gold
# 15
MPN: 12023-14-6306-NC
HOUSING, OUTBOARD AIR REGULATOR, LH
Grey and High gloss
# 15
MPN: 12023-14-6306-PC
HOUSING, OUTBOARD AIR REGULATOR, LH
Silver and High gloss
# 15
MPN: 12023-14-6306-RC
HOUSING, OUTBOARD AIR REGULATOR, LH
Black and High gloss
# 15
MPN: 12023-14-6306-SC
HOUSING, OUTBOARD AIR REGULATOR, LH
Blue and High gloss
# 16
MPN: 703178
SCREW, M4 X 8
3 per Housing
from £0.47
from £0.47
# 17
MPN: 12023-14-6933-AA
GAP HIDER ASSY, INSTRUMENT CLUSTER
# 18
MPN: 701441-PK
SCREW, M4.2 X 13
from £1.35
from £1.35
# 19
MPN: 12023-14-6312-AA
Gap Hider Assy, Steering Column
# 20
MPN: 12023-14-6290-AA
BEZEL, MASTER LIGHT SWITCH, LHD
# 20
MPN: 12023-14-6291-AB
BEZEL, MASTER LIGHT SWITCH, RHD
from £433.01
from £433.01
