aston martin one-77 (2011) transmitter, rke parts diagram

0114.0001 - Transmitter, RKE

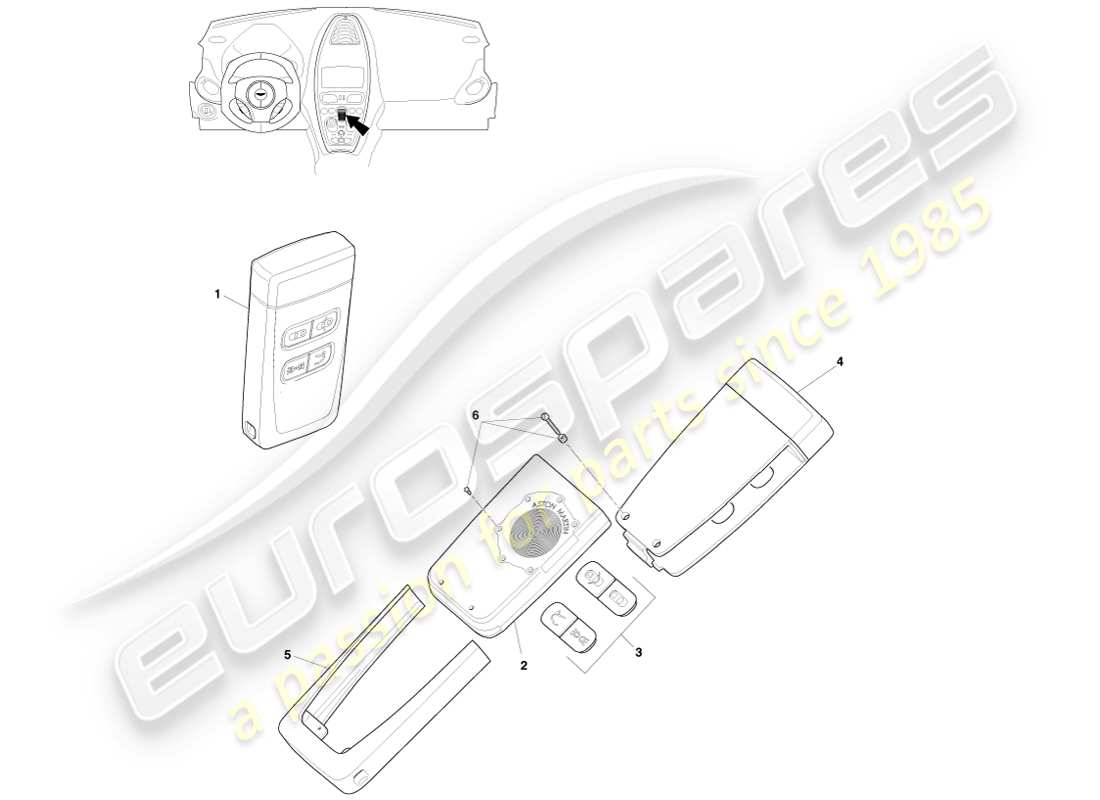

Aston Martin One-77 (2011) Transmitter, RKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 9G43-19H481-AA
              Primary Fob assy - FEDERAL / JAPAN, 315 MHz, glass black
              from £697.52
              from £697.52
              PRIMARY FOB ASSEMBLY - FEDERAL / JAPAN, 315 MHZ, GLASS BLACK Genuine Aston Martin - New (to order)
              # 1
              MPN: 9G43-19H481-BA
              Primary Fob assy - ROW, 433 MHz, glass black
              PRIMARY FOB ASSEMBLY - ROW, 433 MHZ, GLASS BLK Genuine Aston Martin - New (to order)
              # 2
              MPN: 8D33-19H479-AA
              RKE SUB ASSY - FED/JPN, 315 MHZ
              from £825.90
              from £825.90
              RKE BAT COVER Genuine Aston Martin - New (to order)
              # 2
              MPN: 8D33-19H479-BA
              RKE SUB ASSY - ROW, 433 MHZ
              from £825.90
              from £825.90
              RKE SUB ASSEMBLY ROW Genuine Aston Martin - New (to order)
              # 3
              MPN: 8D33-19H478-AA
              BUTTON KIT, LEXAN
              from £194.81
              from £194.81
              RKE LEXAN BUTTON KIT Genuine Aston Martin - New (to order)
              # 4
              MPN: 9G43-19H477-AA
              FOB LENS ASSY, GLASS
              FOB LENS ASSEMBLY GLASS Genuine Aston Martin - New (to order)
              # 5
              MPN: 8D33-19H484-AA
              FOB BODY, STAINLESS STEEL
              FOB BODY, STAINLESS STEEL Genuine Aston Martin - New (to order)
              # 6
              MPN: 8D33-19H480-AA
              SCREW KIT, (BATTERY COVER AND FOB LENS)
              from £50.26
              from £50.26
              SCREW KIT, BATTERY COVER AND LENS Genuine Aston Martin - New (to order)
