0116.0008 - WIPER BLADE ASSEMBLY

Aston Martin One-77 (2011) Wiper Blade Assembly Parts Diagram

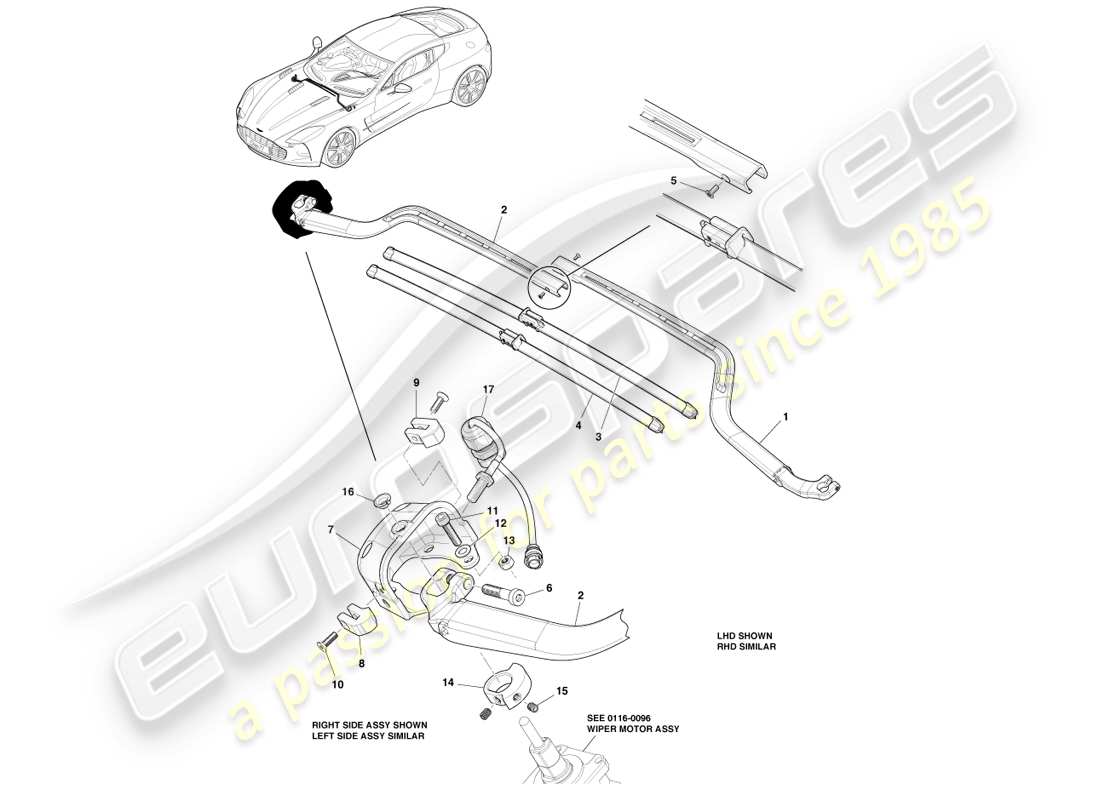

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 12023-09-1362-AF
                ARM ASSY, WINDSHIELD WIPER, DRIVER SIDE LHD
                ARM ASSEMBLY WINDSHIELD WIPER, DRIVER SIDE LHD Genuine Aston Martin - New (to order)
                # 1
                MPN: 12023-09-1363-AA
                ARM ASSY, WINDSHIELD WIPER, DRIVER SIDE RHD
                ARM ASSEMBLY WINDSHIELD WIPER, DRIVER SIDE RHD Genuine Aston Martin - New (to order)
                # 2
                MPN: 12023-09-1364-AF
                ARM ASSY, WINDSHIELD WIPER, PASSENGER SIDE LHD
                from £1,888.51
                from £1,888.51
                PAS BLADE Genuine Aston Martin - New (to order)
                # 2
                MPN: 12023-09-1365-AA
                ARM ASSY, WINDSHIELD WIPER, PASSENGER SIDE RHD
                ARM ASSEMBLY WINDSHIELD WIPER, PASSENGER SIDE RHD Genuine Aston Martin - New (to order)
                # 3
                MPN: AY93-37-10124
                BLADE ASSY, WINDSHIELD WIPER, DRIVER SIDE, LHD
                from £114.13
                from £114.13
                W/BLADE-DRVS SD-LHD Genuine Aston Martin - New (to order)
                # 3
                MPN: AY93-37-10102
                BLADE ASSY, WINDSHIELD WIPER, DRIVER SIDE, RHD
                from £114.13
                from £114.13
                W/BLADE-DRVS SD-RHD Genuine Aston Martin - New (to order)
                # 4
                MPN: AY93-37-10123
                BLADE ASSY, WINDSHIELD WIPER, PASSENGER SIDE, LHD
                from £114.13
                from £114.13
                W/BLADE-PASS SD-LHD Genuine Aston Martin - New (to order)
                # 4
                MPN: AY93-37-10103
                BLADE ASSY, WINDSHIELD WIPER, PASSENGER SIDE, RHD
                from £114.13
                from £114.13
                W/BLADE-PASS SD-RHD Genuine Aston Martin - New (to order)
                # 5
                MPN: 12023-09-6138
                SCREW, M4X10, TORX C/SUNK HD
                2 per Blade
                SCREW, M4X10, TORX C/SUNK HD Genuine Aston Martin - New (to order)
                # 6
                MPN: 51040-080-035
                BOLT, M8X35, HEX SOCKET THIN HD CAP
                1 per Arm assy
                BOLT, M8X35, HEX SOCKET THIN HD CAP Genuine Aston Martin - New (to order)
                # 7
                MPN: 12023-09-1026-AH
                RETAINING BRACKET, WIPER ARM POSITION SENSOR
                RETAINING BRACKET, WIPER ARM POSITION SENSOR Genuine Aston Martin - New (to order)
                # 8
                MPN: 12023-09-1148-AD
                HARD STOP, WINDSHIELD WIPER ARM
                1 per Retaining Bracket
                HARD STOP, WINDSHIELD WIPER ARM Genuine Aston Martin - New (to order)
                # 9
                MPN: 12023-09-1228-AC
                Hard stop Upper, Windshield Wiper Arm
                1 per Retaining Bracket
                Hard stop Upper, Windshield Wiper Arm Genuine Aston Martin - New (to order)
                # 10
                MPN: 51060-050-016
                SCREW, M5X16, HEX SOCKET C/SUNK HD
                1 per Hard Stop
                SCREW, M5X16, HEX SOCKET C/SUNK HD Genuine Aston Martin - New (to order)
                # 11
                MPN: 51050-060-025
                Bolt, M6X25, Socket hd Cap
                4 per Retaining Bracket
                Bolt, M6X25, Socket hd Cap Genuine Aston Martin - New (to order)
                # 12
                MPN: 51416-060-001
                WASHER M6, FLAT ID6.4XOD12
                WASHER M6, FLAT ID6.4XOD12 Genuine Aston Martin - New (to order)
                # 13
                MPN: 51729-060-001
                NUT, M6, HEX, NYLON INSERT
                4 per Retaing Bracket
                NUT, M6, HEX, NYLON INSERT Genuine Aston Martin - New (to order)
                # 14
                MPN: 12023-09-1022-AG
                TRIGGER RING, WIPER ARM
                1 per Arm assy
                TRIGGER RING, WIPER ARM Genuine Aston Martin - New (to order)
                # 15
                MPN: 51260-060-008
                SCREW, M6X8, HEX SOCKET SET, CUP POINT
                2 per Trigger ring
                SCREW, M6X8, HEX SOCKET SET, CUP POINT Genuine Aston Martin - New (to order)
                # 16
                MPN: 12023-09-1050-AA
                BUSHING, WINDSHIELD WIPER ARM HUB
                1 per Wiper Arm Hub
                BUSHING, WINDSHIELD WIPER ARM HUB Genuine Aston Martin - New (to order)
                # 17
                MPN: 12023-09-1350-AD
                SENSOR, WIPER ARM TRIGGER
                from £3,578.99
                from £3,578.99
                TRIGGER SENSOR Genuine Aston Martin - New (to order)
