aston martin one-77 (2011) rear bumper armature parts diagram

0119.0002 - Rear Bumper Armature

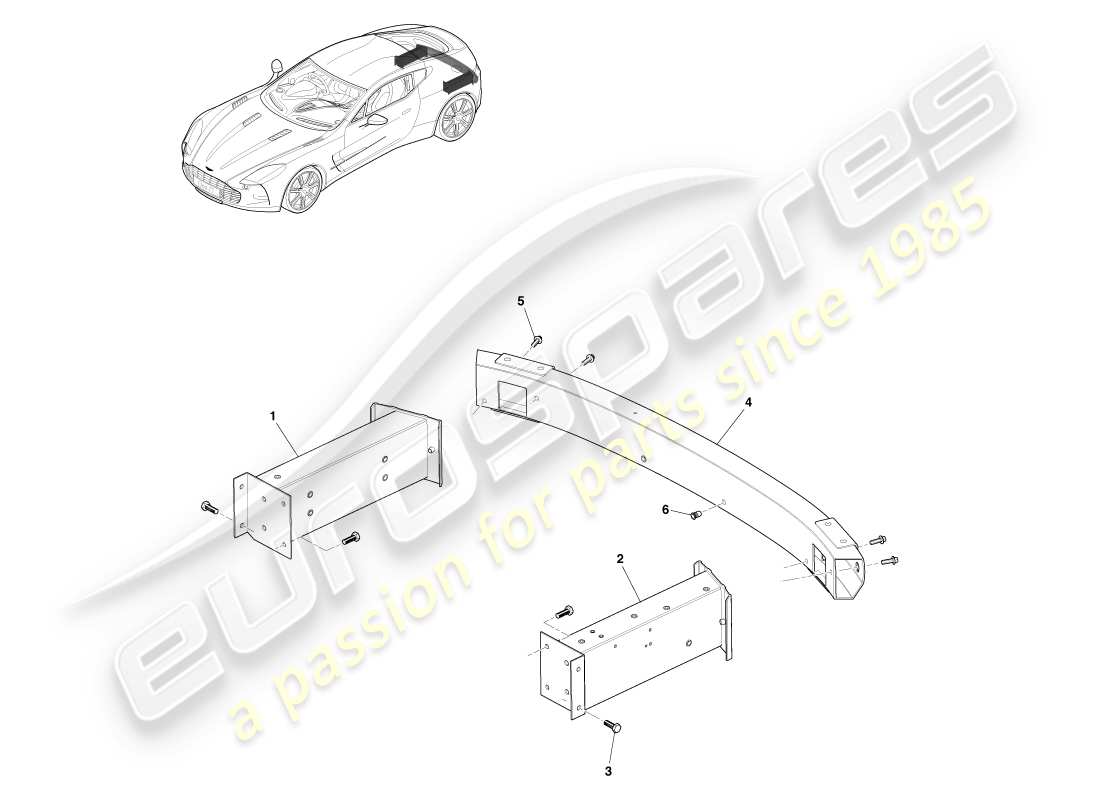

Aston Martin One-77 (2011) Rear Bumper Armature Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 12023-06-1256-AH
              CRASH BOOM ASSY, REAR BUMPER RH
              REAR BMP CRSH BM RH Genuine Aston Martin - New (to order)
              # 2
              MPN: 12023-06-1254-AK
              CRASH BOOM ASSY, REAR BUMPER LH
              REAR BMP CRSH BM LH Genuine Aston Martin - New (to order)
              # 3
              MPN: W500034-S442
              SCREW M10-1.5X30 HEX HD
              SCREW M10-1.5X30 HEX HD Genuine Aston Martin - New (to order)
              # 4
              MPN: 12023-06-1006-AE
              ARMATURE, REAR BUMPER
              BUMPER BEAM ARMATURE Genuine Aston Martin - New (to order)
              # 5
              MPN: 703120
              SCREW M8-1.25X25 HEX FLG HD
              from £3.37
              from £3.37
              SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
              INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
              # 6
              MPN: 6G33-56316-AA
              RIVNUT M8 FLAT HD KNURLED
              from £0.47
              from £0.47
              RIVNUT M8 Genuine Aston Martin - New (to order)
