aston martin one-77 (2011) front structure parts diagram

02.0006 - front structure

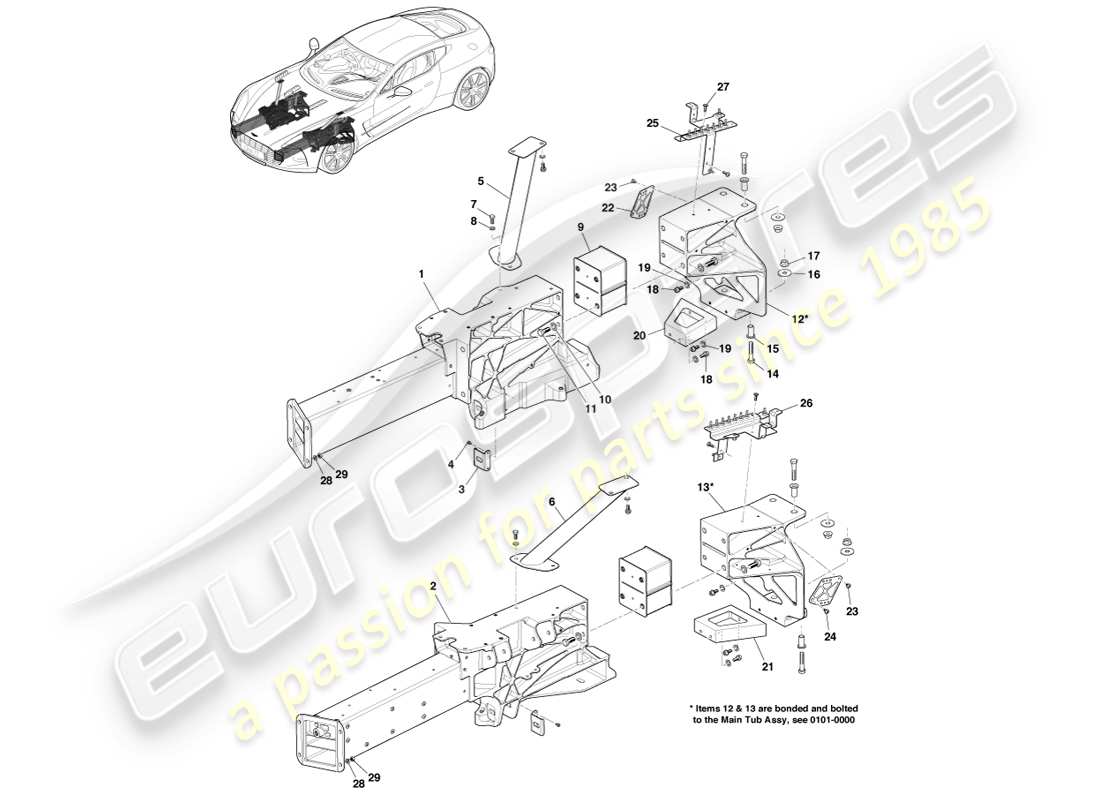

Aston Martin One-77 (2011) Front Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: AY93-21-10090
                          STRUCTURE, FRONT SUSPENSION MOUNTING RH
                          FRONT STRUCTURE-RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: AY93-21-10089
                          STRUCTURE, FRONT SUSPENSION MOUNTING LH
                          from £18,794.62
                          from £18,794.62
                          FRONT STRUCTURE-LH Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 12023-04-1044-AC
                          BRACKET, J- CAM BOLT
                          BRACKET, J- CAM BOLT Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 12023-09-6060-AA
                          SCREW, M5-0.8X8 SHCS
                          2 per J-Bracket
                          SCREW, M5-0.8X8 SHCS Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 12023-04-1059-AC
                          SUPPORT, ENGINE BAY BRACE RH
                          SUPPORT, ENGINE BAY BRACE RH Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 12023-04-1058-AC
                          SUPPORT, ENGINE BAY BRACE LH
                          SUPPORT, ENGINE BAY BRACE LH Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 12023-09-6006
                          SCREW, M8-1.25X20, HEX HD
                          4 per support
                          SCREW, M8-1.25X20, HEX HD Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 12023-09-6144
                          WASHER, ID8.4X OD16X1.6
                          4 per support
                          WASHER, ID8.4X OD16X1.6 Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 12023-04-1042-AH
                          STRUCTURE, SECONDARY CRASH
                          from £2,668.81
                          from £2,668.81
                          SEC CRASH STRUCTURE Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 12023-09-6116
                          WASHER, M12. ID13XOD24X2.5
                          8 per side
                          WASHER, M12. ID13XOD24X2.5 Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 12023-09-6018
                          SCREW, M12-1.75X30, HEX HD
                          8 per side
                          SCREW, M12-1.75X30, HEX HD Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 12023-04-1039-AJ
                          STRUCTURE, FRONT TUB CONNECTION RH
                          Bonded to Main Tub assy
                          STRUCTURE, FRONT TUB CONNECTION RH Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 12023-04-1039-AJ
                          STRUCTURE, FRONT TUB CONNECTION RH
                          Bonded to Main Tub assy
                          STRUCTURE, FRONT TUB CONNECTION RH Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 12023-09-6022
                          SCREW, M12-1.75X60, HEX HD
                          4 per side
                          SCREW, M12-1.75X60, HEX HD Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 12023-04-1066-AB
                          SLEEVE, TOP HAT
                          4 per side
                          TOP HAT SLEEVE Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 12023-09-6110-AA
                          WASHER, FLAT ID13XOD40X2.5
                          4 per side
                          WASHER, FLAT ID13XOD40X2.5 Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 12023-09-6088-AA
                          NUT, M12X1.75 HEX FLG
                          4 per side
                          NUT, M12X1.75 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 18
                          MPN: 12023-09-6062-AA
                          SCREW, M8-1.25X20 SHCS
                          6 per side
                          from £1.20
                          from £1.20
                          M8 - 1.25 X 20 Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 12023-09-6112-AA
                          WASHER, ID8.4XOD16X1.6
                          6 per side
                          Washer, M8 Flat, ID 8.4 OD 16 Genuine Aston Martin - New (to order)
                          # 20
                          MPN: 12023-04-1041-AC
                          STRUCTURE, UNDER EXHAUST RH
                          STRUCTURE, UNDER EXHAUST RH Genuine Aston Martin - New (to order)
                          # 21
                          MPN: 12023-04-1040-AC
                          STRUCTURE, UNDER EXHAUST LH
                          STRUCTURE, UNDER EXHAUST LH Genuine Aston Martin - New (to order)
                          # 22
                          MPN: 12023-04-1170-AC
                          PLATE, MOUNTING FOR WIRING HARNESS
                          1 per side
                          HRNS BRACKET Genuine Aston Martin - New (to order)
                          # 23
                          MPN: 703278
                          SCREW, M6X10 HEX HD
                          2 per side
                          from £0.47
                          from £0.47
                          BOLT M6X10 HEX FLNG Genuine Aston Martin - New (to order)
                          # 24
                          MPN: 703265
                          SCREW, M6X16 HEX HD
                          LH bracket only
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          # 25
                          MPN: 12023-03-8594-AD
                          BRACKET, ENGINE BAY RH
                          from £116.91
                          from £116.91
                          ENG BAY BRACKET Genuine Aston Martin - New (to order)
                          # 26
                          MPN: 12023-03-8596-AD
                          BRACKET, ENGINE BAY LH
                          from £150.27
                          from £150.27
                          ENG BAY BRACKET Genuine Aston Martin - New (to order)
                          # 27
                          MPN: 703278
                          SCREW, M6X10 HEX HD
                          3 per bracket
                          from £0.47
                          from £0.47
                          BOLT M6X10 HEX FLNG Genuine Aston Martin - New (to order)
                          # 28
                          MPN: 12023-09-6112-AA
                          WASHER, M8 FLAT ID8.4 OD168
                          Washer, M8 Flat, ID 8.4 OD 16 Genuine Aston Martin - New (to order)
                          # 29
                          MPN: 12023-09-6034
                          NUT,M8 - 1.25, HEX CLASS 8
                          NUT,M8 - 1.25, HEX CLASS 8 Genuine Aston Martin - New (to order)
