aston martin one-77 (2011) engine lubrication parts diagram

03.0002 - Engine Lubrication

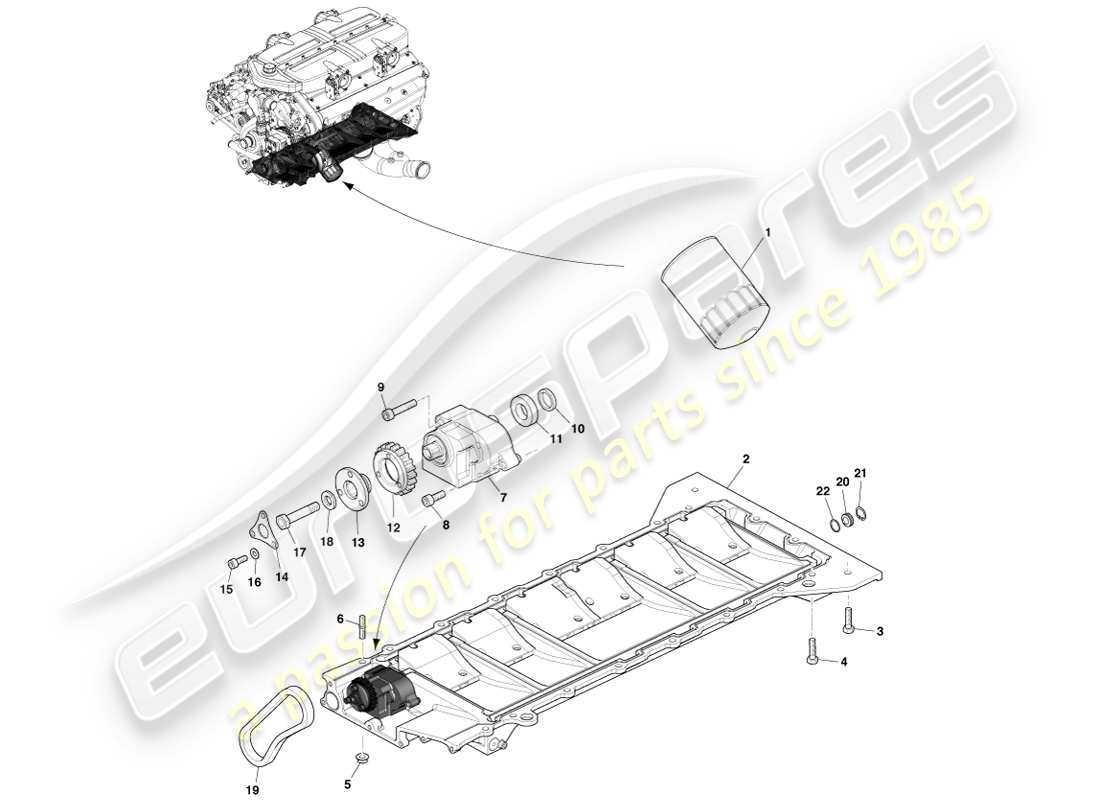

Aston Martin One-77 (2011) Engine Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: AY93-6714-AA
                                              FILTER, OIL
                                              from £36.20
                                              from £36.20
                                              OIL FILTER Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: AY93-04-10042
                                              SUMP ASSY
                                              SUMP ASSEMBLY Genuine Aston Martin - New (to order)
                                              # 4
                                              -
                                              BOLT, SUMP TO BLOCK
                                              # 5
                                              -
                                              NUT, SUMP TO BLOCK
                                              # 6
                                              MPN: 705359
                                              Stud, Sump to Block
                                              Stud, Sump to Block Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: 705358
                                              LOCTITE SEALANT 5970
                                              from £129.80
                                              from £129.80
                                              L/TITE 5970 SLR-50ML Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: AY93-04-10043
                                              Pump, Scavenge
                                              Pump, Scavenge Genuine Aston Martin - New (to order)
                                              # 8
                                              MPN: 705360
                                              Screw, Scavenge Pump
                                              SCREW Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 705361
                                              Screw, Scavenge Pump
                                              Screw, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: AY93-04-10044
                                              O Ring, Scavenge Pump
                                              O Ring, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: AY93-04-10045
                                              SPACER, SCAVENGE PUMP TO SUMP
                                              SPACER, SCAVENGE PUMP TO SUMP Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: AY93-04-10046
                                              Bearing, Scavenge Pump
                                              Bearing, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: AY93-04-10047
                                              Gear, Scavenge Pump
                                              Gear, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: AY93-04-10048
                                              Coupling, Sprocket, Scavenge Pump
                                              Coupling, Sprocket, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: AY93-04-10049
                                              Plate-Nut, Scavenge Pump
                                              Plate-Nut, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 705362
                                              SCREWS, SCAVENGE PUMP
                                              SCREWS, SCAVENGE PUMP Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: 705363
                                              Washers, Scavenge Pump
                                              Washers, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 705364
                                              Bolt, NAS, Scavenge Pump
                                              Bolt, NAS, Scavenge Pump Genuine Aston Martin - New (to order)
                                              # 18
                                              MPN: 705365
                                              COUPLING, WASHER, SCAVENGE PUMP
                                              WASHER Genuine Aston Martin - New (to order)
                                              # 19
                                              MPN: AY93-04-10050
                                              CHAIN, SCAVENGER PUMP DRIVE
                                              CHAIN-OIL PUMP Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: AY93-04-10051
                                              BUNG, SUMP OIL
                                              SUMP PLUG Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: AY93-04-10052
                                              CIRCLIP, SUMP OIL BUNG
                                              from £2.23
                                              from £2.23
                                              CIRCLIP-SUMP PLUG Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: AY93-04-10053
                                              O RING, SUMP OIL BUNG
                                              from £2.22
                                              from £2.22
                                              O RING-SUMP PLUG Genuine Aston Martin - New (to order)
