03.0004 - Fuel Charging & Controls

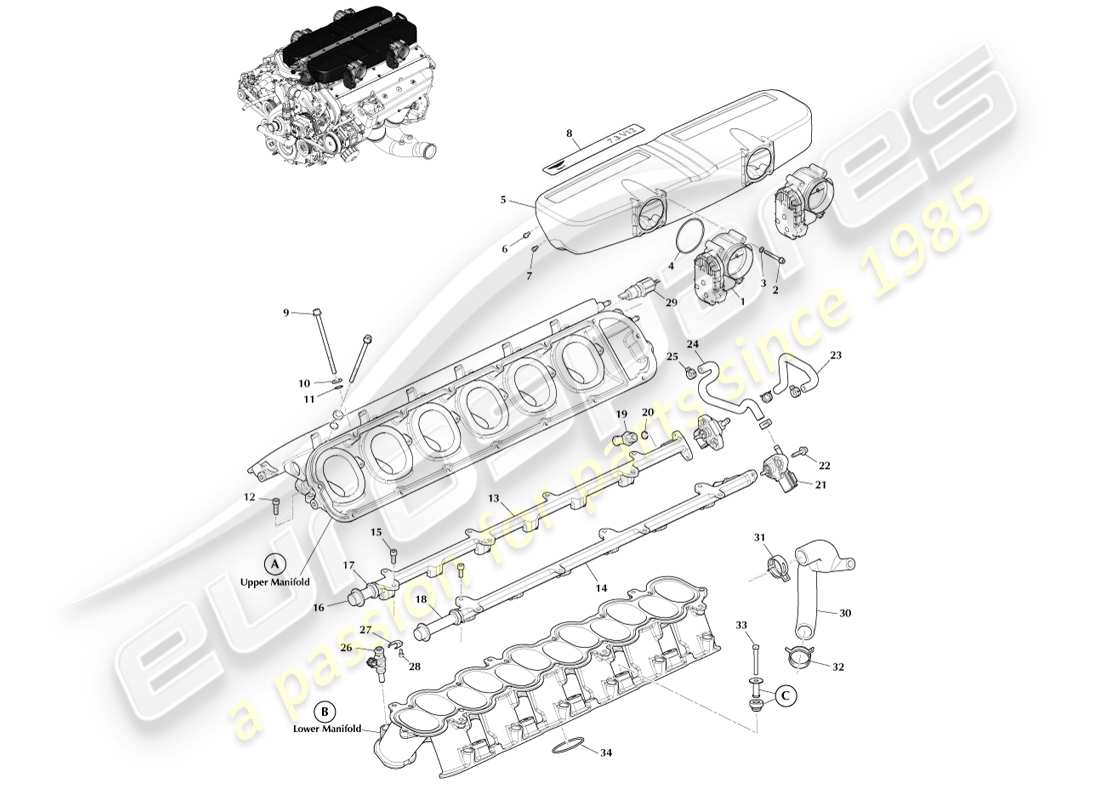

Aston Martin One-77 (2011) Fuel Charging & Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
MPN: AY93-9424-AA
MANIFOLD ASSEMBLY
Matched Assembly, comprising of Upper (A) and Lower (B) and fastening parts (C)
from £9,740.21
from £9,740.21
# 1
MPN: 1R12-08-10079
THROTTLE BODY, 68MM
from £219.44
from £219.44
# 2
MPN: 705379
SCREW, THROTTLE BODY
# 3
MPN: 705380
WASHER, THROTTLE BODY
# 4
MPN: 1R12-08-10317
O RING, THROTTLE BODY
Supersession
Supersession
# 5
MPN: AY93-08-10066
COVERS, PLENUM
# -
-
O RING CORD, PLENUM COVER
# -
-
SEALANT LOCTITE 5970, PLENUM COVER
# 6
MPN: 705382
BOLTS, PLENUM COVER
# 7
MPN: 705383
SCREWS, PLENUM COVER
from £9.97
from £9.97
# 8
MPN: AY93-08-10067
BADGE, ENGINE 7.3 V12
# 9
MPN: 705384
SCREWS, UPPER MANIFOLD
# 10
MPN: 705385
WASHERS, UPPER MANIFOLD
# 11
MPN: 705386
O RING, UPPER MANIFOLD SCREWS
# 12
MPN: 705387
SCREW, UPPER MANIFOLD FRONT/ REAR
# 13
MPN: AY93-08-10068
FUEL RAIL, RH
# 14
MPN: AY93-08-10069
Fuel Rail, LH
# 15
MPN: AY93-07-10039
SCREW, FUEL RAILS
from £27.62
from £27.62
# 16
MPN: AY93-08-10070
DAMPER, FUEL
# 17
MPN: AY93-08-10072
ADAPTOR, FUEL RH
# 18
MPN: AY93-08-10071
ADAPTOR, FUEL LH
# -
-
O RING, FUEL ADAPTORS
# 19
MPN: AY93-08-10073
CONNECTOR, FUEL
# 20
MPN: 705389
O RING, FUEL CONNECTOR
# 21
MPN: AY93-08-10074
Sensor, Pressure
# 22
MPN: 703026
SCREW, M5X16, HEX FLANGED
PRESSURE SENSOR
from £0.47
from £0.47
# 23
MPN: AY93-08-10076
HOSE, VACUUM
RH Pressure Sensor
from £181.83
from £181.83
# 24
MPN: AY93-08-10075
HOSE, VACUUM
LH Pressure Sensor
from £181.83
from £181.83
# 25
MPN: 705390
CLIPS, VACUUM HOSES
from £5.72
from £5.72
# 26
MPN: AY93-9F593-AA
INJECTOR, FUEL
# -
-
O RING SEAL SET, FUEL INJECTOR (2 X O RINGS)
1 pack per Injector
# 27
MPN: AY93-08-10078
PLATE, FUEL INJECTOR
# 28
MPN: 705371
SCREW, FUEL INJECTOR
# 29
MPN: AY93-08-10079
SENSOR, AIR TEMPERATURE
# -
-
TUBE AND CARTRIDGE ASSY - JOHN GUEST
Not illustrated
# 30
MPN: AY93-3937-AA
HOSE, BREATHER
from £276.43
from £276.43
# 31
MPN: AY93-10231301-CA
CLIP
Hose to Manifold
from £3.31
from £3.31
# 32
MPN: AY93-10231301-DA
CLIP
Hose to PCV
from £3.31
from £3.31
# 33
MPN: 702852
BOLT, M6X1.0X53, HEX
from £8.10
from £8.10
# 34
MPN: AY93-8527-PA
O RING, MANIFOLD TO CYLINDER HEAD
from £6.81
from £6.81
