aston martin one-77 (2011) air charging parts diagram

03.0026 - Air Charging

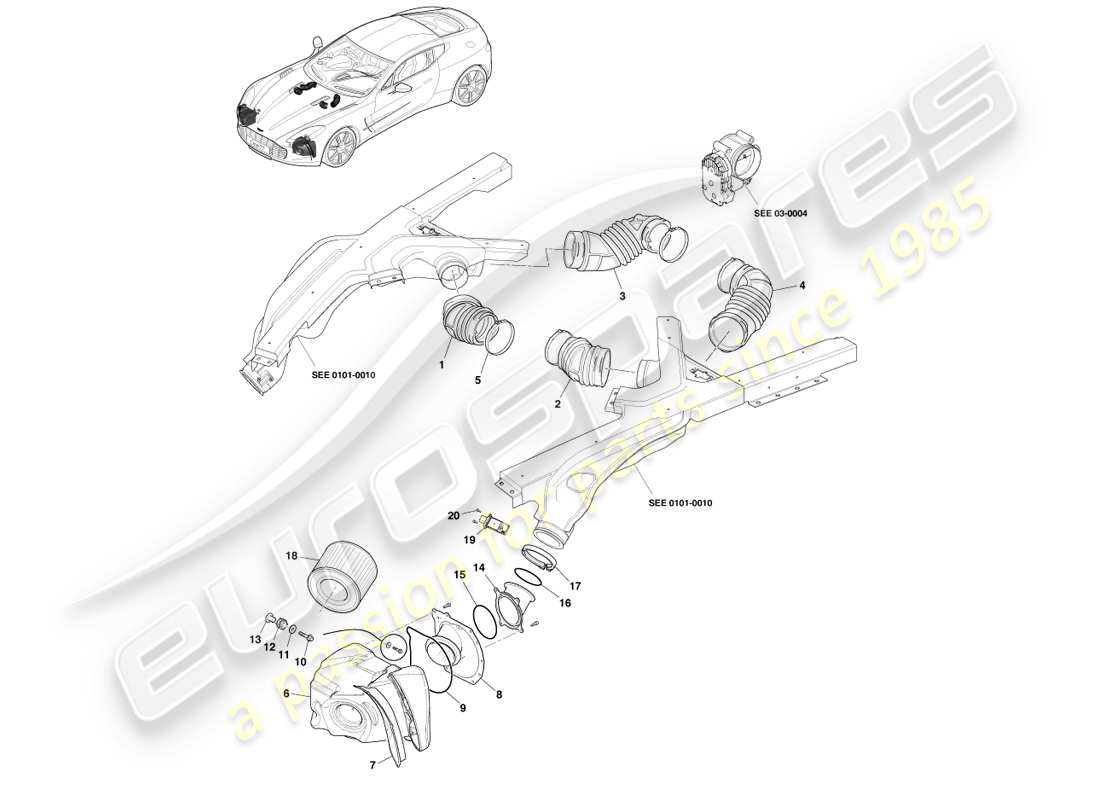

Aston Martin One-77 (2011) Air Charging Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: AY93-9C623-DA
                                          DUCT ASSY, SHORT, AIRFLOW TO THROTTLE BODY (CLEAN) RH
                                          from £609.78
                                          from £609.78
                                          SHRT AIR DUCT RH Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: AY93-9C623-CA
                                          DUCT ASSY, SHORT, AIRFLOW TO THROTTLE BODY (CLEAN) LH
                                          from £609.78
                                          from £609.78
                                          SHRT AIR DUCT LH Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: AY93-9C623-AA
                                          DUCT ASSY, LONG, AIRFLOW TO THROTTLE BODY (CLEAN) RH, LONG
                                          from £806.48
                                          from £806.48
                                          LNG AIR DUCT RH Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: AY93-9C623-BA
                                          DUCT ASSY, LONG, AIRFLOW TO THROTTLE BODY (CLEAN) LH
                                          from £806.48
                                          from £806.48
                                          LNG AIR DUCT LH Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 4G43-9N832-AA
                                          CLAMP, AIR DUCT ASSY
                                          from £14.63
                                          from £14.63
                                          CLMP ASY-A/CLNR HOS Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 12023-03-7752-AB
                                          AIRBOX ASSY, ENGINE LH
                                          from £2,039.33
                                          from £2,039.33
                                          AIRBOX LH Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 12023-03-7753-AB
                                          AIRBOX ASSY, ENGINE RH
                                          from £2,039.33
                                          from £2,039.33
                                          AIRBOX RH Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: AY93-9A675-BA
                                          DUCT, RAM AIR (DIRTY) LH
                                          from £1,845.16
                                          from £1,845.16
                                          RAM DRTY AIR LH Genuine Aston Martin - New (to order)
                                          # 7
                                          MPN: AY93-9A675-AA
                                          DUCT, RAM AIR (DIRTY) RH
                                          from £1,845.16
                                          from £1,845.16
                                          RAM DRTY AIR RH Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 12023-03-7754-AA
                                          BACKPLATE, ENGINE AIRBOX ASSY LH
                                          from £637.51
                                          from £637.51
                                          AIRBOX PLATE LH Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 12023-03-7755-AA
                                          BACKPLATE, ENGINE AIRBOX ASSY RH
                                          from £637.51
                                          from £637.51
                                          AIRBOX PLATE RH Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: AY93-9C664-AA
                                          GASKET, BACKPLATE TO AIRBOX
                                          from £23.27
                                          from £23.27
                                          GASKET-AIR CLNR Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: 703199
                                          BOLT M6X30, HEX FLG
                                          from £0.47
                                          from £0.47
                                          BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 4G43-9697-CA
                                          ISOLATOR, ENGINE AIRBOX
                                          from £8.32
                                          from £8.32
                                          GROMMET Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 4G43-5144-AA
                                          SPACER, ENGINE AIRBOX ISOLATOR
                                          from £8.98
                                          from £8.98
                                          SPACER Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 12023-03-7756-AA
                                          TUBE, MAF EXTENSION, ENGINE AIRBOX LH
                                          from £541.61
                                          from £541.61
                                          EXT MAFS TUBE LH Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 12023-03-7757-AA
                                          TUBE, MAF EXTENSION, ENGINE AIRBOX RH
                                          from £541.61
                                          from £541.61
                                          EXT MAFS TUBE RH Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: AY93-6C704-BA
                                          GASKET, AIR INLET MAF TUBE
                                          from £27.00
                                          from £27.00
                                          GSKT AIR INLET MAF Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: AY93-6C704-AA
                                          GASKET, AIR INLET MAF TUBE
                                          from £21.33
                                          from £21.33
                                          GSKT AIR INLET MAF Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: AY93-6N811-AA
                                          CLAMP, MAF TUBE TO ENG BAY BRACE
                                          CLAMP, MAF TUBE TO ENG BAY BRACE Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: AY93-4600-BA
                                          FILTER, ENGINE AIRBOX ASSY
                                          from £99.36
                                          from £99.36
                                          FILTER-AIR CLEANER Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 3L3A-12B579-BA
                                          SENSOR, MAF
                                          SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: 6G33-010507-BA
                                          SCREW M4X10 CAP HD
                                          SCREW M4X10 CAP HD Genuine Aston Martin - New (to order)
