aston martin one-77 (2011) rear brake system parts diagram

06.0006 - Rear Brake System

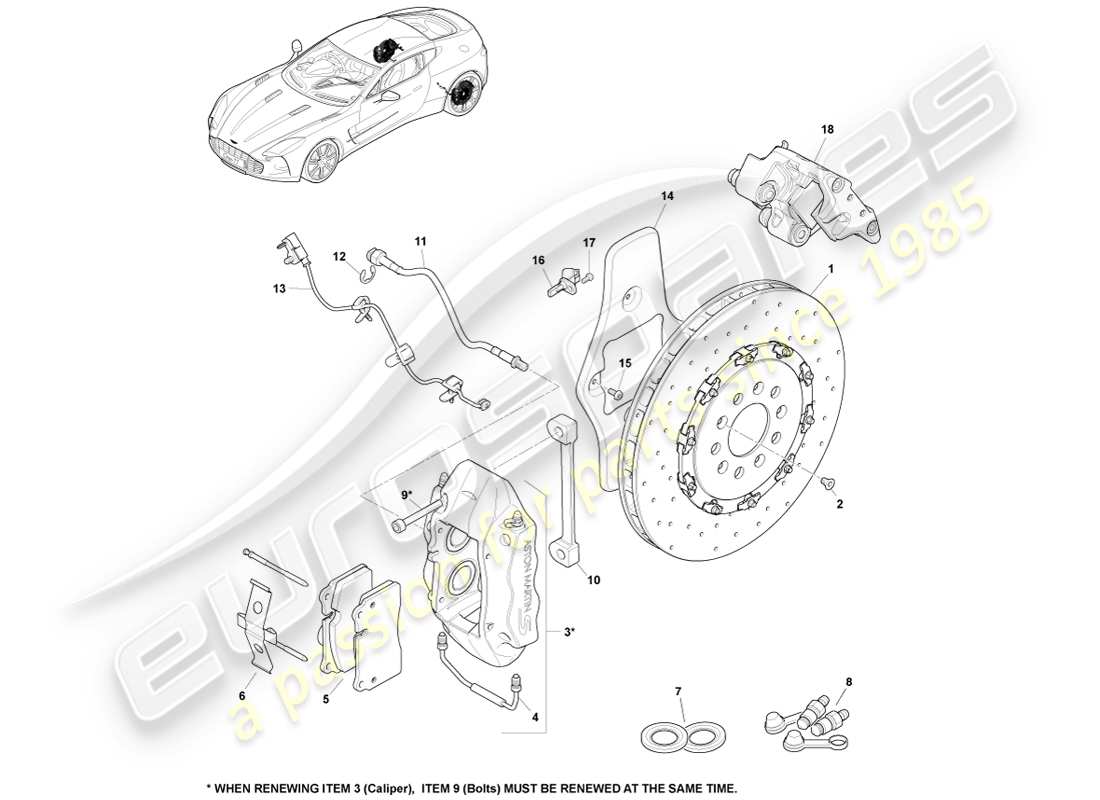

Aston Martin One-77 (2011) Rear Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: AY93-2C026-AA
                          BRAKE DISC, REAR
                          Unbedded
                          from £4,845.57
                          from £4,845.57
                          DISC, BRAKE Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-2N389-AA
                          SCREW, RETAINING BRAKE DISC
                          from £0.47
                          from £0.47
                          SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
                          # 3
                          MPN: AY93-28-10008
                          CALIPER,REAR LH, WITHOUT PADS INC BOLTS
                          Special order, contact with VIN
                          from £1,153.31
                          from £1,153.31
                          CALIPER ASSEMBLY REAR LH Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-28-10009
                          CALIPER,REAR RH, WITHOUT PADS INC BOLTS
                          Special order, contact with VIN
                          from £1,153.31
                          from £1,153.31
                          CALIPER ASSEMBLY REAR RH Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C465-AA
                          CALIPER,REAR LH, WITHOUT PADS INC BOLTS
                          GREY
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR LH GRY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C464-AA
                          CALIPER,REAR RH, WITHOUT PADS INC BOLTS
                          GREY
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR RH GRY Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C465-CA
                          CALIPER,REAR LH, WITHOUT PADS INC BOLTS
                          Black
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR LH BLK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C464-CA
                          CALIPER,REAR RH, WITHOUT PADS INC BOLTS
                          Black
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR RH BLK Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C465-DA
                          CALIPER,REAR LH, WITHOUT PADS INC BOLTS
                          red
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR LH RED Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C464-DA
                          CALIPER,REAR RH, WITHOUT PADS INC BOLTS
                          red
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR RH RED Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C465-EA
                          CALIPER,REAR LH, WITHOUT PADS INC BOLTS
                          Silver
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR LH SVR Genuine Aston Martin - New (to order)
                          # 3
                          MPN: AY93-2C464-EA
                          CALIPER,REAR RH, WITHOUT PADS INC BOLTS
                          Silver
                          from £909.07
                          from £909.07
                          CAL ASSEMBLY REAR RH SVR Genuine Aston Martin - New (to order)
                          # 4
                          -
                          CROSS PIPE, REAR
                          # 5
                          MPN: 8D33-2C562-BA
                          KIT, BRAKE PAD, AXLE SET
                          Unbedded
                          from £597.09
                          from £597.09
                          KIT, BRAKE PADS, AXLE SET Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 8D33-2C588-BA
                          KIT, SPRING AND PIN, REAR PADS
                          1 Kit Per Caliper
                          from £48.54
                          from £48.54
                          KIT PAD SPR & PIN REAR Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 8D33-32610-AA
                          KIT, DUST BOOT, REAR CALIPER
                          1 Kit Per Caliper
                          from £33.44
                          from £33.44
                          REAR DUST BOOT KIT Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 4G43-2C563-AA
                          KIT, BLEED SCREW
                          1 Kit Per Caliper
                          from £10.05
                          from £10.05
                          KIT, BLEED SCREW Genuine Aston Martin - New (to order)
                          # -
                          -
                          CAP, BLEED SCREW
                          1 Kit Per Caliper
                          # 9
                          MPN: 8D33-2C564-AA
                          BOLT, CALIPER TO SPACER
                          from £6.27
                          from £6.27
                          BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
                          # 10
                          MPN: 8D33-2B128-AB
                          SPACER, CALIPER TO KNUCKLE
                          from £150.61
                          from £150.61
                          SPACER, CALIPER TO KNUCKLE Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 6G33-2282-AB
                          HOSE ASSY, BRAKE REAR
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 12
                          MPN: 6G33-JYC10088-AB
                          CLIP
                          from £0.47
                          from £0.47
                          E-CLIP BOWED NOM16MM Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 6G33-2D009-AB
                          PAD WEAR LEAD, REAR
                          from £35.49
                          from £35.49
                          PAD WEAR LEAD REAR Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 8D33-2C029-AA
                          SHIELD, REAR BRAKE DISC LH
                          from £19.30
                          from £19.30
                          SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - New (to order)
                          SHLD- REAR WHEEL DSC BRK Genuine Aston Martin - Used In stock
                          # 14
                          MPN: 8D33-2C028-AA
                          SHIELD, REAR BRAKE DISC RH
                          from £35.09
                          from £35.09
                          SHLD-RR WHEEL DSC BRK Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 4G43-13D026-AA
                          SCREW
                          from £0.47
                          from £0.47
                          SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 4G43-90-10039
                          SENSOR, WHEEL SPEED
                          from £53.20
                          from £53.20
                          SENSOR-ABS Genuine Aston Martin - New (to order)
                          SENSOR-ABS Genuine Aston Martin - Used In stock
                          # 17
                          MPN: 4G43-13D026-BA
                          SCREW
                          from £0.72
                          from £0.72
                          SCREW M5 Genuine Aston Martin - New (to order)
                          # 18
                          MPN: AD43-2K328-BA
                          CALIPER ASSY, PARKBRAKE LH
                          from £1,337.78
                          from £1,337.78
                          CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, LH Genuine Aston Martin - New (to order)
                          # 18
                          MPN: AD43-2K327-BA
                          CALIPER ASSY, PARKBRAKE RH
                          from £1,337.78
                          from £1,337.78
                          CALIPER ASSEMBLY, ELECTRIC PARK BRAKE COMPLETE, RH Genuine Aston Martin - New (to order)
                          # -
                          -
                          BRAKE PAD KIT, AXLE SET WITH FITTINGS
                          # -
                          -
                          BOLT M10X87 HEX FLANGE, SECURES EPB
