09.0018 - EXHAUST MANIFOLDS

Aston Martin One-77 (2011) Exhaust Manifolds Parts Diagram

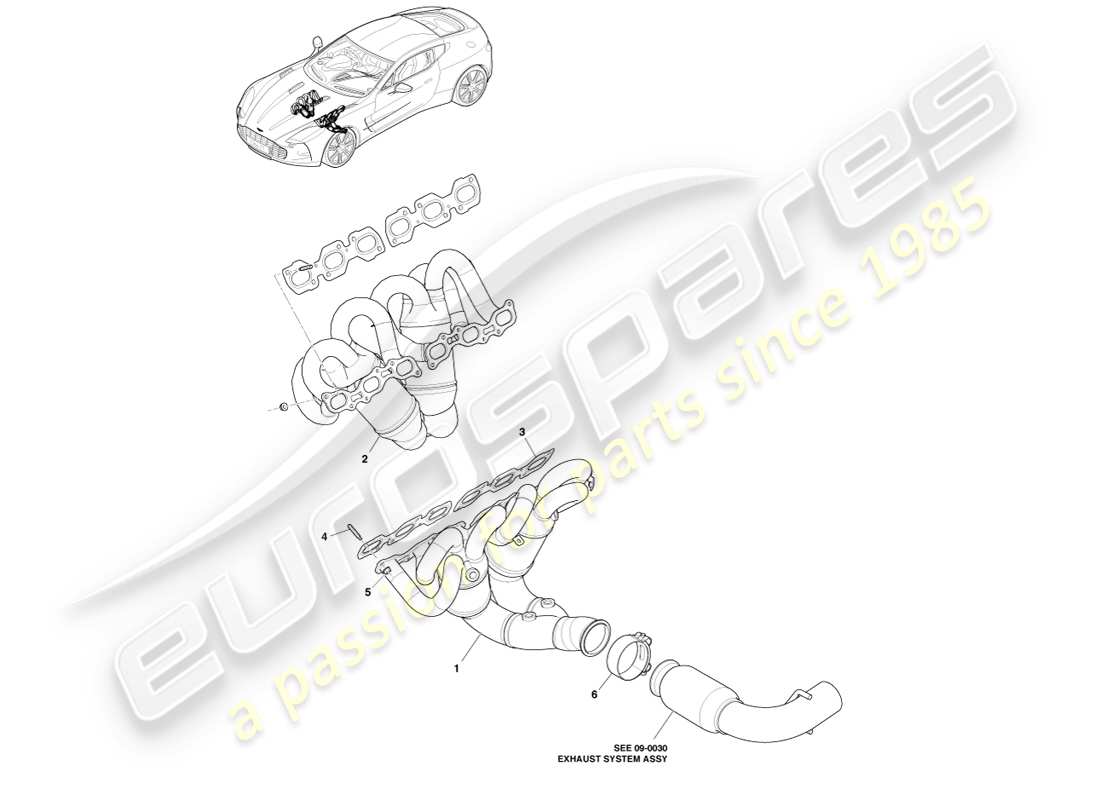

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 12023-03-8794-AF
          MANIFOLD, EXHAUST LH
          MANIFOLD, EXHAUST LH Genuine Aston Martin - New (to order)
          # 2
          MPN: 12023-03-8795-AF
          MANIFOLD, EXHAUST RH
          MANIFOLD, EXHAUST RH Genuine Aston Martin - New (to order)
          # 3
          MPN: 4G43-35-10003
          GASKET, EXHAUST MANIFOLD
          from £29.49
          from £29.49
          GASKET, EXHAUST MANIFOLD Genuine Aston Martin - New (to order)
          # 4
          MPN: AY93-6K064-AA
          STUD, M8X36.5
          2 per Manifold
          STUD, M8X36.5 Genuine Aston Martin - New (to order)
          # 4
          MPN: 703704
          STUD, M8X44 SHOULDER
          10 per Manifold
          from £6.12
          from £6.12
          STUD M8X13.6+16 Genuine Aston Martin - New (to order)
          # 5
          MPN: 697775-PK
          NUT, M8 HEX FLG HD
          12 per Manifold
          from £21.79
          from £21.79
          This part replaces part number 697775
          NUT, M8 HEX FLANGE HD Genuine Aston Martin - New (to order)
          # 6
          MPN: AY93-8287-BA
          CLAMP, EXHAUST 00-00MM
          from £290.73
          from £290.73
          V CLAMP 93.5 OD Genuine Aston Martin - New (to order)
