aston martin one-77 (2011) exhaust system parts diagram

09.0030 - Exhaust System

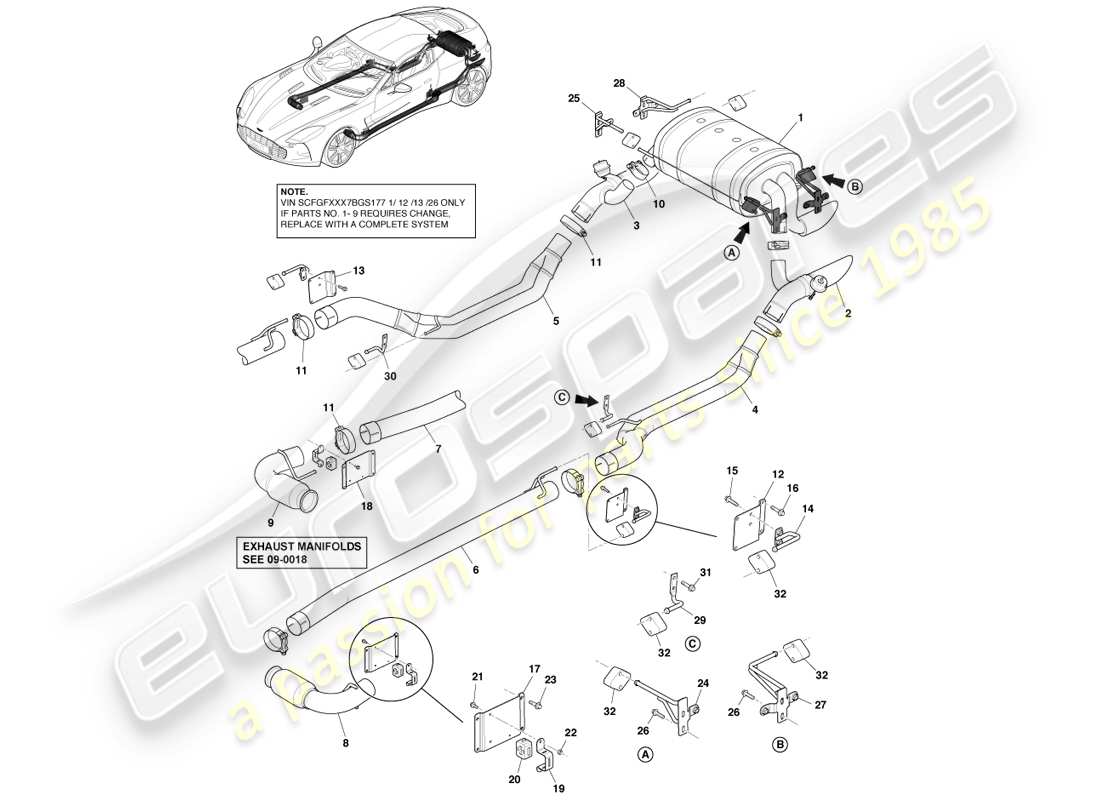

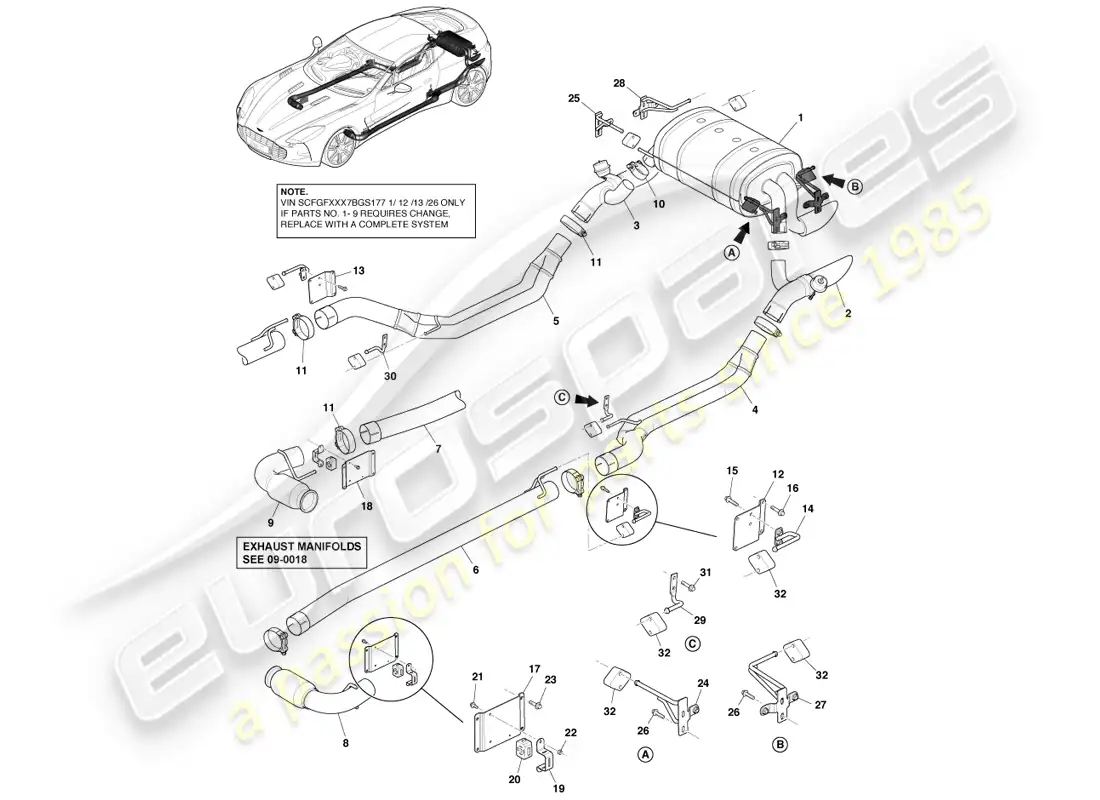

Aston Martin One-77 (2011) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 1
                                                                  MPN: 12023-03-8776-AD
                                                                  MUFFLER ASSY, EXHAUST
                                                                  from £4,535.76
                                                                  from £4,535.76
                                                                  MUFFLER ASSY Genuine Aston Martin - New (to order)
                                                                  # 2
                                                                  MPN: 12023-03-8780-AD
                                                                  BYPASS TUBES & VALVES, EXHAUST LH
                                                                  from £4,226.40
                                                                  from £4,226.40
                                                                  BYPASS LH Genuine Aston Martin - New (to order)
                                                                  # 3
                                                                  MPN: 12023-03-8778-AD
                                                                  BYPASS TUBES & VALVES, EXHAUST RH
                                                                  from £4,226.40
                                                                  from £4,226.40
                                                                  BYPASS RH Genuine Aston Martin - New (to order)
                                                                  # 4
                                                                  MPN: 12023-03-8770-AD
                                                                  PIPE, EXHAUST MAIN LINK LH
                                                                  from £4,166.21
                                                                  from £4,166.21
                                                                  MAIN LINK LH Genuine Aston Martin - New (to order)
                                                                  # 5
                                                                  MPN: 12023-03-8768-AD
                                                                  PIPE, EXHAUST MAIN LINK RH
                                                                  from £4,166.21
                                                                  from £4,166.21
                                                                  MAIN LINK T5 RH Genuine Aston Martin - New (to order)
                                                                  # 6
                                                                  MPN: 12023-03-8774-AD
                                                                  PIPE, EXHAUST MAIN LINK FRONT LH
                                                                  from £527.71
                                                                  from £527.71
                                                                  MAIN LINK PIPE LH Genuine Aston Martin - New (to order)
                                                                  # 7
                                                                  MPN: 12023-03-8772-AD
                                                                  PIPE, EXHAUST MAIN LINK FRONT RH
                                                                  from £527.71
                                                                  from £527.71
                                                                  MAIN LINK PIPE RH Genuine Aston Martin - New (to order)
                                                                  # 8
                                                                  MPN: 12023-03-8766-AD
                                                                  PIPE, EXHAUST LINK, FLEX LH
                                                                  from £2,314.54
                                                                  from £2,314.54
                                                                  LINK PIPE LH T5 Genuine Aston Martin - New (to order)
                                                                  # 9
                                                                  MPN: 12023-03-8764-AD
                                                                  PIPE, EXHAUST LINK, FLEX RH
                                                                  from £2,314.54
                                                                  from £2,314.54
                                                                  LINK PIPE RH T5 Genuine Aston Martin - New (to order)
                                                                  # 10
                                                                  MPN: 12023-03-8784-AA
                                                                  CLAMP, EXHAUST 56-59MM
                                                                  CLAMP, EXHAUST 56-59MM Genuine Aston Martin - New (to order)
                                                                  # 11
                                                                  MPN: 12023-03-8782-AA
                                                                  CLAMP, EXHAUST 75-81MM
                                                                  CLAMP, EXHAUST 75-81MM Genuine Aston Martin - New (to order)
                                                                  # 12
                                                                  MPN: 12023-03-8538-AB
                                                                  PLATE, EXHAUST HANGER REAR LH
                                                                  from £72.22
                                                                  from £72.22
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 13
                                                                  MPN: 12023-03-8540-AB
                                                                  PLATE, EXHAUST HANGER REAR RH
                                                                  from £74.08
                                                                  from £74.08
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 14
                                                                  MPN: 12023-03-8230-AF
                                                                  HANGER, EXHAUST UPPER LH
                                                                  from £177.73
                                                                  from £177.73
                                                                  EXHST HANGER Genuine Aston Martin - New (to order)
                                                                  # 15
                                                                  MPN: 703188
                                                                  SCREW, M8X20 HEX FLG HD
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW M8 X1.25 X 20 Genuine Aston Martin - New (to order)
                                                                  # 16
                                                                  MPN: 703121
                                                                  SCREW, M8X20 HEX FLG HD
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW M8X20 HEX FLG Genuine Aston Martin - New (to order)
                                                                  # 17
                                                                  MPN: 12023-03-8398-AD
                                                                  PLATE, EXHAUST HANGER FRT LH
                                                                  from £125.94
                                                                  from £125.94
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 18
                                                                  MPN: 12023-03-8400-AD
                                                                  PLATE, EXHAUST HANGER FRT RH
                                                                  from £125.94
                                                                  from £125.94
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 19
                                                                  MPN: 4G43-3962-FA
                                                                  BRACKET, EXHAUST ISOLATOR
                                                                  from £9.86
                                                                  from £9.86
                                                                  BRKT-EXH ISLTR Genuine Aston Martin - New (to order)
                                                                  BRKT-EXH ISLTR Genuine Aston Martin - Used In stock
                                                                  With Rubber
                                                                  # 20
                                                                  MPN: 4G43-35-10025
                                                                  ISOLATOR, EXHAUST
                                                                  from £4.77
                                                                  from £4.77
                                                                  EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                                  # 21
                                                                  MPN: 703265
                                                                  SCREW M6X16 HEX FLG HD
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                                  # 22
                                                                  MPN: 703163
                                                                  NUT, M6 HEX FLG
                                                                  from £0.47
                                                                  from £0.47
                                                                  NUT M6 FLG LOCKING Genuine Aston Martin - New (to order)
                                                                  # 23
                                                                  MPN: 703730
                                                                  SCREW, M8X16 HEX FLG
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW-M8X16 HEX FLG8 Genuine Aston Martin - New (to order)
                                                                  # 24
                                                                  MPN: 12023-03-8250-AE
                                                                  HANGER, EXHAUST REAR CRASH CAN MOUNT UPPER LH
                                                                  from £259.24
                                                                  from £259.24
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 25
                                                                  MPN: 12023-03-8252-AE
                                                                  HANGER, EXHAUST REAR CRASH CAN MOUNT UPPER RH
                                                                  from £259.24
                                                                  from £259.24
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 26
                                                                  MPN: 703120
                                                                  SCREW, M8X25 HEX FLG
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                                                  INTERMEDIATE HEAT SHIELD BOLTS (703120) Genuine Ferrari Part - New (to order)
                                                                  # 27
                                                                  MPN: 12023-03-8390-AE
                                                                  HANGER, EXHAUST MUFFLER UPPER LH
                                                                  from £231.46
                                                                  from £231.46
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 28
                                                                  MPN: 12023-03-8392-AE
                                                                  HANGER, EXHAUST MUFFLER UPPER RH
                                                                  from £231.46
                                                                  from £231.46
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 29
                                                                  MPN: 12023-03-8242-AB
                                                                  HANGER, EXHAUST REAR CLEVIS MOUNT UPPER LH
                                                                  from £166.65
                                                                  from £166.65
                                                                  EXHST HANGER Genuine Aston Martin - New (to order)
                                                                  # 30
                                                                  MPN: 12023-03-8244-AB
                                                                  HANGER, EXHAUST REAR CLEVIS MOUNT UPPER RH
                                                                  from £166.65
                                                                  from £166.65
                                                                  EXHST HNGR Genuine Aston Martin - New (to order)
                                                                  # 31
                                                                  MPN: 703730
                                                                  SCREW, M8X16 HEX FLG
                                                                  from £0.47
                                                                  from £0.47
                                                                  SCREW-M8X16 HEX FLG8 Genuine Aston Martin - New (to order)
                                                                  # 32
                                                                  MPN: 4G43-35-10026
                                                                  ISOLATOR, EXHAUST HANGER
                                                                  from £21.41
                                                                  from £21.41
                                                                  EXH RUBBER MOUNT Genuine Aston Martin - New (to order)
                                                                  EXH RUBBER MOUNT Genuine Aston Martin - Used In stock
