09.0052 - Heatshield Subsystem

Aston Martin One-77 (2011) Heatshield Subsystem Parts Diagram

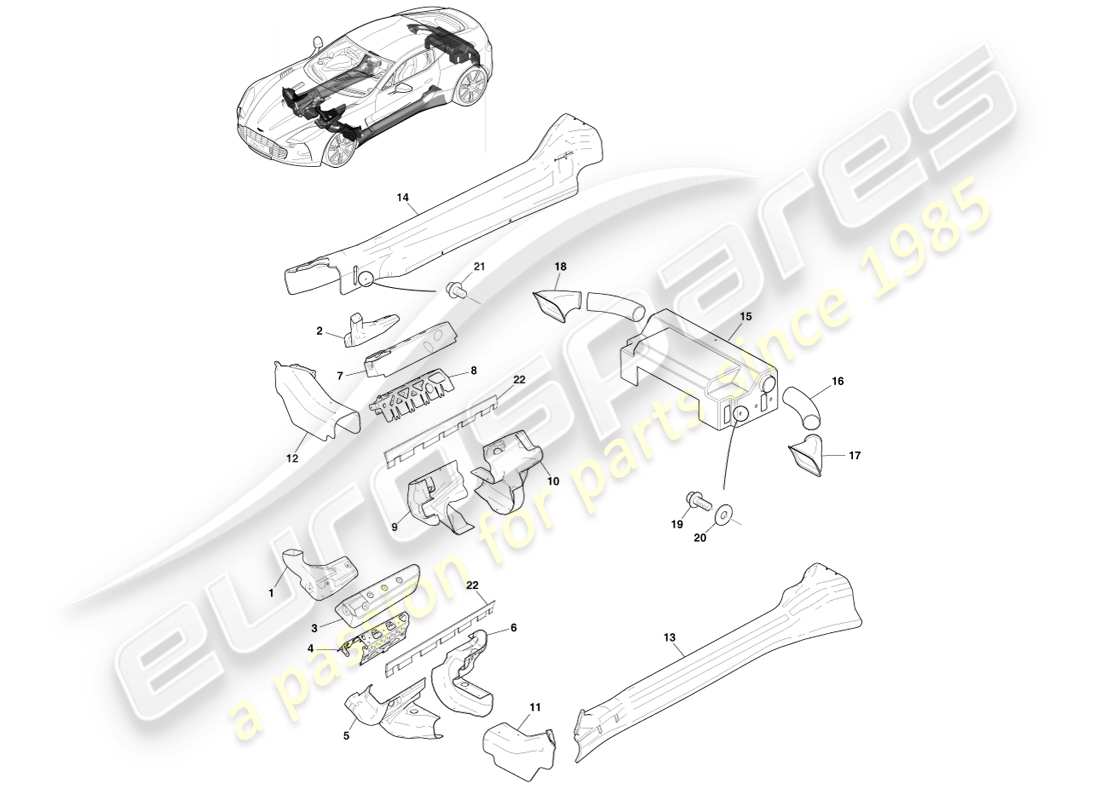

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 12023-03-8643-AA
                                        HEATSHIELD, EXHAUST HEADER RH CHIMNEY
                                        from £3,523.03
                                        from £3,523.03
                                        EXHST HDR HT SHLD CH Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 12023-03-8642-AA
                                        HEATSHIELD, EXHAUST HEADER LH CHIMNEY
                                        from £3,523.03
                                        from £3,523.03
                                        EXHST HDR HT SHLD CH Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 12023-03-8692-AE
                                        HEATSHIELD, EXHAUST HEADER ASSY LH
                                        HEATSHIELD, EXHAUST HEADER ASSEMBLY LH Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: 12023-03-8640-AC
                                        HEATSHIELD, EXHAUST HEADER UPPER LH
                                        HEATSHIELD, EXHAUST HEADER UPPER LH Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: 12023-03-8644-AB
                                        BRACKET, EXHAUST HEADER SUPPORT LH
                                        BRACKET, EXHAUST HEADER SUPPORT LH Genuine Aston Martin - New (to order)
                                        # 5
                                        MPN: 12023-03-8638-AC
                                        HEATSHIELD, EXHAUST HEADER LOWER FRT LH
                                        HEATSHIELD, EXHAUST HEADER LOWER FRONT LH Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 12023-03-8636-AC
                                        HEATSHIELD, EXHAUST HEADER LOWER RR LH
                                        HEATSHIELD, EXHAUST HEADER LOWER REAR LH Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 12023-03-8093-AC
                                        HEATSHIELD, EXHAUST HEADER ASSY RH
                                        from £13,525.91
                                        from £13,525.91
                                        EXST MAN HDR BG ASYR Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 12023-03-8641-AC
                                        HEATSHIELD, EXHAUST HEADER UPPER RH
                                        HEATSHIELD, EXHAUST HEADER UPPER RH Genuine Aston Martin - New (to order)
                                        # 8
                                        MPN: 12023-03-8645-AB
                                        BRACKET, EXHAUST HEADER SUPPORT RH
                                        BRACKET, EXHAUST HEADER SUPPORT RH Genuine Aston Martin - New (to order)
                                        # 9
                                        MPN: 12023-03-8639-AC
                                        HEATSHIELD, EXHAUST HEADER LOWER FRT RH
                                        HEATSHIELD, EXHAUST HEADER LOWER FRONT RH Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: 12023-03-8637-AC
                                        HEATSHIELD, EXHAUST HEADER LOWER RR RH
                                        HEATSHIELD, EXHAUST HEADER LOWER REAR RH Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 12023-03-8322-AA
                                        HEATSHIELD, COLLECTOR LH
                                        from £1,716.15
                                        from £1,716.15
                                        HSHLD LH Genuine Aston Martin - New (to order)
                                        # 12
                                        MPN: 12023-03-8323-AA
                                        HEATSHIELD, COLLECTOR RH
                                        from £1,716.15
                                        from £1,716.15
                                        HSHLD RH Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: 12023-03-8974-AC
                                        HEATSHIELD, SILL LH
                                        from £2,829.30
                                        from £2,829.30
                                        LH SILL INSULATION Genuine Aston Martin - New (to order)
                                        # 14
                                        MPN: 12023-03-8975-AC
                                        HEATSHIELD, SILL RH
                                        from £2,829.30
                                        from £2,829.30
                                        RH SILL INSULATION Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: 12023-13-1038-AL
                                        HEATSHIELD, MUFFLER UPPER
                                        from £5,562.64
                                        from £5,562.64
                                        MUFF HEAT Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: 12023-13-1042-AE
                                        TUBE, MUFFLER VENT
                                        from £165.13
                                        from £165.13
                                        MUFFLER VENT TUBE Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 12023-03-8964-AB
                                        VENT, REAR WHEELARCH LINER LH
                                        VENT, REAR WHEELARCH LINER LH Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 12023-03-8966-AB
                                        VENT, REAR WHEELARCH LINER RH
                                        VENT, REAR WHEELARCH LINER RH Genuine Aston Martin - New (to order)
                                        # 19
                                        MPN: 703121
                                        SCREW, M8X20 HEX FLG HD
                                        Upper Muffler HtShield
                                        from £0.47
                                        from £0.47
                                        SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 20
                                        -
                                        WASHER, 22MM
                                        Upper Muffler HtShield
                                        # 21
                                        MPN: 703206
                                        SCREW, M5X8 HEX FLG HD
                                        Sill HtShields
                                        from £0.94
                                        from £0.94
                                        SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: AY93-9A032-AA
                                        HEATSHIELD, CAM COVER
                                        from £3,181.93
                                        from £3,181.93
                                        HEAT SHIELD CAM COVER Genuine Aston Martin - New (to order)
