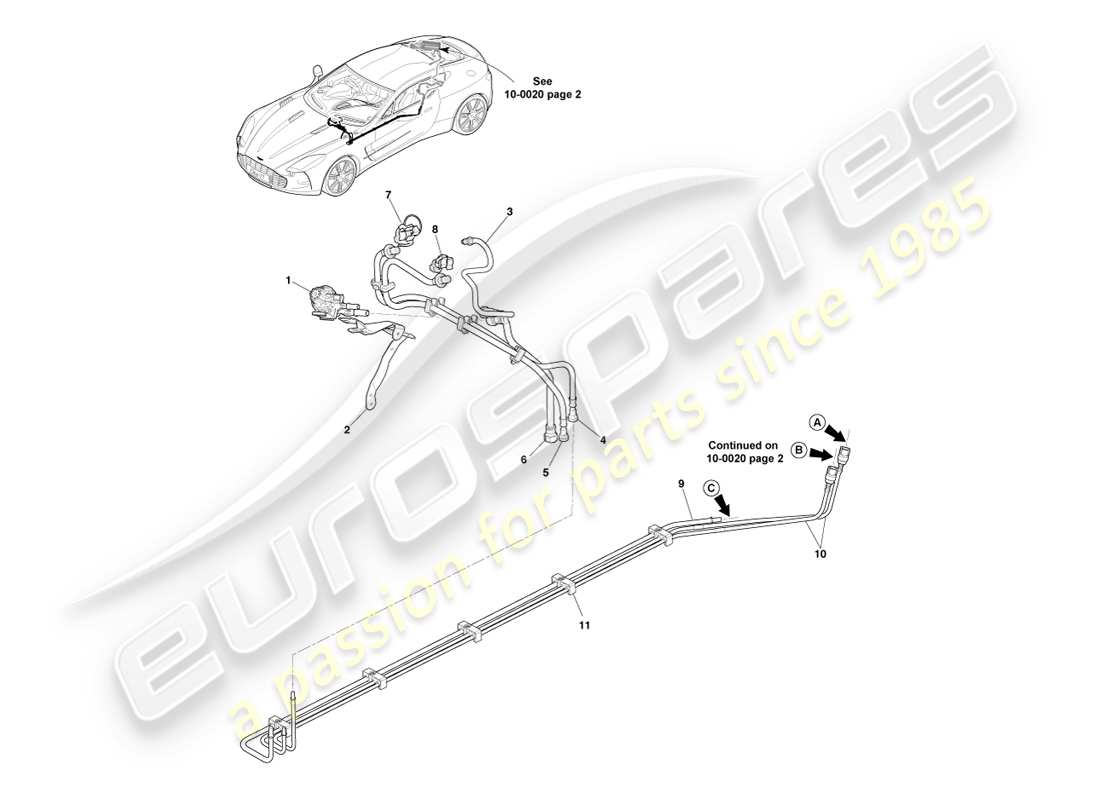

Aston Martin One-77 (2011) Fuel Pipes Parts Diagram

10.0020 - Fuel Pipes

Aston Martin One-77 (2011) Fuel Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 1
                  MPN: 4L24-9G641-BB
                  VALVE ASSY, FUEL
                  from £25.70
                  from £25.70
                  # 2
                  MPN: 12023-03-8494-AB
                  BRACKET, VALVE AND HARNESS
                  from £212.94
                  from £212.94
                  # 3
                  MPN: AY93-9D667-BB
                  TUBE ASSY, FUEL VAPOR STRG CONSTR PRG INLET FRONT
                  from £159.22
                  from £159.22
                  # 4
                  MPN: AY93-9D667-DB
                  TUBE ASSY, FUEL VAPOR STRG CONSTR PRG INLET
                  from £161.09
                  from £161.09
                  # 5
                  MPN: AY93-9F911-BB
                  TUBE ASSY, FUEL MAIN SUPPLY, RH
                  Includes 2 Clips
                  from £1,360.97
                  from £1,360.97
                  # 6
                  MPN: AY93-9F911-AB
                  TUBE ASSY, FUEL MAIN SUPPLY, LH
                  Includes 2 Clips
                  from £1,360.97
                  from £1,360.97
                  # 8
                  MPN: 7X43-9294-AA
                  CLIP AND CLAMP
                  from £2.20
                  from £2.20
                  # 9
                  MPN: AY93-9D667-AA
                  TUBE ASSY, FUEL VAPOR STRG CONSTR PRG INLET
                  from £124.43
                  from £124.43
                  # 10
                  MPN: AY93-9S284-AA
                  TUBE ASSY, FUEL SUPPLY AND VAPER
                  Includes 3 Clips
                  from £604.03
                  from £604.03
                  # 11
                  MPN: 4G43-9293-AA
                  CLIP
                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
