Aston Martin One-77 (2011) STEERING WHEEL ASSEMBLY Parts Diagram

11.0014 - STEERING WHEEL ASSEMBLY

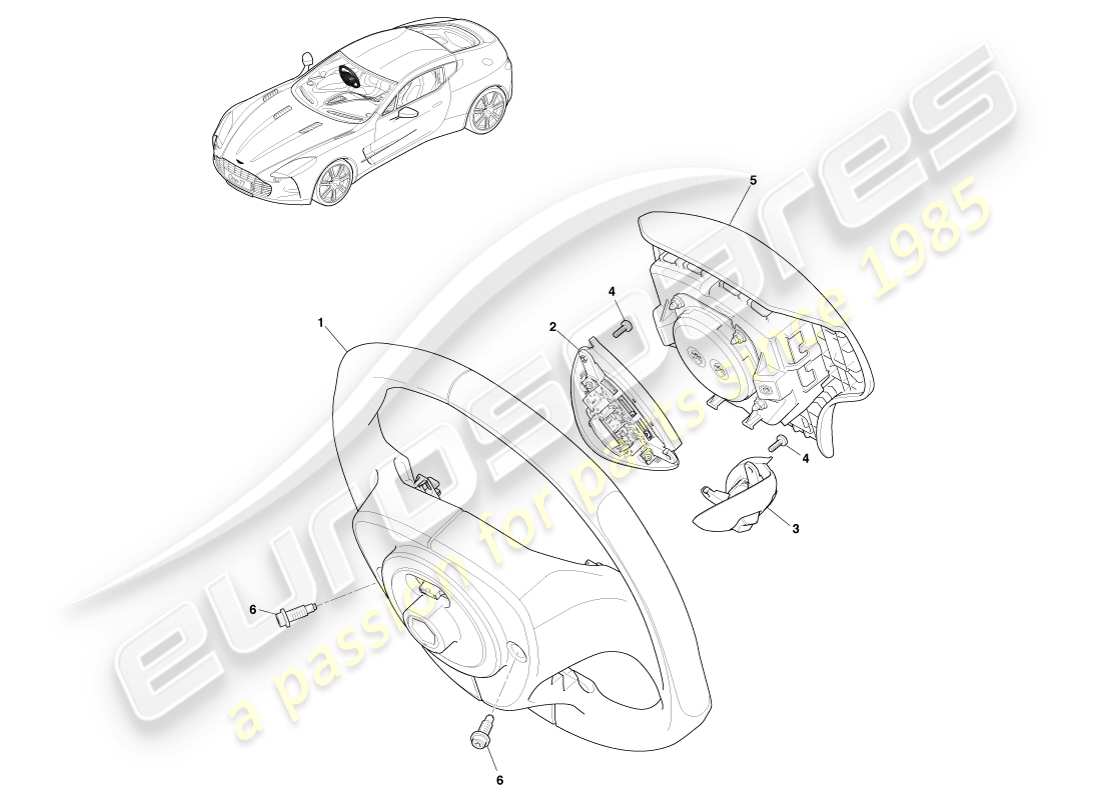

Aston Martin One-77 (2011) Steering Wheel Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 1
                MPN: 12023-14-6764-AA
                STEERING WHEEL ASSY, STANDARD LUXMILL
                from £2,712.66
                from £2,712.66
                # 1
                MPN: 12023-14-6765-AA
                STEERING WHEEL ASSY, LIPSTICK LUXMILL
                from £2,129.41
                from £2,129.41
                # 1
                MPN: 12023-14-6766-AA
                STEERING WHEEL ASSY, DEEP SOFT, SEMI-ANALINE
                from £1,887.60
                from £1,887.60
                # 1
                MPN: 12023-14-6768-AA
                Steering Wheel Assy, Metallic
                # 2
                MPN: 9G43-14K147-AA
                SWITCH, CRUISE CONTROL
                from £236.33
                from £236.33
                # 3
                MPN: 9G43-14K147-BA
                SWITCH, ICE/BLUETOOTH, REMOTE
                from £110.37
                from £110.37
                # 4
                -
                SCREW, M4 X 10 PAN HEAD
                # 5
                MPN: 12023-14-6770-AA
                DAB BLACK RING, STANDARD LUXMILL
                # 5
                MPN: 12023-14-6771-AA
                DAB BLACK RING, LIPSTICK LUXMILL
                # 5
                MPN: 12023-14-6772-AA
                DAB BLACK RING, DEEP SOFT/ SEMI ANALINE
                # 5
                MPN: 12023-14-6773-AA
                DAB BLACK RING, METALLIC
                # 5
                MPN: 12023-14-6774-AA
                DAB RUTHENIUM RING, STANDARD LUXMILL
                # 5
                MPN: 12023-14-6775-AA
                DAB RUTHENIUM RING, LIPSTICK LUXMILL
                # 5
                MPN: 12023-14-6776-AA
                DAB RUTHENIUM RING, DEEP SOFT/ SEMI ANALINE
                # 5
                MPN: 12023-14-6777-AA
                DAB RUTHENIUM RING, METALLIC
                # 5
                MPN: 12023-14-6778-AA
                DAB ROSE GOLD RING, STANDARD LUXMILL
                # 5
                MPN: 12023-14-6779-AA
                DAB ROSE GOLD RING, LIPSTICK LUXMILL
                # 5
                MPN: 12023-14-6780-AA
                DAB ROSE GOLD RING, DEEP SOFT/ SEMI ANALINE
                # 5
                MPN: 12023-14-6781-AA
                DAB ROSE GOLD RING, METALLIC
                # 6
                MPN: 4G43-36005-AB
                FIXING, M6
                from £7.05
                from £7.05
                # -
                MPN: 9G43-33698-AA
                SLEEVE, AIRBAG BOLT
                from £0.77
                from £0.77
