aston martin rapide (2010) front door handle parts diagram

010505-B4 - Front Door Handle

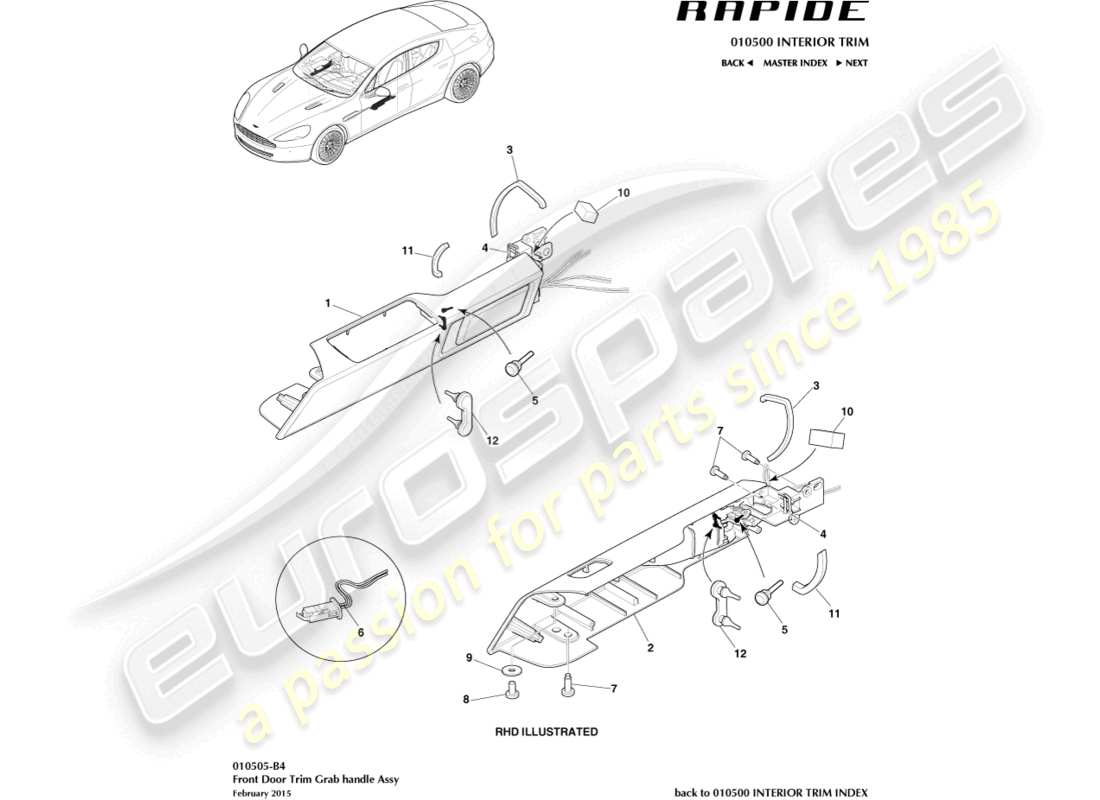

Aston Martin Rapide (2010) Front Door Handle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: AD43-22614-AG
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD
            Iridium
            from £387.40
            from £387.40
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD Genuine Aston Martin - New (to order)
            # 1
            MPN: DD43-22614-AA
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD
            Piano black
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD Genuine Aston Martin - New (to order)
            # 1
            MPN: FD43-22614-CC
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD
            Ice Mocha
            from £2,508.14
            from £2,508.14
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, RHD Genuine Aston Martin - New (to order)
            # 1
            MPN: AD43-22614-BD
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD
            Up to VIN F04218, Iridium
            from £460.03
            from £460.03
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD Genuine Aston Martin - New (to order)
            # 1
            MPN: AD43-22614-BE
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD
            From VIN F04219, Iridium
            from £460.03
            from £460.03
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD Genuine Aston Martin - New (to order)
            # 1
            MPN: DD43-22614-BA
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD
            Up To VIN F04218, Piano Black
            from £606.32
            from £606.32
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD Genuine Aston Martin - New (to order)
            # 1
            MPN: DD43-22614-BC
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD
            From VIN F04219, Piano Black
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD Genuine Aston Martin - New (to order)
            # 1
            MPN: DD43-22614-DC
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD
            Ice Mocha
            ASSEMBLY, INSIDE RELEASE HANDLE, RH, LHD Genuine Aston Martin - New (to order)
            # 2
            MPN: AD43-22615-AD
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD
            Up to VIN F04218, Iridium
            from £460.03
            from £460.03
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD Genuine Aston Martin - New (to order)
            # 2
            MPN: AD43-22615-AE
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD
            From VIN F04219, Iridium
            from £460.03
            from £460.03
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD Genuine Aston Martin - New (to order)
            # 2
            MPN: DD43-22615-AA
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD
            Piano black
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD Genuine Aston Martin - New (to order)
            # 2
            MPN: FD43-22615-CC
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD
            Ice Mocha
            from £2,508.14
            from £2,508.14
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, RHD Genuine Aston Martin - New (to order)
            # 2
            MPN: AD43-22615-BG
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD
            Iridium
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD Genuine Aston Martin - New (to order)
            # 2
            MPN: DD43-22615-BA
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD
            Up To VIN F04218, Piano Black
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD Genuine Aston Martin - New (to order)
            # 2
            MPN: DD43-22615-BC
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD
            From VIN F04219, Piano Black
            from £506.68
            from £506.68
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD Genuine Aston Martin - New (to order)
            # 2
            MPN: FD43-22615-DC
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD
            Ice Mocha
            from £2,508.14
            from £2,508.14
            ASSEMBLY, INSIDE RELEASE HANDLE, LH, LHD Genuine Aston Martin - New (to order)
            # 3
            MPN: 4G43-18D404-CA
            SEAL, FOAM
            from £1.44
            from £1.44
            FOAM SEAL - AIR DIST Genuine Aston Martin - New (to order)
            # 4
            MPN: 37-90075
            TIE STRAP
            from £0.47
            from £0.47
            TIE STRAP-290MM Genuine Aston Martin - New (to order)
            # 5
            MPN: 4G43-69-10112
            SINGLE BUMP STOP
            1 per handle
            from £1.04
            from £1.04
            BUFFER-GLOVE BOX DR Genuine Aston Martin - New (to order)
            # 6
            MPN: AD43-37-10064
            MICROSWITCH, DOOR HANDLE
            from £120.73
            from £120.73
            MICROSWITCH, DOOR HANDLE Genuine Aston Martin - New (to order)
            # 7
            MPN: 702294
            SCREW M6X1.00X16 PAN
            3 per side
            from £0.47
            from £0.47
            SCREW M6X1.00X16 PAN Genuine Aston Martin - New (to order)
            # 8
            MPN: 702293
            SCREW M6X12 PAN HD
            2 per side
            from £0.47
            from £0.47
            SCREW M6X12 PAN HD Genuine Aston Martin - New (to order)
            # 9
            MPN: 697517-PK
            WASHER M6 LGE OD BLACK
            2 per side, Pack of 20
            from £13.07
            from £13.07
            WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
            # 10
            MPN: 8D33-19H474-AA
            FOAM BLOCK
            from £0.47
            from £0.47
            ANTI/RTL HLDR TRANS Genuine Aston Martin - New (to order)
            # 11
            MPN: 610261357
            FOAM STRIP
            from £9.75
            from £9.75
            FOAM STRIP AD BK Genuine Aston Martin - New (to order)
            # 12
            MPN: ED43-226A28-AA
            DUAL BUMP STOP
            1 per handle
            from £2.45
            from £2.45
            DUAL BUMP STOP Genuine Aston Martin - New (to order)
