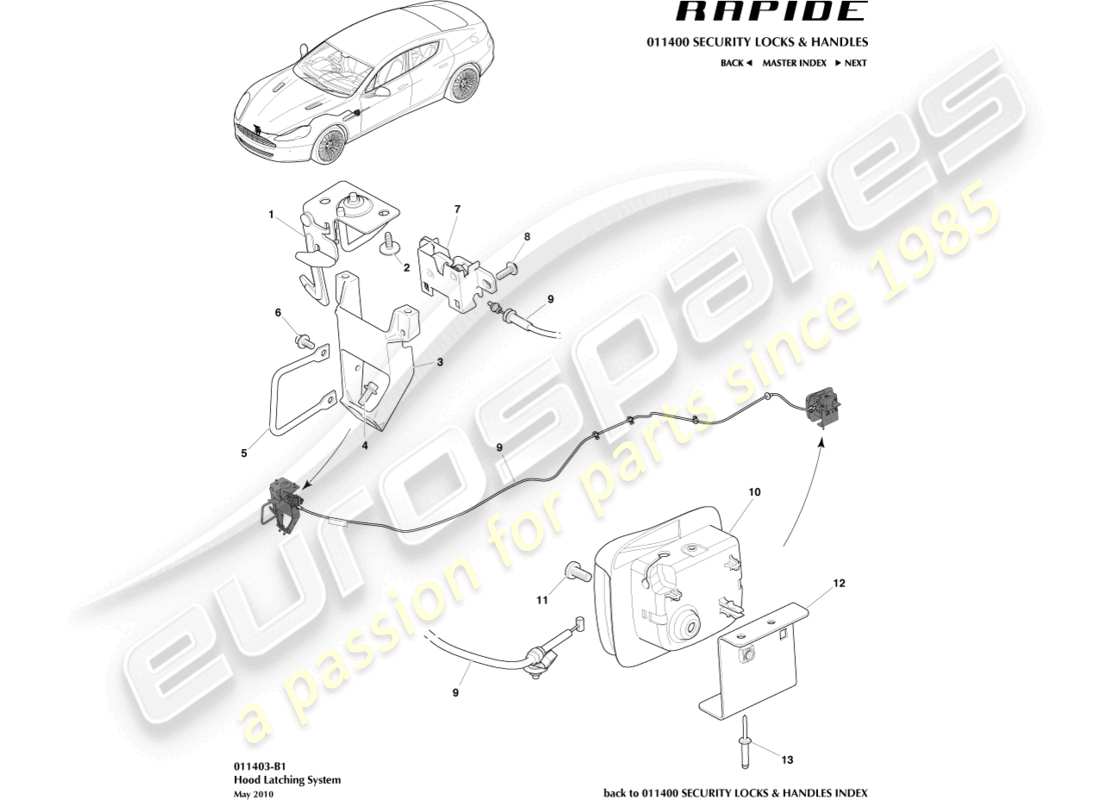

011403-B1 - Hood Latch System

Aston Martin Rapide (2010) Hood Latch System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 8D33-16B768-AA
                            LATCH ASSY, HOOD, SECONDARY
                            from £255.92
                            from £255.92
                            LATCH ASSEMBLY, HOOD, SECONDARY Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 702514
                            SCREW, M6 X 14
                            from £0.56
                            from £0.56
                            SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
                            FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
                            # 3
                            MPN: 4G43-3804-AC
                            BRACKET ASSY, HOOD LOCK
                            from £202.95
                            from £202.95
                            BRACKET ASSEMBLY, HOOD LOCK Genuine Aston Martin - New (to order)
                            BRACKET ASSEMBLY, HOOD LOCK Genuine Aston Martin - Used In stock
                            # 4
                            MPN: 703265
                            SCREW, M6 X 16
                            from £0.47
                            from £0.47
                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                            # 5
                            MPN: AD43-16A944-AA
                            STRIKER BAR
                            from £32.73
                            from £32.73
                            STRIKER BAR Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 700606
                            SCREW, M6 X 12
                            from £0.47
                            from £0.47
                            SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                            # 7
                            MPN: 4G43-64-10063
                            LATCH ASSY
                            from £10.20
                            from £10.20
                            BONNET LATCH Genuine Aston Martin - New (to order)
                            BONNET LATCH Genuine Aston Martin - Used In stock
                            # 8
                            MPN: 703149
                            SCREW, M6 X 16
                            from £0.47
                            from £0.47
                            SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                            # 9
                            MPN: AD43-16C656-AB
                            CABLE ASSY, HOOD LATCH RELEASE
                            CABLE ASSEMBLY, HOOD LATCH RELEASE Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 9G43-64-11062
                            HANDLE, HOOD RELEASE
                            from £4.94
                            from £4.94
                            LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
                            LEVER-BONNET RELEASE Genuine Aston Martin - Used In stock
                            # 11
                            MPN: 701553
                            SCREW, M6 X 16
                            from £0.47
                            from £0.47
                            SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 4G43-16C730-AB
                            BRACKET, HOOD RELEASE HANDLE
                            from £8.71
                            from £8.71
                            HOOD REL HNDL MOUNTING BR Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 701580-PK
                            RIVET, HOOD RELEASE MOUNTING BRACKET TO BODY
                            from £6.28
                            from £6.28
                            RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
