aston martin rapide (2010) trunk latch system parts diagram

011405-B1 - Trunk Latch System

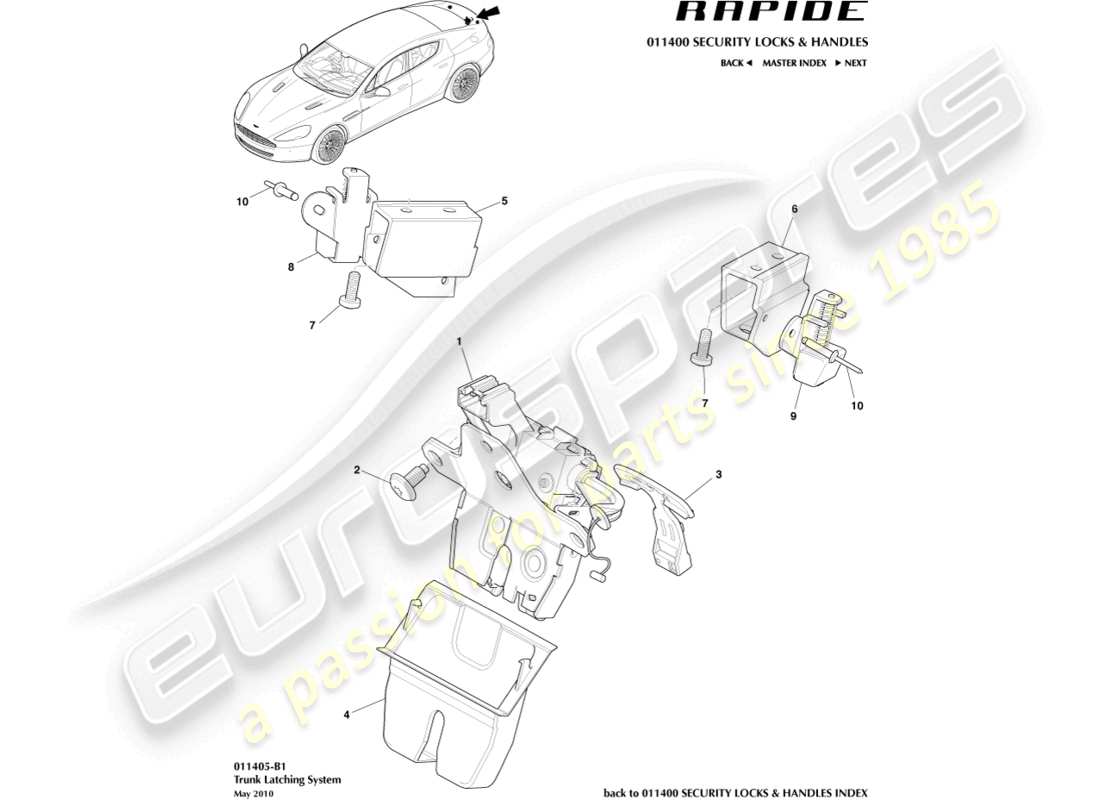

Aston Martin Rapide (2010) Trunk Latch System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 8N51-F442A66-BC
                    LATCH ASSY
                    from £46.34
                    from £46.34
                    LATCH TAILGATE Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 702517
                    BOLT, M8 X 14
                    from £0.47
                    from £0.47
                    BOLT M8 X 14 Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 6G43-67-10237
                    HANDLE, EMERGENCY RELEASE, BOOT
                    from £10.24
                    from £10.24
                    EMERGENCY REL HANDLE Genuine Aston Martin - New (to order)
                    # -
                    -
                    CLIP U TYPE (SECURES RELEASE HANDLE)
                    # 4
                    MPN: 6G43-67-10236

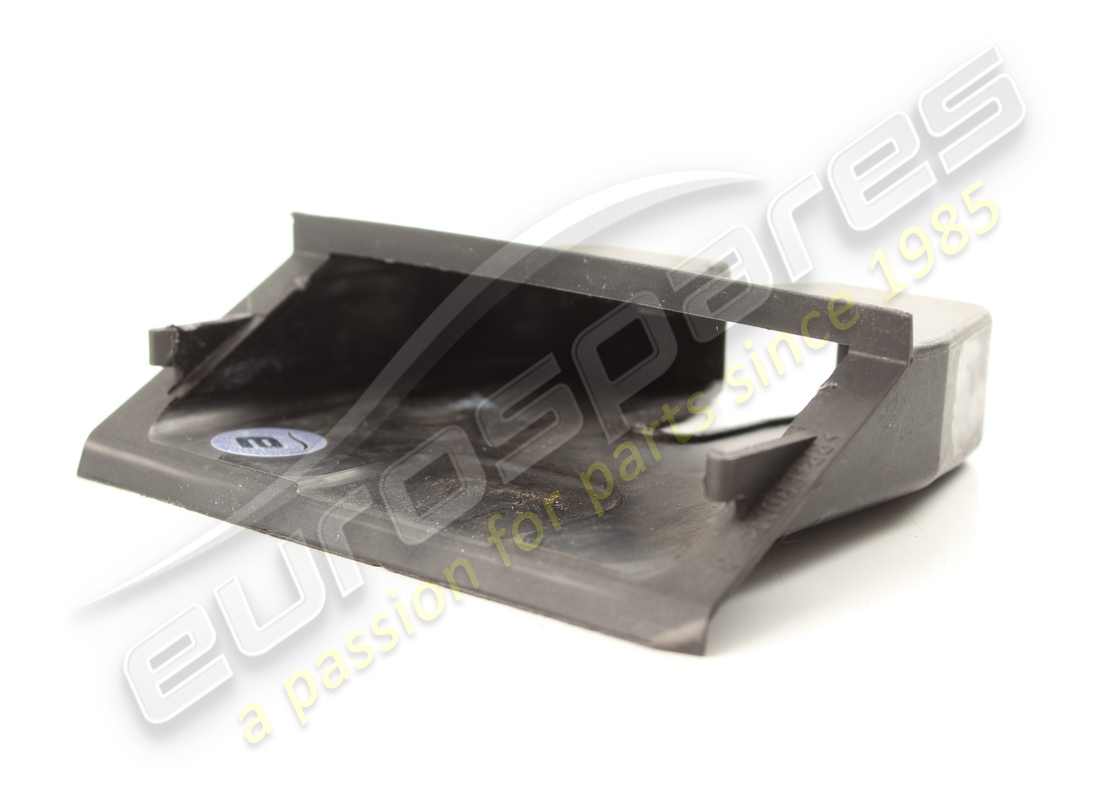

                    BEZEL, DOOR LOCK
                    from £6.66
                    from £6.66
                    BEZEL, DOOR LOCK Genuine Aston Martin - New (to order)
                    BEZEL, DOOR LOCK Genuine Aston Martin - Used In stock
                    # 5
                    MPN: AD43-010640-AC
                    BRACKET, WEDGE ASSY TAILGATE, RH
                    from £24.78
                    from £24.78
                    BRACKET, WEDGE ASSEMBLY TAILGATE, RH Genuine Aston Martin - New (to order)
                    # 6
                    MPN: AD43-010641-AC
                    BRACKET, WEDGE ASSY TAILGATE, RH
                    from £24.78
                    from £24.78
                    BRACKET, WEDGE ASSEMBLY TAILGATE, RH Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 701553
                    SCREW, M6 X 16
                    2 per brkt
                    from £0.47
                    from £0.47
                    SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 93BB-N404B04-AJ
                    WEDGE ASSY, RH
                    from £16.27
                    from £16.27
                    WEDGE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 93BB-N404B05-AJ
                    WEDGE ASSY, LH
                    from £13.31
                    from £13.31
                    WEDGE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 701580-PK
                    RIVET
                    2 per wedge
                    from £6.28
                    from £6.28
                    RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
