aston martin rapide (2010) trunk latch system, s parts diagram

011405-B2 - Trunk Latch System, S

Aston Martin Rapide (2010) Trunk Latch System, S Parts Diagram

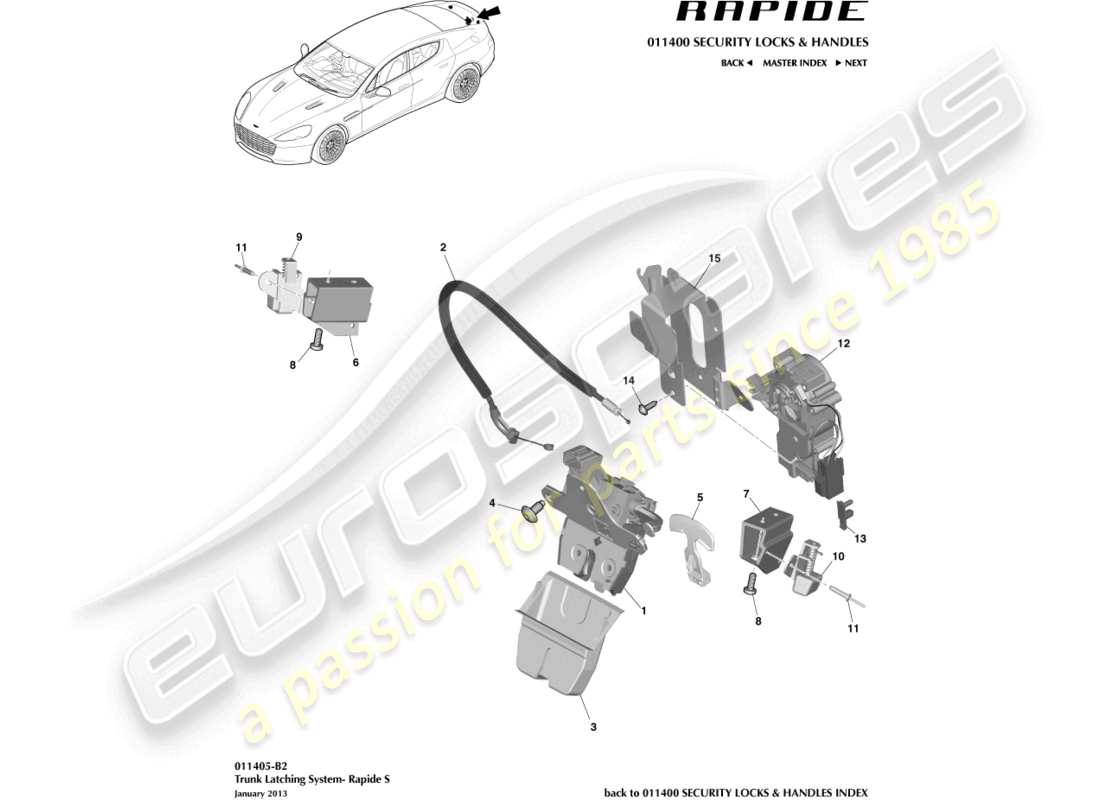

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: DD43-F442A66-AA
                          LATCH, DECK LID
                          Includes Items 2 and 3
                          from £177.51
                          from £177.51
                          LATCH, DECK LID Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 6G43-67-10236
                          BEZEL, DECK LID LATCH
                          from £6.66
                          from £6.66
                          BEZEL, DOOR LOCK Genuine Aston Martin - New (to order)
                          BEZEL, DOOR LOCK Genuine Aston Martin - Used In stock
                          # 4
                          MPN: 702517
                          BOLT, M8 X 14
                          from £0.47
                          from £0.47
                          BOLT M8 X 14 Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 6G43-67-10237
                          HANDLE, DECK LID EMERGENCY RELEASE
                          from £10.24
                          from £10.24
                          EMERGENCY REL HANDLE Genuine Aston Martin - New (to order)
                          # -
                          -
                          CLIP, U TYPE, EMERGENCY RELEASE HANDLE
                          # 6
                          MPN: AD43-010640-AC
                          BRACKET, WEDGE ASSY TAILGATE, RH
                          from £24.78
                          from £24.78
                          BRACKET, WEDGE ASSEMBLY TAILGATE, RH Genuine Aston Martin - New (to order)
                          # 7
                          MPN: AD43-010641-AC
                          BRACKET, WEDGE ASSY TAILGATE, LH
                          from £24.78
                          from £24.78
                          BRACKET, WEDGE ASSEMBLY TAILGATE, RH Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 701553
                          SCREW, M6 X 16, PAN HEAD
                          from £0.47
                          from £0.47
                          SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 93BB-N404B04-AJ
                          WEDGE ASSY, RH
                          from £16.27
                          from £16.27
                          WEDGE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 93BB-N404B05-AJ
                          WEDGE ASSY, LH
                          from £13.31
                          from £13.31
                          WEDGE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 701580-PK
                          RIVET, DOME HEAD
                          Pack of 20
                          from £6.28
                          from £6.28
                          RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
                          # 12
                          MPN: DD43-14B529-AD
                          ACTUATOR, POWER LATCH
                          Includes Item 13
                          from £131.72
                          from £131.72
                          ACTUATOR, POWER LATCH Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 6G43-01-10042
                          RETAINER, CONNECTOR
                          from £0.47
                          from £0.47
                          CONNECTOR RETAINER Genuine Aston Martin - New (to order)
                          # 14
                          MPN: W502670-S442
                          SCREW, 2 X 13
                          from £0.47
                          from £0.47
                          SCR4 - 8X16 Genuine Aston Martin - New (to order)
                          # 15
                          MPN: DD43-3896-AA
                          BRACKET, DECK LID ACTUATOR
                          BRACKET, DECK LID ACTUATOR Genuine Aston Martin - New (to order)
