aston martin rapide (2010) fuel filler mechanism parts diagram

011410-B1 - Fuel Filler Mechanism

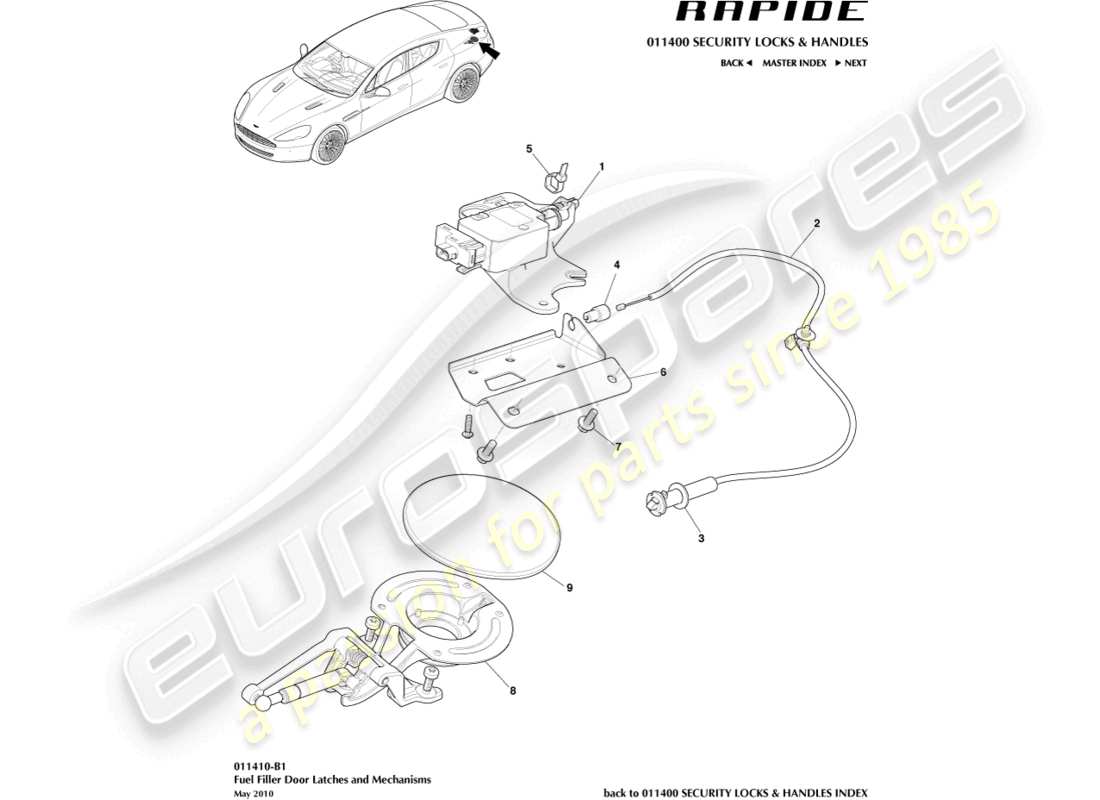

Aston Martin Rapide (2010) Fuel Filler Mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 6G33-F9C070-AA
                  Actuator Assembly, Fuel Filler
                  from £76.75
                  from £76.75
                  ACTUATOR ASY-FU/FILL Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 6G33-40180-AB
                  CABLE
                  CABLE Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 6G33-28614-AA
                  SEAL, CABLE FLAP RELEASE
                  from £0.73
                  from £0.73
                  SE CABLE FU/FILL FLP Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-2K625-AA
                  ABUTMENT, CABLE
                  from £11.13
                  from £11.13
                  ABUTMENT CABLE G/C Genuine Aston Martin - New (to order)
                  ABUTMENT CABLE G/C Genuine Aston Martin - Used In stock
                  # 5
                  MPN: 4G43-N02091-AA
                  CABLE TIE
                  CABLE TIE Genuine Aston Martin - New (to order)
                  # 6
                  MPN: AD43-F405B46-AA
                  BRACKET, ACTUATOR MOUNTING
                  from £8.09
                  from £8.09
                  BRACKET, ACTUATOR MOUNTING Genuine Aston Martin - New (to order)
                  # 7
                  MPN: 703265
                  SCREW, M6 X16
                  from £0.47
                  from £0.47
                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                  # 8
                  MPN: AD43-F405B96-AB
                  FUEL FILLER DOOR LATCH ASSEMBLY
                  Up To VIN F01419. With Gas Strut, See SB-01-0327
                  FUEL FILLER DOOR LATCH ASSEMBLY Genuine Aston Martin - New (to order)
                  # 8
                  MPN: AD43-F405B96-AD
                  FUEL FILLER DOOR LATCH ASSEMBLY
                  From VIN F01420. Less Gas Strut
                  from £220.14
                  from £220.14
                  FUEL FILLER DOOR LATCH ASSEMBLY Genuine Aston Martin - New (to order)
                  # -
                  -
                  SCREW, M6 X 10, PAN HEAD
                  Flap to Body
                  # 9
                  MPN: AD43-F405A02-BA
                  DOOR, FUEL FILLER OPENING
                  from £20.29
                  from £20.29
                  DOOR, FUEL FILLER OPENING Genuine Aston Martin - New (to order)
