aston martin rapide (2010) actuation sensors parts diagram

012005-B1 - Actuation Sensors

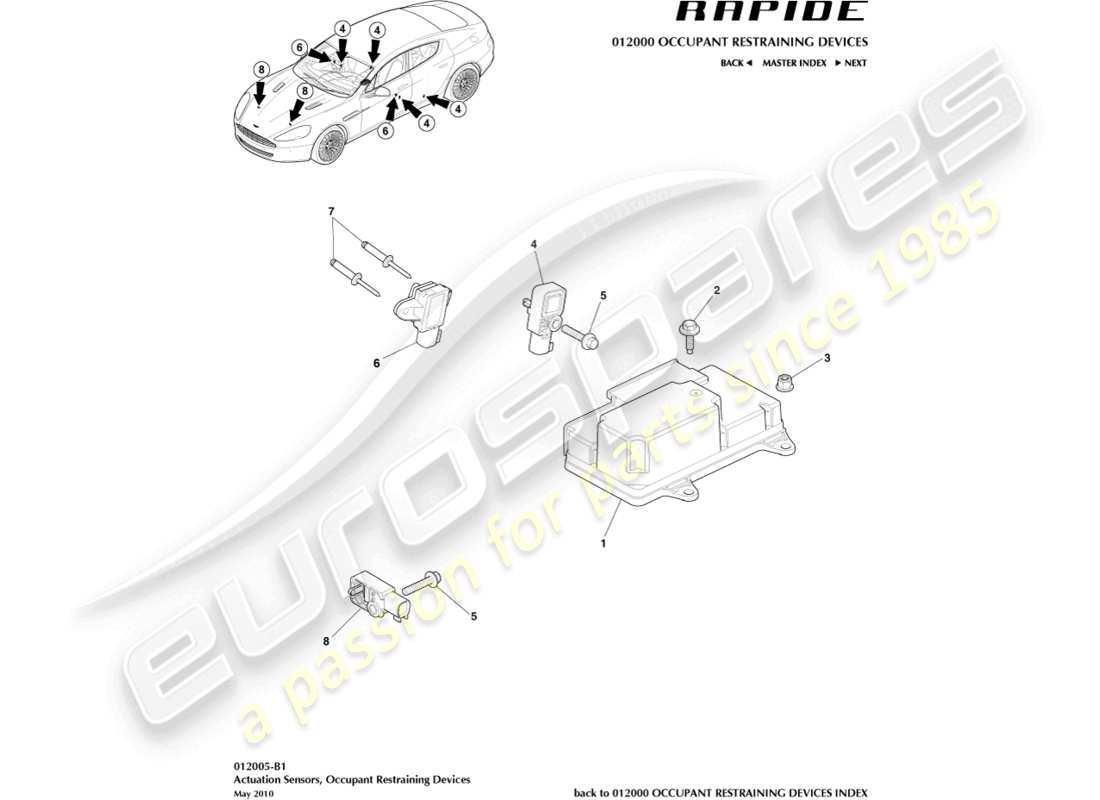

Aston Martin Rapide (2010) Actuation Sensors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: DD43-14C246-AA
            MODULE, RESTRAINTS CONTROL
            P14
            from £176.27
            from £176.27
            MODULE, RESTRAINTS CONTROL Genuine Aston Martin - New (to order)
            # 2
            MPN: 702839-PK
            SCREW AND WASHER, M6X20
            from £3.14
            from £3.14
            SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
            # 3
            MPN: 702840
            NUT AND WASHER, M6
            from £0.47
            from £0.47
            NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
            # 4
            MPN: 4G43-37-10931
            SENSOR, ARS SIDE
            from £32.17
            from £32.17
            SENSOR-OCC RESTRAINT Genuine Aston Martin - New (to order)
            # 5
            MPN: 703199
            BOLT, M6X30
            1 per sensor
            from £0.47
            from £0.47
            BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
            # 6
            MPN: AD43-37-10042
            SENSOR, DOOR, AIR BAG ACTUATION
            from £26.13
            from £26.13
            SENSOR, DOOR, AIR BAG ACTUATION Genuine Aston Martin - New (to order)
            # 7
            MPN: 701580-PK
            RIVET, DOME HEAD
            2 per sensor. Pack of 20
            from £6.28
            from £6.28
            RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
            # 8
            MPN: 4G43-37-10932
            SENSOR, ARS UFS
            from £49.47
            from £49.47
            This part replaces part number 6G33-10853-AF which we have in stock
            SENSOR-ORS UPPER FRONT Genuine Aston Martin - New (to order)
