aston martin rapide (2010) powertrain mountings parts diagram

020300 - Powertrain Mountings

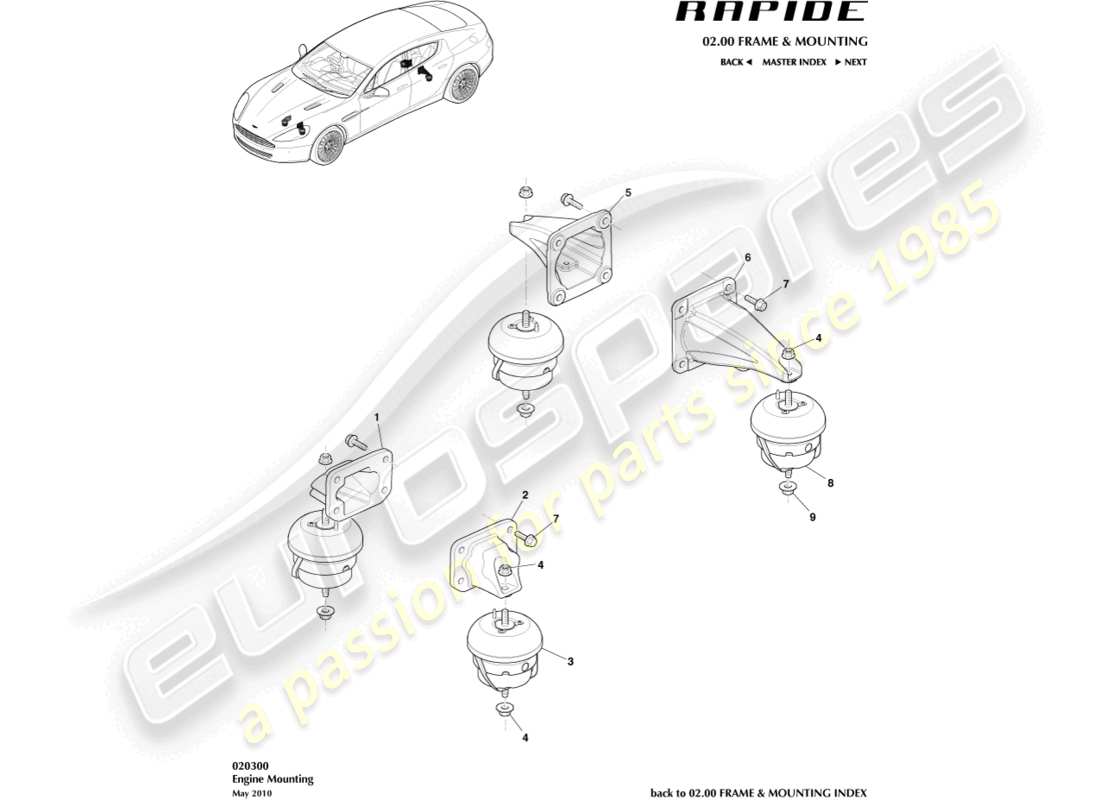

Aston Martin Rapide (2010) Powertrain Mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 4G43-6030-AB
      SUPPORT, ENGINE MOUNTING, RH
      from £44.32
      from £44.32
      SUPT-ENG FRONT RH Genuine Aston Martin - New (to order)
      SUPT-ENG FRONT RH Genuine Aston Martin - Used In stock
      # 1
      MPN: DG43-6030-AA
      MOUNT, ENGINE BRACKET, RH
      Rapide S
      from £61.26
      from £61.26
      MOUNT, ENGINE BRACKET, RH Genuine Aston Martin - New (to order)
      # 2
      MPN: 4G43-6031-AC
      SUPPORT, ENGINE MOUNTING, LH
      from £44.32
      from £44.32
      SUPPORT, ENGINE MOUNTING, LH Genuine Aston Martin - New (to order)
      SUPPORT, ENGINE MOUNTING, LH Genuine Aston Martin - Used In stock
      # 2
      MPN: DG43-6031-AA
      MOUNT, ENGINE BRACKET, LH
      Rapide S
      from £51.19
      from £51.19
      MOUNT, ENGINE BRACKET, LH Genuine Aston Martin - New (to order)
      # 3
      MPN: 8D33-6A003-AB
      HYDRAMOUNT, FRONT ENGINE SUPPORT
      from £268.79
      from £268.79
      HYDRAMOUNT Genuine Aston Martin - New In stock
      # 3
      MPN: CD33-6A003-AA
      HYDRAMOUNT, ENGINE
      Rapide S
      from £354.28
      from £354.28
      HYDRAMOUNT, ENGINE Genuine Aston Martin - New (to order)
      # 4
      MPN: 703167
      NUT, FLG, M10
      from £0.99
      from £0.99
      NUT M10 HEX FLNG Genuine Aston Martin - New (to order)
      WASHER Genuine Ferrari Part - New (to order)
      # 5
      MPN: AD43-7M125-DB
      BRACKET, TRANSMISSION MOUNT, RH
      Up to 15MY
      from £83.34
      from £83.34
      BRACKET, TRANSMISSION MOUNT, RH Genuine Aston Martin - New (to order)
      # 5
      MPN: FD43-7M125-DC
      BRACKET, TRANSMISSION MOUNT, RH
      FROM 15MY
      from £179.23
      from £179.23
      BRACKET, TRANSMISSION MOUNT, RH Genuine Aston Martin - New (to order)
      # 6
      MPN: AD43-7M125-CB
      BRACKET, TRANSMISSION MOUNT, LH
      Up to 15MY
      from £83.50
      from £83.50
      BRACKET, TRANSMISSION MOUNT, LH Genuine Aston Martin - New (to order)
      # 6
      MPN: FD43-7M125-CC
      BRACKET, TRANSMISSION MOUNT, LH
      FROM 15MY
      from £179.23
      from £179.23
      BRACKET, TRANSMISSION MOUNT, LH Genuine Aston Martin - New (to order)
      # 7
      MPN: 702210-PK
      BOLT, M10 X 30
      Pack of 10
      from £7.26
      from £7.26
      This part replaces part number 702210
      BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
      VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
      # 8
      MPN: 4G43-6068-BC
      HYDRAMOUNT, REAR TRANSMISSION SUPPORT
      Up To VIN F02999
      from £170.52
      from £170.52
      INS ASSEMBLY ENG REAR SUPT Genuine Aston Martin - New (to order)
      # 8
      MPN: CD33-6068-AA
      HYDRAMOUNT, TRANSMISSION
      From VIN F03000, To 15MY, Rapide S
      from £288.04
      from £288.04
      TRANSMISSION HYDRAMOUNT Genuine Aston Martin - New (to order)
      # 8
      MPN: FD43-6068-AA
      HYDRAMOUNT, TRANSMISSION
      From 15MY, Rapide S
      from £661.35
      from £661.35
      HYDRAMOUNT, TRANSMISSION Genuine Aston Martin - New (to order)
      # 9
      MPN: 703751
      NUT AND WASHER, M10
      from £1.50
      from £1.50
      NUT AND WASHER, M10 Genuine Aston Martin - New (to order)
