aston martin rapide (2010) coolant reservoir & hoses parts diagram

030304 - Coolant Reservoir & Hoses

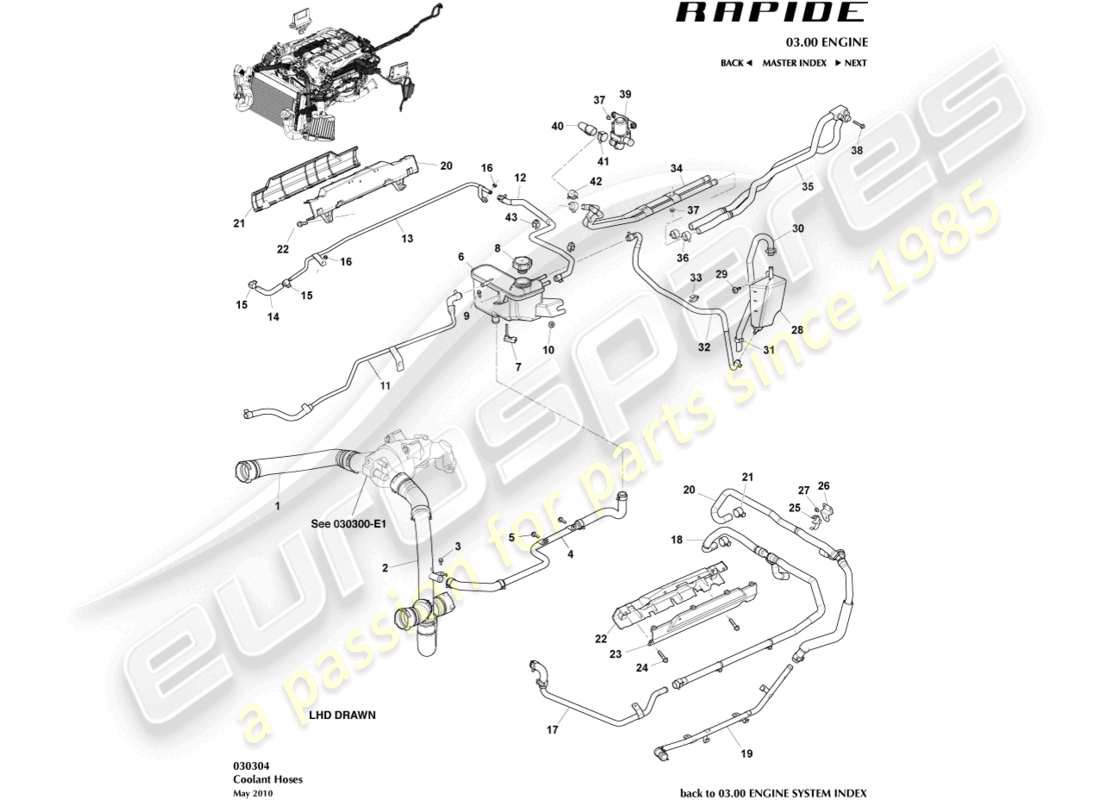

Aston Martin Rapide (2010) Coolant Reservoir & Hoses Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 8D33-8333-AA
                                                              HOSE ASSY, RADIATOR
                                                              from £72.77
                                                              from £72.77
                                                              HOSE - RADIATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: 8D33-8555-AB
                                                              TUBE ASSY, WATER BYPASS, INCL HOSES
                                                              from £720.82
                                                              from £720.82
                                                              This part replaces part number 4G43-8555-GA which we have in stock
                                                              TUBE ASSEMBLY, WATER BYPASS , INCL HOSES Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: 703264
                                                              SCREW M6X14 HEX FLG HD
                                                              SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: 4G43-8C350-GA
                                                              HOSE, ENGINE COOL RESERVOIR
                                                              from £59.83
                                                              from £59.83
                                                              Genuine Aston Martin (no longer available to order)
                                                              HOSE, ENGINE COOL RESERVOIR Genuine Aston Martin - Used In stock
                                                              # 5
                                                              MPN: 703264
                                                              SCREW M6X14 HEX FLG HD
                                                              HOSE, ENGINE COOL RESERVOIR
                                                              SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: 4G43-19B518-BC
                                                              TANK ASSY, EXPANSION
                                                              Supersession
                                                              Supersession
                                                              Genuine Aston Martin (no longer available to order)
                                                              # 7
                                                              MPN: 1R12-37-10166
                                                              SENSOR, EXPANSION TANK
                                                              from £46.34
                                                              from £46.34
                                                              SWITCH-COOLANT LEVEL Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: 4G43-8101-BA
                                                              CAP, EXPANSION TANK
                                                              Supersession
                                                              Supersession
                                                              Genuine Aston Martin (no longer available to order)
                                                              # 9
                                                              MPN: 703264
                                                              SCREW M6X14 HEX FLG HD
                                                              TANK ASSY, EXPANSION
                                                              SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: 7036912
                                                              NUT AND WASHER M6
                                                              NUT AND WASHER M6 Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: 4G43-8063-AE
                                                              HOSE, ENGINE DEGAS TO SUPPLY TANK
                                                              from £52.26
                                                              from £52.26
                                                              HOSE - ENG DEGAS Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: 4G43-8003-EA
                                                              PIPE ASSY, CROSSOVER BLEED
                                                              PIPE ASSEMBLY, CROSSOVER BLEED Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: 4G43-8003-CA
                                                              HOSE, THERMO HOUSING CROSSOVER BLEED
                                                              from £40.85
                                                              from £40.85
                                                              HOS-THERMO HSG C/OVR Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: 702904
                                                              CLAMP
                                                              from £1.13
                                                              from £1.13
                                                              HOSECLAMP SPRG 17X15 Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: 702295
                                                              NUT, FLG, M5
                                                              Crossover Bleed Pipe
                                                              from £0.47
                                                              from £0.47
                                                              NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                                              # 17
                                                              MPN: 4G43-8584-DB
                                                              TUBE, ASSEMBLY HEATER FEED
                                                              Also use items 17a and 17b
                                                              from £52.85
                                                              from £52.85
                                                              TUBE, ASSEMBLY HEATER FEED Genuine Aston Martin - New (to order)
                                                              # 17a
                                                              MPN: ED23-8A209-AA
                                                              HOSE, THERMO UPPER
                                                              Also use items 17 and 17b
                                                              from £222.16
                                                              from £222.16
                                                              HOSE, THERMO UPPER Genuine Aston Martin - New (to order)
                                                              # 17b
                                                              MPN: 702901
                                                              CLAMP, HOSE 23X15MM
                                                              Also use items 17 and 17a
                                                              from £1.23
                                                              from £1.23
                                                              CLAMP-HOSE 23 X 15 Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: AD43-18D334-AA
                                                              HOSE, WATER HEATER INLET ASSY, LHD
                                                              LHD
                                                              from £174.81
                                                              from £174.81
                                                              HOSE, WATER HEATER INLET ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: AD43-18D334-BA
                                                              HOSE, WATER HEATER INLET ASSY, RHD
                                                              RHD
                                                              from £157.31
                                                              from £157.31
                                                              HOSE, WATER HEATER INLET ASSEMBLY, RHD Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: 4G43-18674-EB
                                                              HOSE, WATER HEATER OUTLET ASSEMBLY
                                                              HOSE, WATER HEATER OUTLET ASSEMBLY Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: AD43-18D359-AA
                                                              HOSE, WATER HEATER OUTLET ASSY, LHD
                                                              LHD
                                                              from £229.65
                                                              from £229.65
                                                              HOSE, WATER HEATER OUTLET ASSEMBLY, LHD Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: AD43-18D359-BA
                                                              HOSE, WATER HEATER OUTLET ASSY, RHD
                                                              RHD
                                                              from £163.26
                                                              from £163.26
                                                              HOSE, WATER HEATER OUTLET ASSEMBLY, RHD Genuine Aston Martin - New (to order)
                                                              # 21
                                                              MPN: 701335
                                                              CLAMP, 20X15 SPRING BAND H.DUTY
                                                              from £0.67
                                                              from £0.67
                                                              CLIP-HOSE SPRING Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 4G43-4867-BC
                                                              COVER ASSY, BOTTOM
                                                              from £11.35
                                                              from £11.35
                                                              ASY-COVER BOTTOM Genuine Aston Martin - New (to order)
                                                              # 23
                                                              MPN: 4G43-6793-BB
                                                              COVER, TOP
                                                              from £8.36
                                                              from £8.36
                                                              TOP COVER, ENGINE HARNESS Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 700229
                                                              BOLT, M8X35
                                                              from £0.47
                                                              from £0.47
                                                              BOLT M8X35 HEX FLANGE Genuine Aston Martin - New (to order)
                                                              # 25
                                                              MPN: 4G43-58-AA
                                                              CLIP, HOSE PLATE
                                                              from £13.24
                                                              from £13.24
                                                              CLIP, HOSE PLATE Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: AD43-2A155-AA
                                                              BRACKET, HOSE CLIP
                                                              from £12.33
                                                              from £12.33
                                                              BRACKET, HOSE CLIP Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 6G33-TBD2-BA
                                                              TANK, OVERFLOW
                                                              from £36.01
                                                              from £36.01
                                                              This part replaces part number 6G33-TBD2-AA which we have in stock
                                                              OVERFLOW BOTTLE Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 703734
                                                              SCREW AND WASHER M6X25 HEX HD
                                                              Overflow tank
                                                              from £0.73
                                                              from £0.73
                                                              BOLT &WASHER-M6X25 Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 4G43-8N029-AG
                                                              HOSE, RADIATOR OVERFLOW
                                                              from £8.56
                                                              from £8.56
                                                              OVERFLOW HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                                              OVERFLOW HOSE ASSEMBLY Genuine Aston Martin - Used In stock
                                                              # 31
                                                              MPN: AD43-55-AA
                                                              CLIP, RAYMOND C 18
                                                              from £0.99
                                                              from £0.99
                                                              CLIP, RAYMOND C 18 Genuine Aston Martin - New (to order)
                                                              # 32
                                                              MPN: AD43-8B081-AA
                                                              HOSE ASSY, RAD SUPPLY TANK
                                                              from £43.52
                                                              from £43.52
                                                              HOSE RADIATOR SUP TNK OFL Genuine Aston Martin - New (to order)
                                                              # 33
                                                              MPN: 701181
                                                              CLIP 16X6.5X1.5
                                                              from £1.82
                                                              from £1.82
                                                              CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
                                                              # 34
                                                              MPN: AD43-18D359-EA
                                                              HOSE ASSY, HEATER OUTLET AND INLET
                                                              from £143.95
                                                              from £143.95
                                                              HOSE ASSEMBLY, HEATER OUTLET AND INLET Genuine Aston Martin - New (to order)
                                                              # 35
                                                              MPN: AD43-18D359-DA
                                                              PIPE ASSY, REAR HEATER
                                                              from £289.57
                                                              from £289.57
                                                              PIPE ASSEMBLY, REAR HEATER Genuine Aston Martin - New (to order)
                                                              # 36
                                                              MPN: 702901
                                                              CLAMP, SPRING BAND 23X15
                                                              Rear Heater Pipe assy
                                                              from £1.23
                                                              from £1.23
                                                              CLAMP-HOSE 23 X 15 Genuine Aston Martin - New (to order)
                                                              # 37
                                                              MPN: 702944
                                                              NUT, M6
                                                              Rear Heater Pipe assy
                                                              from £0.58
                                                              from £0.58
                                                              NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                                              LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                                              # 38
                                                              MPN: 703198
                                                              BOLT M6X40 HEX FLG
                                                              Rear Heater Pipe assy
                                                              from £0.47
                                                              from £0.47
                                                              BOLT M6 X 40 Genuine Aston Martin - New (to order)
                                                              # 39
                                                              MPN: AD43-18495-AA
                                                              VALVE ASSY, WATER HEATER CONTROL
                                                              from £148.46
                                                              from £148.46
                                                              VALVE ASSEMBLY, WATER HEATER CONTROL Genuine Aston Martin - New (to order)
                                                              # 40
                                                              MPN: AD43-18D359-FA
                                                              HOSE, HEATER OUTLET, LHD
                                                              LHD
                                                              from £36.12
                                                              from £36.12
                                                              HOSE, HEATER WATER VALVE INLET Genuine Aston Martin - New (to order)
                                                              # 40
                                                              MPN: AD43-18D359-CA
                                                              HOSE, HEATER OUTLET, RHD
                                                              RHD
                                                              from £28.76
                                                              from £28.76
                                                              HOSE, HEATER WATER VALVE INLET Genuine Aston Martin - New (to order)
                                                              # 43
                                                              MPN: 701172
                                                              CLIP, OPEN PUSH IN 16X2.8-3.3
                                                              from £0.47
                                                              from £0.47
                                                              CLIP 16X2.8-3.3 Genuine Aston Martin - New (to order)
