aston martin rapide (2010) fuel charging & controls parts diagram

030400-E1 - Fuel Charging & Controls

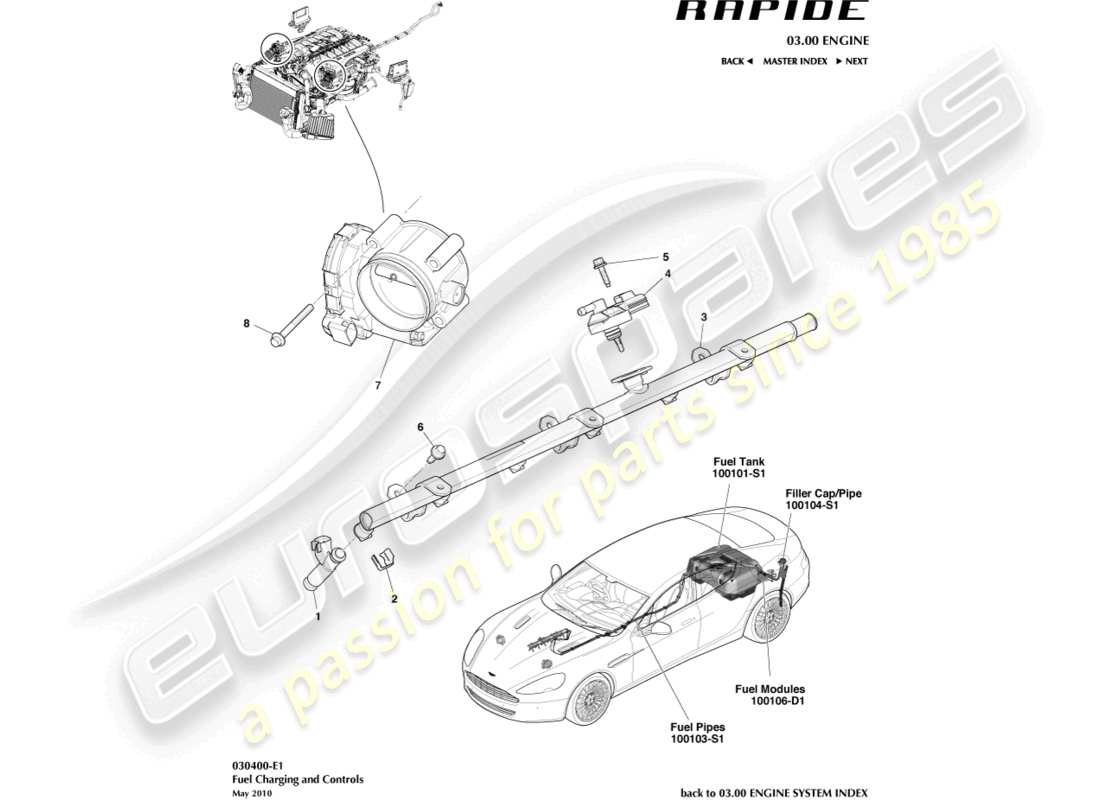

Aston Martin Rapide (2010) Fuel Charging & Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # -
            MPN: 6G43-08-10474-PK
            O-RING, INJECTOR, FUEL, UPPER
            Packs of 8
            from £3.57
            from £3.57
            O-RING, INJECTOR, FUEL, UPPER (BLUE - Pack of 8) Genuine Aston Martin - New In stock
            Alternative (#6G43-08-10474) O-RING, FUEL INJECTOR TO MANIFOLD (BLUE - Single) Genuine Aston Martin - New In stock
            # -
            MPN: 6G43-08-11260-PK
            O-RING, INJECTOR, FUEL, LOWER
            Packs of 8
            from £3.31
            from £3.31
            O-RING, INJECTOR, FUEL, LOWER (GREEN - Pack of 8) Genuine Aston Martin - New In stock
            Alternative (#6G43-08-11260) O-RING, FUEL INJECTOR TO MANIFOLD (GREEN - Single) Genuine Aston Martin - New In stock
            # 1
            MPN: 5R13-9F593-AB
            INJECTOR, FUEL
            from £61.63
            from £61.63
            INJECTOR, FUEL Genuine Aston Martin - New (to order)
            # 2
            MPN: 6G43-34-10062
            CLIP, FUEL INJECTOR
            from £7.73
            from £7.73
            This part replaces part number 6R83-9N976-AA
            CLIP, FUEL INJECTOR Genuine Aston Martin - New (to order)
            # 3
            MPN: 4G4E-9S441-DA
            FUEL RAIL ASSY, LH
            from £317.08
            from £317.08
            FUEL RAIL ASSEMBLY, LH Genuine Aston Martin - New (to order)
            # 3
            MPN: 4G4E-9S441-CA
            FUEL RAIL ASSY, RH
            from £317.08
            from £317.08
            FUEL RAIL ASSEMBLY, RH Genuine Aston Martin - New (to order)
            # 4
            MPN: 6G43-34-10063
            SENSOR, IPS
            1 per Fuel Rail
            from £162.04
            from £162.04
            SNSOR ASSEMBLY TEM/PRESS Genuine Aston Martin - New (to order)
            # 6
            MPN: 703693
            SCREW AND WASHER, M6 X 18
            3 per Fuel Rail
            from £0.47
            from £0.47
            BOLT&WASHER M6X18 Genuine Aston Martin - New (to order)
            # 7
            MPN: 1R12-08-10079
            THROTTLE BODY ASSY
            from £219.44
            from £219.44
            THROTTLE BODY ASSEMBLY Genuine Aston Martin - New (to order)
            THROTTLE BODY ASSEMBLY Genuine Aston Martin - Used In stock
            # -
            -
            GASKET/O RING, THROTTLE BODY
            This part replaces part number 1R12-08-10317
