030900-E1 - Valve Train

Aston Martin Rapide (2010) Valve Train Parts Diagram

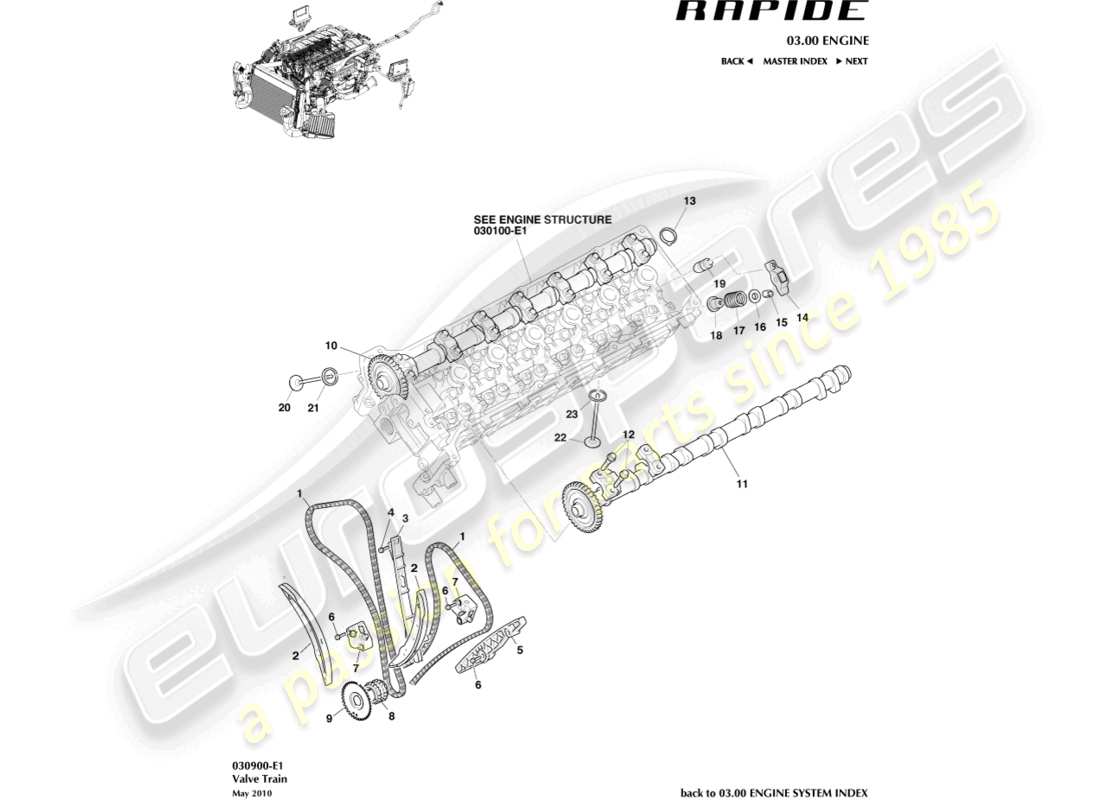

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 1R12-03-10483
                                                  CHAIN, TIMING
                                                  from £64.48
                                                  from £64.48
                                                  CHAIN, TIMING Genuine Aston Martin - New (to order)
                                                  # 2
                                                  MPN: 4G43-03-10013
                                                  ARM ASSY, TIMING CHAIN TENSIONER
                                                  from £33.09
                                                  from £33.09
                                                  ARM ASSEMBLY, TIMING CHAIN TENSIONER Genuine Aston Martin - New (to order)
                                                  # 3
                                                  MPN: 1R12-03-10069
                                                  GUIDE ASSY, TIMING CHAIN RH
                                                  from £42.40
                                                  from £42.40
                                                  GUIDE-T/CHAIN RH Genuine Aston Martin - New (to order)
                                                  # 4
                                                  MPN: 702851
                                                  BOLT AND WASHER, M8 X 32
                                                  from £2.88
                                                  from £2.88
                                                  BOLT & WASHER M8X32 Genuine Aston Martin - New (to order)
                                                  # 5
                                                  MPN: 1R12-03-10070
                                                  GUIDE ASSY, TIMING CHAIN LH
                                                  from £42.40
                                                  from £42.40
                                                  GUIDE-T/CHAIN LH Genuine Aston Martin - New (to order)
                                                  # 6
                                                  MPN: 703694
                                                  BOLT, M8 X 45
                                                  from £3.42
                                                  from £3.42
                                                  BOLT&WASHER M8X45 HF Genuine Aston Martin - New (to order)
                                                  # 7
                                                  MPN: 1R12-03-10071
                                                  TENSIONER ASSY
                                                  from £161.48
                                                  from £161.48
                                                  TENSIONER ASSEMBLY, TIMING CHAIN Genuine Aston Martin - New (to order)
                                                  # 8
                                                  MPN: 4G43-02-10012
                                                  SPROCKET, CRANKSHAFT
                                                  from £38.59
                                                  from £38.59
                                                  SPROCKET, CRANKSHAFT Genuine Aston Martin - New (to order)
                                                  # 9
                                                  MPN: 1R12-07-10230
                                                  SENSOR RING, IGNITION PULSE
                                                  SENSOR RING, IGNITION PULSE Genuine Aston Martin - New (to order)
                                                  # 10
                                                  MPN: 7G4E-6A267-AB
                                                  CAMSHAFT ASSY, INLET LH
                                                  from £726.14
                                                  from £726.14
                                                  CAMSHAFT ASSEMBLY, INLET LH Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 7G4E-6A269-AB
                                                  CAMSHAFT ASSY, EXHAUST LH
                                                  from £716.40
                                                  from £716.40
                                                  CAMSHAFT ASSEMBLY, EXHAUST LH Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 7G4E-6A266-AB
                                                  CAMSHAFT ASSY, INLET RH
                                                  from £726.30
                                                  from £726.30
                                                  CAMSHAFT ASSEMBLY, INLET RH Genuine Aston Martin - New (to order)
                                                  # 11
                                                  MPN: 7G4E-6A268-AB
                                                  CAMSHAFT ASSY, EXHAUST RH
                                                  from £716.40
                                                  from £716.40
                                                  CAMSHAFT ASSEMBLY, EXHAUST RH Genuine Aston Martin - New (to order)
                                                  # 12
                                                  MPN: 06-85321
                                                  BOLT, M6 X 40
                                                  from £4.26
                                                  from £4.26
                                                  BOLT, M6X40 Genuine Aston Martin - New (to order)
                                                  # 13
                                                  MPN: 07-85366
                                                  GASKET, SPARK PLUG HOLE
                                                  from £4.07
                                                  from £4.07
                                                  GASKET SPARK PLUG HOLE Genuine Aston Martin - New In stock
                                                  # 14
                                                  MPN: 06-85914
                                                  ROCKER ARM ASSY
                                                  from £17.57
                                                  from £17.57
                                                  ROCKER ARM ASSEMBLY Genuine Aston Martin - New (to order)
                                                  # 15
                                                  MPN: 06-85041
                                                  KEY, VALVE SPRING
                                                  from £9.11
                                                  from £9.11
                                                  KEY, VALVE SPRING Genuine Aston Martin - New (to order)
                                                  # 16
                                                  MPN: 06-85040
                                                  RETAINER, VALVE SPRING
                                                  from £1.01
                                                  from £1.01
                                                  RETAINER, VALVE SPRING Genuine Aston Martin - New (to order)
                                                  # 17
                                                  MPN: 1R12-06-10062
                                                  SPRING, VALVE
                                                  from £7.22
                                                  from £7.22
                                                  SPRING, VALVE Genuine Aston Martin - New (to order)
                                                  # 18
                                                  MPN: 06-85038-PK
                                                  Seal assy, valve stem
                                                  from £47.01
                                                  from £47.01
                                                  SEAL ASSEMBLY, VALVE STEM Genuine Aston Martin - New (to order)
                                                  Pack of 24PCS
                                                  # 19
                                                  MPN: 06-85042
                                                  ADJUSTER ASSY, VALVE LASH
                                                  from £19.46
                                                  from £19.46
                                                  ADJUSTER ASSEMBLY, VALVE LASH Genuine Aston Martin - New (to order)
                                                  # 20
                                                  MPN: 06-85037
                                                  VALVE, EXHAUST
                                                  from £29.98
                                                  from £29.98
                                                  VALVE, EXHAUST Genuine Aston Martin - New (to order)
                                                  # 21
                                                  MPN: 06-85034
                                                  INSERT, VALVE SEAT, EXHAUST
                                                  from £2.00
                                                  from £2.00
                                                  INSERT, VALVE SEAT, EXHAUST Genuine Aston Martin - New (to order)
                                                  # -
                                                  -
                                                  BUSHING, VALVE GUIDE
                                                  # 22
                                                  MPN: 4G43-06-10577
                                                  VALVE, INLET
                                                  from £71.02
                                                  from £71.02
                                                  VALVE, INLET Genuine Aston Martin - New (to order)
                                                  # 23
                                                  MPN: 6G43-06-10177
                                                  INSERT, VALVE SEAT, INTAKE
                                                  from £1.28
                                                  from £1.28
                                                  INSERT, VALVE SEAT, INTAKE Genuine Aston Martin - New (to order)
