aston martin rapide (2010) rear suspension assembly parts diagram

040200-C1 - Rear Suspension Assembly

Aston Martin Rapide (2010) Rear Suspension Assembly Parts Diagram

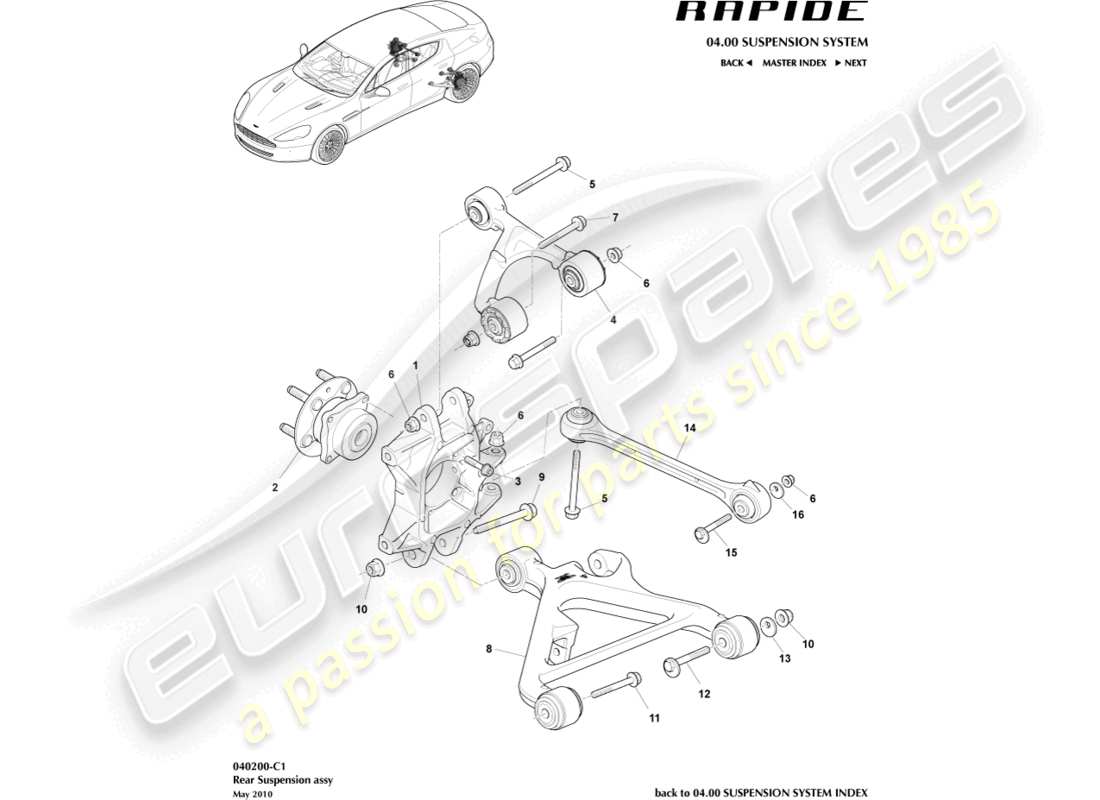

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: AD43-5A970-AB
                              KNUCKLE REAR, RH
                              from £1,071.07
                              from £1,071.07
                              KNUCKLE REAR, RH Genuine Aston Martin - New (to order)
                              # 1
                              MPN: AD43-5A971-AB
                              KNUCKLE REAR, LH
                              from £1,071.07
                              from £1,071.07
                              KNUCKLE REAR, LH Genuine Aston Martin - New (to order)
                              # 2
                              MPN: AD43-2B663-AA
                              HUB & BEARING ASSEMBLY
                              from £516.55
                              from £516.55
                              HB & BRG ASSEMBLY FRONT BRK Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 4G43-0783-AA-PK
                              SCREW WITH WASHER
                              from £15.43
                              from £15.43
                              BOLT M10X55 (5) Genuine Aston Martin - New (to order)
                              # 4
                              MPN: AD43-5K742-AA
                              ARM ASSEMBLY, UPPER, REAR SUSPENSION, RH
                              from £487.15
                              from £487.15
                              ARM ASSEMBLY, UPPER, REAR SUSPENSION, RH Genuine Aston Martin - New In stock
                              # 4
                              MPN: AD43-5K743-AA
                              ARM ASSEMBLY, UPPER, REAR SUSPENSION, LH
                              from £487.15
                              from £487.15
                              ARM ASSEMBLY, UPPER, REAR SUSPENSION, LH Genuine Aston Martin - New (to order)
                              # 4
                              MPN: DD43-5K743-AB
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION, UPPER
                              Rapide S, Up To 15MY
                              from £263.30
                              from £263.30
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION, UPPER Genuine Aston Martin - New (to order)
                              # 4
                              MPN: FD43-5K743-AA
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION, UPPER
                              Rapide S, From 15MY
                              from £354.31
                              from £354.31
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION, UPPER Genuine Aston Martin - New (to order)
                              # 5
                              MPN: AD33-487029-A
                              BOLT, M12X110
                              BOLT, M12X110 Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 703565
                              NUT, FLG, M12
                              from £0.74
                              from £0.74
                              This part replaces part number 699876
                              NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 703180
                              BOLT, FLG, M12X87
                              BOLT, M12 X 90 Genuine Aston Martin - New (to order)
                              # 8
                              MPN: AD43-5B530-AA
                              ARM ASSEMBLY, LOWER, REAR SUSPENSION, RH
                              from £576.83
                              from £576.83
                              ARM ASSEMBLY, LOWER, REAR SUSPENSION, RH Genuine Aston Martin - New (to order)
                              # 8
                              MPN: DD43-5B530-AA
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION LOWER, RH
                              Rapide S
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION LOWER, RH Genuine Aston Martin - New (to order)
                              # 8
                              MPN: AD43-5B531-AA
                              ARM ASSEMBLY, LOWER, REAR SUSPENSION, LH
                              from £576.83
                              from £576.83
                              ARM ASSEMBLY, LOWER, REAR SUSPENSION, LH Genuine Aston Martin - New (to order)
                              # 8
                              MPN: DD43-5B531-AA
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION LOWER, LH
                              Rapide S
                              ARM & BUSH ASSEMBLY, REAR SUSPENSION LOWER, LH Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 703133
                              BOLT, M14X110MM HEX FLG HD
                              from £11.99
                              from £11.99
                              BOLT M14X110 HEX FLN Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 701337-PK
                              NUT, M14, NYLOC
                              from £10.66
                              from £10.66
                              NUT, M14, NYLOC Genuine Aston Martin - New (to order)
                              # 11
                              MPN: AD43-487029-AA
                              BOLT, M14X100
                              from £4.78
                              from £4.78
                              BOLT, M14X100 Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 4G43-3B236-CB
                              BOLT, M14 ECCENTRIC
                              from £16.53
                              from £16.53
                              CAM BOLT M14 Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 4G43-3B237-CA
                              WASHER, M14 ECCENTRIC
                              from £6.54
                              from £6.54
                              CAM WASHER - FRONT LCA Genuine Aston Martin - New In stock
                              # 14
                              MPN: BG43-5B551-AA
                              ARM ASSEMBLY, TOE CONTROL, REAR
                              from £175.42
                              from £175.42
                              LINK-RR SUSP Genuine Aston Martin - New (to order)
                              # 15
                              MPN: AD43-5K978-AA
                              BOLT, M12X90 ECCENTRIC
                              from £18.98
                              from £18.98
                              BOLT, M12X90 ECCENTRIC Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 4G43-3B237-BB
                              WASHER, M12 ECCENTRIC
                              from £6.75
                              from £6.75
                              WASHER M12 ECCENTRIC Genuine Aston Martin - New (to order)
