aston martin rapide (2011) rear wheel arches parts diagram

010107-B1 - Rear Wheel Arches

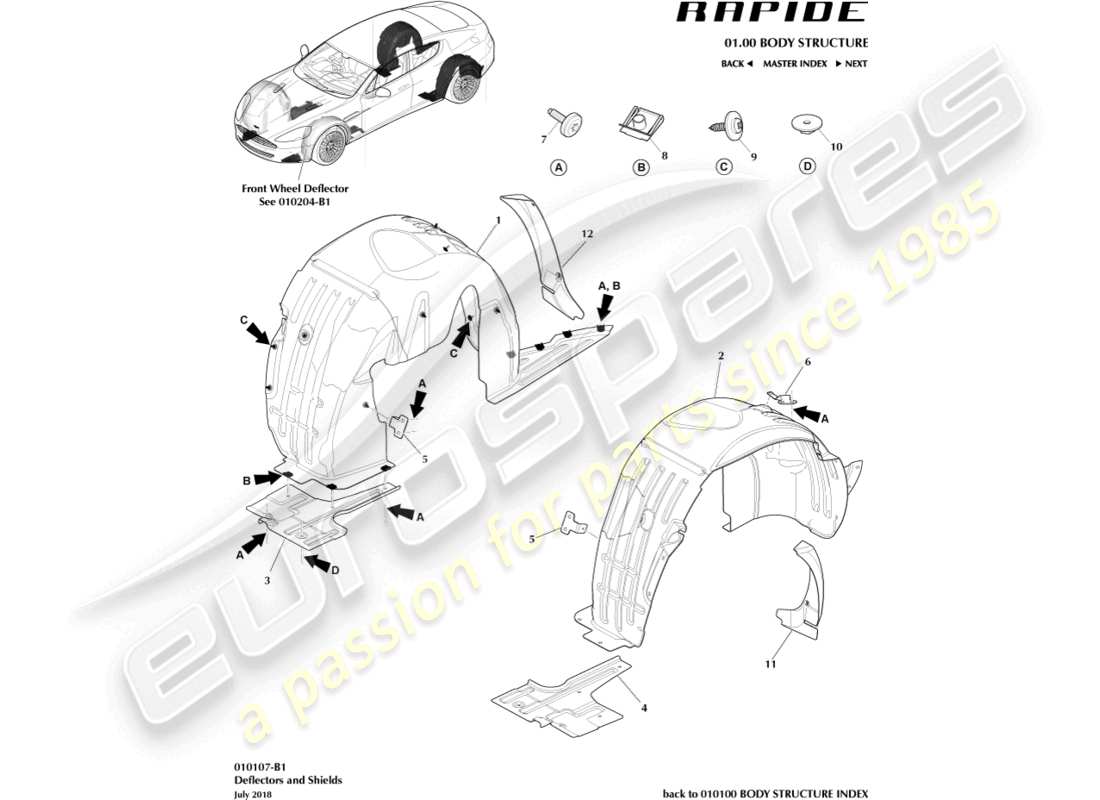

Aston Martin Rapide (2011) Rear Wheel Arches Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: AD43-54279D22-AD
              WHEELARCH LINER, REAR, RH
              from £277.14
              from £277.14
              WHEELARCH LINER, REAR, RH Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-54279D23-AD
              WHEELARCH LINER, REAR, LH
              from £277.14
              from £277.14
              WHEELARCH LINER, REAR, LH Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-54279D44-AA
              PANEL, INFILL LOWER, RH
              Less 30mm Gurney Flap Around Tyre
              from £60.95
              from £60.95
              PANEL, INFILL LOWER, RH Genuine Aston Martin - New (to order)
              # 3
              MPN: DD43-54279D44-AA
              PANEL, INFILL LOWER, RH
              With 30mm Gurney Flap Around Tyre
              from £60.95
              from £60.95
              PANEL, INFILL LOWER, RH Genuine Aston Martin - New (to order)
              # 4
              MPN: AD43-54279D45-AA
              PANEL, INFILL LOWER, LH
              Less 30mm Gurney Flap Around Tyre
              from £60.95
              from £60.95
              PANEL, INFILL LOWER, LH Genuine Aston Martin - New (to order)
              # 4
              MPN: DD43-54279D45-AA
              PANEL, INFILL LOWER, LH
              With 30mm Gurney Flap Around Tyre
              from £60.95
              from £60.95
              PANEL, INFILL LOWER, LH Genuine Aston Martin - New (to order)
              # 5
              MPN: AD43-16586-AA
              BRACKET, LINER FIXING
              from £9.99
              from £9.99
              BRACKET, LINER FIXING Genuine Aston Martin - New (to order)
              # 6
              MPN: AD43-16586-CA
              BRACKET, LINER FIXING, UPPER
              from £10.96
              from £10.96
              BRACKET, LINER FIXING, UPPER Genuine Aston Martin - New (to order)
              # 7
              MPN: 702514
              SCREW, M6X14
              Rapide S, Qty 28
              from £0.56
              from £0.56
              SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
              FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
              # 8
              MPN: 7G43-10609E-AA-PK
              NUT, M6 U TYPE
              Pack of 10
              from £5.08
              from £5.08
              CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
              FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
              # 10
              MPN: 704327
              NUT AND WASHER
              from £3.09
              from £3.09
              NUT & WASHER M6 HEX Genuine Aston Martin - New (to order)
              # 11
              MPN: KD43-17D751-AA0
              WHEELARCH INFILL, LH
              19MY, AMR
              WHEELARCH INFILL, LH Genuine Aston Martin - New (to order)
              # 12
              MPN: KD43-17D750-AA
              WHEELARCH INFILL, RH
              19MY, AMR
              WHEELARCH INFILL, RH Genuine Aston Martin - New (to order)
