aston martin rapide (2011) bonnet and hinges, s parts diagram

010205-B2 - Bonnet and Hinges, S

Aston Martin Rapide (2011) Bonnet and Hinges, S Parts Diagram

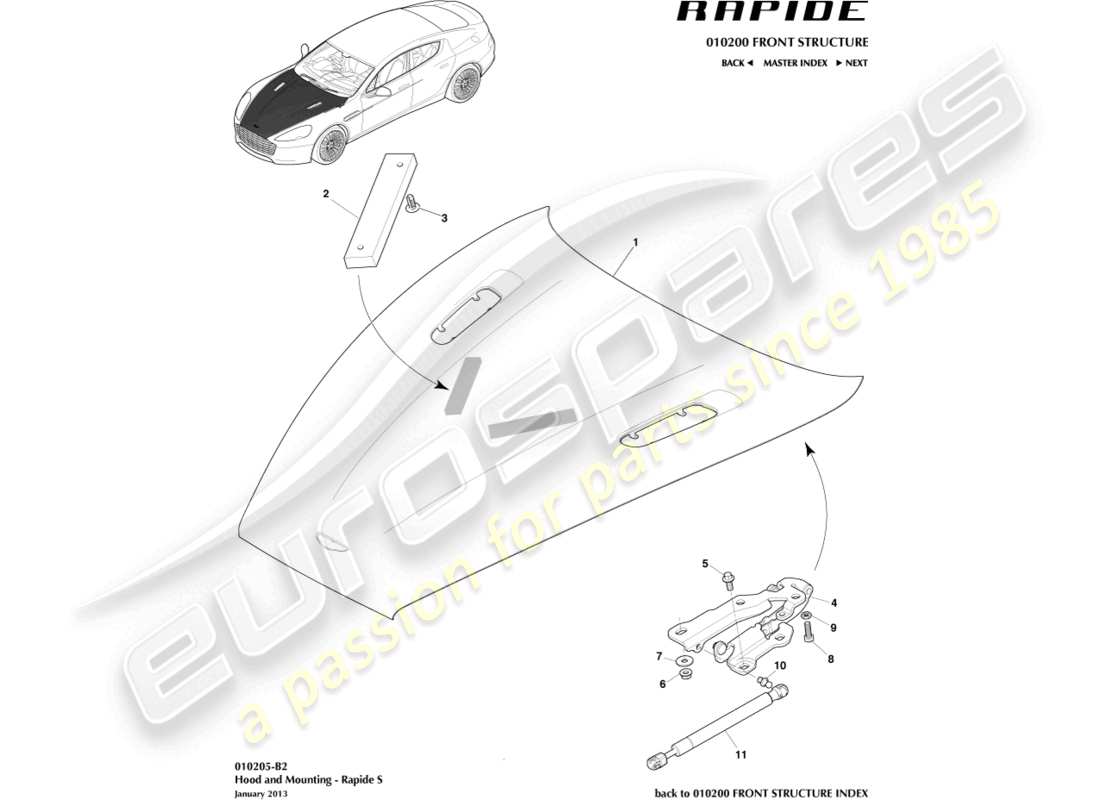

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: DG43-16612-AG
                        HOOD ASSEMBLY
                        from £3,560.68
                        from £3,560.68
                        HOOD ASSEMBLY Genuine Aston Martin - New (to order)
                        # 2
                        MPN: DG43-16A672-AC
                        ENERGY ABSORBER, HOOD UPPER
                        from £18.54
                        from £18.54
                        ENERGY ABSORBER, HOOD UPPER Genuine Aston Martin - New (to order)
                        # 3
                        MPN: 701432
                        PIN, PUSH IN
                        from £0.47
                        from £0.47
                        PIN 5.7X15.7 PUSH IN Genuine Aston Martin - New (to order)
                        # 4
                        MPN: DG43-16801-AA
                        HINGE ASSEMBLY, HOOD, LH
                        from £91.12
                        from £91.12
                        HOOD HINGE, ASSEMBLY, LH Genuine Aston Martin - New (to order)
                        # 4
                        MPN: DG43-16800-AA
                        HINGE ASSEMBLY, HOOD, RH
                        from £91.12
                        from £91.12
                        HOOD HINGE, ASSEMBLY, RH Genuine Aston Martin - New (to order)
                        # 5
                        MPN: 703121
                        SCREW, M8 X 20, HEX FLANGE HEAD
                        from £0.47
                        from £0.47
                        SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                        # 6
                        MPN: 703161
                        NUT, M8, HEX FLANGE HEAD
                        from £0.54
                        from £0.54
                        NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
                        # 7
                        MPN: AG43-32692-AA
                        WASHER, M8, LARGE OD
                        from £0.67
                        from £0.67
                        V2WASHER LARGE OD M8 Genuine Aston Martin - New (to order)
                        # 8
                        MPN: DG43-16D640-AA
                        SCREW, M8 X 25
                        from £23.22
                        from £23.22
                        SCREW, M8X25 Genuine Aston Martin - New (to order)
                        # 9
                        MPN: DG43-N801117-AA
                        LOCKNUT, M8, LEFT HAND THREAD
                        from £0.47
                        from £0.47
                        LOCKNUT, M8, LEFT HAND THREAD Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 1R12-640101-AA
                        BALL STUD
                        from £3.28
                        from £3.28
                        BALL STUD Genuine Aston Martin - New (to order)
                        # 11
                        MPN: DG43-16C826-AC
                        GAS SPRING ASSEMBLY
                        from £20.86
                        from £20.86
                        GAS SPRING ASSEMBLY Genuine Aston Martin - New In stock
