aston martin rapide (2011) centre stack trim panel, s parts diagram

011201-B12 - Centre Stack Trim Panel, S

Aston Martin Rapide (2011) Centre Stack Trim Panel, S Parts Diagram

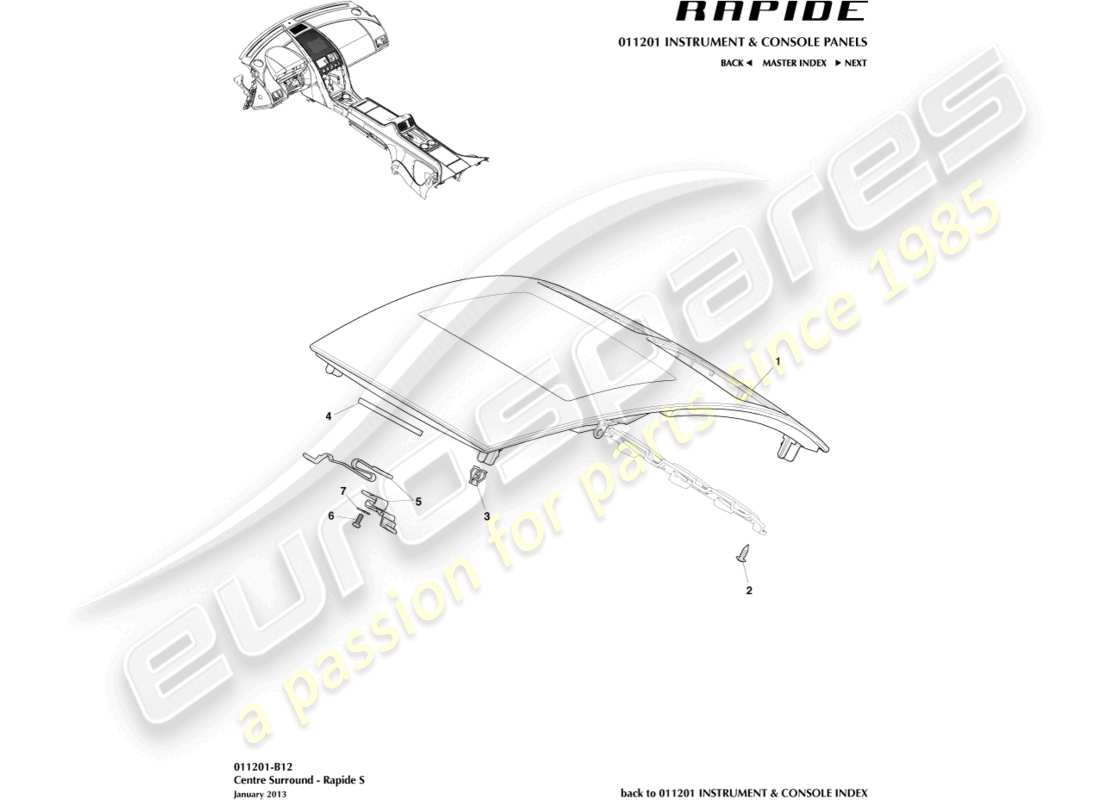

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: CG43-045J10-AE
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Walnut
            from £832.74
            from £832.74
            NAVIGATION SURROUND ASSEMBLY, WALNUT Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-BE
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Mahogany
            from £1,140.93
            from £1,140.93
            NAVIGATION SURROUND ASSEMBLY, MAHOGANY Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-CE
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Bamboo
            from £832.74
            from £832.74
            NAVIGATION SURROUND ASSEMBLY, INCLUDING DOOR Genuine Aston Martin - New (to order)
            # 1
            MPN: BD33-045J10-DC
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Black Carbon Fibre
            from £971.93
            from £971.93
            VNR NAV AUTO/BLK CF Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-NE
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Piano black
            from £722.04
            from £722.04
            VNR NAV AUTO/BLACK Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-SE
            NAVIGATION SURROUND ASSY, INCLUDING DOOR
            Tamo ash
            from £832.74
            from £832.74
            NAVIGATION SURROUND ASSEMBLY, TAMO ASH Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-GE
            SURROUND ASSY, NON NAVIGATION
            Walnut
            SURROUND ASSEMBLY, NON NAVIGATION Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-HE
            SURROUND ASSY, NON NAVIGATION
            Mahogany
            from £929.71
            from £929.71
            SURROUND ASSEMBLY, NON NAVIGATION Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-JE
            SURROUND ASSY, NON NAVIGATION
            Bamboo
            from £468.35
            from £468.35
            SURROUND ASSEMBLY, NON NAVIGATION Genuine Aston Martin - New (to order)
            # 1
            MPN: BD33-045J10-FC
            SURROUND ASSY, NON NAVIGATION
            Black Carbon Fibre
            from £1,893.20
            from £1,893.20
            BZL ASSEMBLY I/PNL CONTR Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-RE
            SURROUND ASSY, NON NAVIGATION
            Piano black
            from £832.74
            from £832.74
            BZL ASSEMBLY I/PNL CONTR Genuine Aston Martin - New (to order)
            # 1
            MPN: CG43-045J10-VE
            SURROUND ASSY, NON NAVIGATION
            Tamo ash
            from £832.74
            from £832.74
            SURROUND ASSEMBLY, NON NAVIGATION Genuine Aston Martin - New (to order)
            # 2
            MPN: 703178
            SCREW, M4 X 8
            from £0.47
            from £0.47
            M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
            # 3
            MPN: 702520-PK
            CLIP, 8.5 X 16 X 1.7
            Pack of 20
            from £2.42
            from £2.42
            CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
            FRONT BUMPER CLIP (SMALL) Genuine Ferrari Part - New (to order)
            # 4
            MPN: CG43-F46970-AA
            FOAM STRIP, 90MM X 5MM X 3MM
            FOAM STRIP, 90MM X 5MM X 3MM Genuine Aston Martin - New (to order)
            # 5
            MPN: CG43-204A34-AB
            TETHER STRAP, CONSOLE
            from £2.48
            from £2.48
            CLIP ASSEMBLY PANEL TR TEHR Genuine Aston Martin - New (to order)
            # 6
            MPN: W504684-S424
            SCREW, M4 X 12, PAN HEAD
            M4X12 PAD HD FLNG LO Genuine Aston Martin - New (to order)
            # 7
            MPN: 9D33-46662-AA
            WASHER, 14MM
            from £0.47
            from £0.47
            14 MM WASHER Genuine Aston Martin - New (to order)
