aston martin rapide (2011) rear console, amr parts diagram

011202-10 - Rear Console, AMR

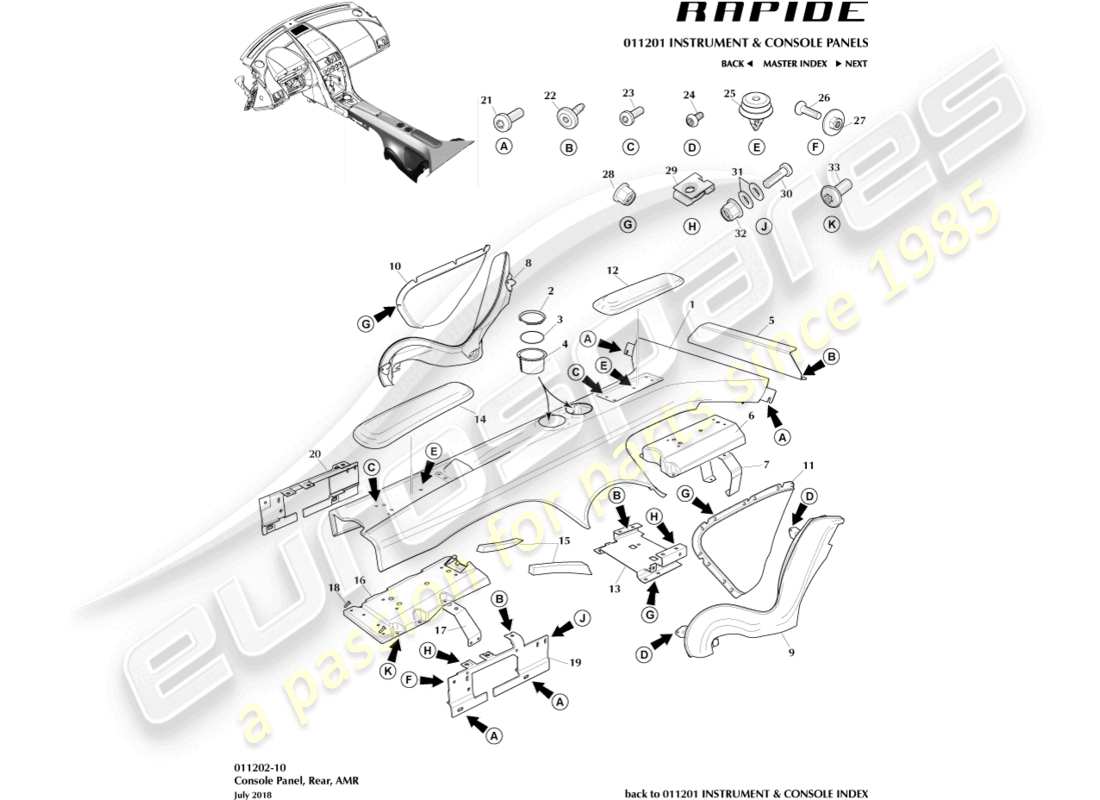

Aston Martin Rapide (2011) Rear Console, AMR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: KD43-67446-AD
                                                              PANEL ASSEMBLY, REAR CONSOLE
                                                              from £5,025.56
                                                              from £5,025.56
                                                              PANEL ASSEMBLY, REAR CONSOLE Genuine Aston Martin - New (to order)
                                                              # 2
                                                              MPN: KD43-29745-AA
                                                              BEZEL, CUP HOLDER
                                                              from £123.31
                                                              from £123.31
                                                              BEZEL, CUP HOLDER Genuine Aston Martin - New (to order)
                                                              # 3
                                                              MPN: AD43-040K60-AA
                                                              CUP HOLDER INSERT BASE
                                                              from £23.72
                                                              from £23.72
                                                              CUP HOLDER INSERT BASE Genuine Aston Martin - New (to order)
                                                              # 4
                                                              MPN: KD43-045N50-AA
                                                              INSERT, CUP HOLDER
                                                              INSERT, CUP HOLDER Genuine Aston Martin - New (to order)
                                                              # 5
                                                              MPN: KD43-V513K01-AA
                                                              SUPPORT, CONSOLE REAR
                                                              SUPPORT, CONSOLE REAR Genuine Aston Martin - New (to order)
                                                              # 6
                                                              MPN: KD43-045B30-AB
                                                              REINFORCEMENT PANEL, REAR
                                                              REINFORCEMENT PANEL, REAR Genuine Aston Martin - New (to order)
                                                              # 7
                                                              MPN: KD43-044D58-AA
                                                              REINFORCEMENT BRACKET, REAR
                                                              REINFORCEMENT BRACKET, REAR Genuine Aston Martin - New (to order)
                                                              # 8
                                                              MPN: KD43-047K64-ABW
                                                              CONSOLE LOWER SIDE ASSEMBLY, RH
                                                              CONSOLE LOWER SIDE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                              # 9
                                                              MPN: KD43-047K63-ABW
                                                              CONSOLE LOWER SIDE ASSEMBLY, LH
                                                              CONSOLE LOWER SIDE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: KD43-045B58-AAW
                                                              MOULDING, TUNNEL PANEL RH
                                                              ALCANTARA
                                                              MOULDING, TUNNEL PANEL RH Genuine Aston Martin - New (to order)
                                                              # 10
                                                              MPN: KD43-045B58-BAW
                                                              MOULDING, TUNNEL PANEL RH
                                                              leather
                                                              MOULDING, TUNNEL PANEL RH Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: KD43-045B59-AWA
                                                              MOULDING, TUNNEL PANEL LH
                                                              ALCANTARA
                                                              MOULDING, TUNNEL PANEL LH Genuine Aston Martin - New (to order)
                                                              # 11
                                                              MPN: KD43-045B59-BAW
                                                              MOULDING, TUNNEL PANEL LH
                                                              leather
                                                              MOULDING, TUNNEL PANEL LH Genuine Aston Martin - New (to order)
                                                              # 12
                                                              MPN: KD43-67442-ABW
                                                              ARMREST ASSEMBLY, REAR CONSOLE
                                                              from £1,182.35
                                                              from £1,182.35
                                                              ARMREST ASSEMBLY, REAR CONSOLE Genuine Aston Martin - New (to order)
                                                              # 13
                                                              MPN: AD43-044G67-AD
                                                              SUPPORT BRACKET, CONSOLE UNDERSIDE CENTRE
                                                              SUPPORT BRACKET, CONSOLE UNDERSIDE CENTRE Genuine Aston Martin - New (to order)
                                                              # 14
                                                              MPN: KD43-C045C76-ABW
                                                              ARMREST ASSEMBLY, FRONT
                                                              ARMREST ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
                                                              # 15
                                                              MPN: CG43-403D62-AA
                                                              SEAL
                                                              from £2.75
                                                              from £2.75
                                                              SE UPPER PANEL VEN AIR Genuine Aston Martin - New (to order)
                                                              # 16
                                                              MPN: KD43-042B60-AB
                                                              REINFORCEMENT PANEL, FRONT
                                                              REINFORCEMENT PANEL, FRONT Genuine Aston Martin - New (to order)
                                                              # 17
                                                              MPN: KD43-043B92-AA
                                                              REINFORCEMENT BRACKET, FRONT
                                                              REINFORCEMENT BRACKET, FRONT Genuine Aston Martin - New (to order)
                                                              # 18
                                                              MPN: 4G43-103081-BA
                                                              SCREW, CSK M4X16 SS BLACK
                                                              from £0.47
                                                              from £0.47
                                                              SCREW COUNTERSUNK M4 X 16 Genuine Aston Martin - New (to order)
                                                              # 19
                                                              MPN: KD43-046A57-AA
                                                              BRACKET ASSEMBLY, FRONT LH
                                                              from £187.36
                                                              from £187.36
                                                              BRACKET ASSEMBLY, FRONT LH Genuine Aston Martin - New (to order)
                                                              # 20
                                                              MPN: KD43-046A56-AA
                                                              BRACKET ASSEMBLY, FRONT RH
                                                              from £187.36
                                                              from £187.36
                                                              BRACKET ASSEMBLY, FRONT RH Genuine Aston Martin - New (to order)
                                                              # 21
                                                              MPN: 702637
                                                              SCREW, M6X20 SKT HD BUTTON
                                                              from £0.47
                                                              from £0.47
                                                              SCREW M6X20 SOCKET HD Genuine Aston Martin - New (to order)
                                                              # 22
                                                              MPN: 6G33-FA0115-AB-PK
                                                              SCREW, M6X20 PAN HD TORX
                                                              Pack of 20
                                                              from £12.00
                                                              from £12.00
                                                              This part replaces part number 6G33-FA0115-AB
                                                              SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                                              # 23
                                                              MPN: 700242
                                                              SCREW, M5X16 PAN HD BLACK
                                                              from £0.52
                                                              from £0.52
                                                              SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
                                                              # 24
                                                              MPN: 4G43-0410-BB
                                                              SCREW, SELF TAP
                                                              from £3.88
                                                              from £3.88
                                                              SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                                              # 25
                                                              MPN: 702587
                                                              PLASTIC TRIM PIN, 8.0MM X 1.5
                                                              from £0.47
                                                              from £0.47
                                                              PLAS TRIM PIN 8.0MM Genuine Aston Martin - New (to order)
                                                              # 26
                                                              MPN: 700242
                                                              SCREW, M5X16 PAN HD BLACK
                                                              from £0.52
                                                              from £0.52
                                                              SCREW M5 X 16 PAN Genuine Aston Martin - New (to order)
                                                              # 27
                                                              MPN: 707262
                                                              NUT AND WASHER M5
                                                              from £7.64
                                                              from £7.64
                                                              NUT AND WASHER M5 Genuine Aston Martin - New (to order)
                                                              # 28
                                                              MPN: 703165
                                                              NUT, M5 HEX FLG
                                                              from £0.47
                                                              from £0.47
                                                              NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
                                                              # 29
                                                              MPN: 702945
                                                              J NUT, M6
                                                              from £1.05
                                                              from £1.05
                                                              M6 J NUT Genuine Aston Martin - New (to order)
                                                              # 30
                                                              MPN: 6G33-SS106209-AB
                                                              BOLT, M6X20 SKT HD
                                                              from £0.47
                                                              from £0.47
                                                              BOLT, M6X20, SOCKET HD Genuine Aston Martin - New (to order)
                                                              # 31
                                                              MPN: 699733
                                                              WASHER, M6
                                                              from £0.47
                                                              from £0.47
                                                              WASHER M6 ST STL Genuine Aston Martin - New (to order)
                                                              # 32
                                                              MPN: 703164
                                                              LOCKNUT, M6 FLG
                                                              from £0.47
                                                              from £0.47
                                                              M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                                                              # 33
                                                              MPN: 703746
                                                              SCREW, M6X16 PAN FLG HD TORX
                                                              from £0.47
                                                              from £0.47
                                                              SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
