aston martin rapide (2011) engine cooling, line fit parts diagram

030300-S1 - Engine Cooling, Line Fit

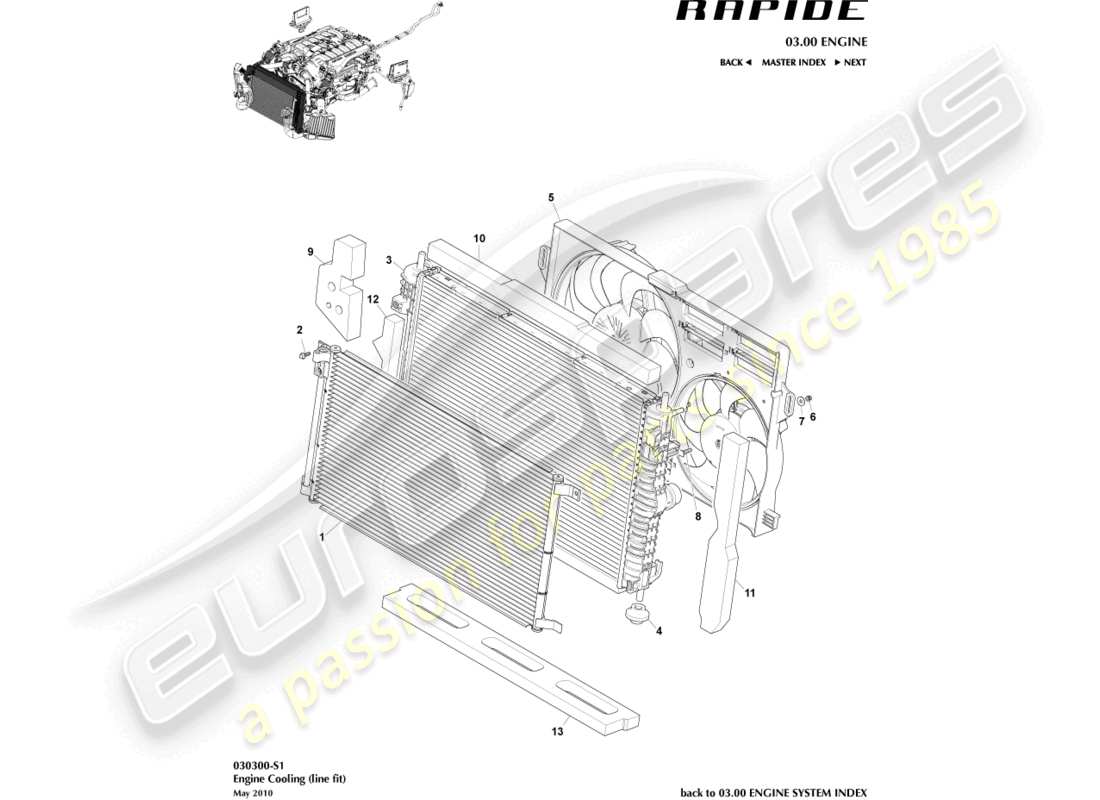

Aston Martin Rapide (2011) Engine Cooling, Line Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 9G43-19710-AA
                            CONDENSER
                            from £404.21
                            from £404.21
                            CONDENSER ASSEMBLY Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 703750
                            BOLT, FLG, M6 X 20
                            from £1.70
                            from £1.70
                            SCREW-M6X20 HEX FLD Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 8D33-8005-AC
                            RADIATOR ASSY
                            from £866.35
                            from £866.35
                            This part replaces part number 8D33-8005-AB
                            Radiator assembly Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 32-85101-PK
                            BUSH, MOUNTING
                            from £3.17
                            from £3.17
                            BUSH, MOUNTING Genuine Aston Martin - New (to order)
                            BUSH, MOUNTING Genuine Aston Martin - Used In stock
                            # 5
                            MPN: 8D33-8C607-AC
                            FAN AND MOTOR ASSY, RADIATOR
                            FAN AND MOTOR ASSEMBLY, RADIATOR Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 703168
                            NUT, FLG, M6
                            Supersession
                            Supersession
                            Genuine Aston Martin (no longer available to order)
                            # 7
                            MPN: 699614
                            WASHER, PLAIN
                            from £10.52
                            from £10.52
                            WASHER 22X6.8X2 ST Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 703728
                            BOLT, M6 X 19 SQUARE HEAD
                            from £7.41
                            from £7.41
                            SCREW-M6X19 SQUAREHD Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 4G43-C8585-BA
                            FOAM PAD
                            from £3.88
                            from £3.88
                            FOAM PAD Genuine Aston Martin - New (to order)
                            # 10
                            MPN: 8D33-8N301-AA
                            SEAL, RADIATOR AIR UPPER
                            from £12.13
                            from £12.13
                            SEAL, RADIATOR UPPER Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 8D33-F8B171-AA
                            SEAL, RADIATOR LH
                            from £14.07
                            from £14.07
                            SEAL, RADIATOR LH Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 8D33-F8B170-AA
                            SEAL, RADIATOR RH
                            from £14.07
                            from £14.07
                            SEAL, RADIATOR RH Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 8D33-8C477-AA
                            SEAL, RADIATOR AIR LOWER
                            from £13.40
                            from £13.40
                            FOAM SEAL - LOWER Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 4G43-37-10962
                            FUSE, 80A, COOLING FAN MOTOR
                            from £11.10
                            from £11.10
                            FUSE 80 AMP-CLG FAN Genuine Aston Martin - New (to order)
                            # 13
                            MPN: 1R12-322666-AA-PK
                            ANTIFREEZE, 1LTR (X12)
                            from £130.75
                            from £130.75
                            ANTIFREEZE, 1LTR (X12) Genuine Aston Martin - New (to order)
