aston martin rapide (2011) evaporative emissions parts diagram

031300-2 - Evaporative Emissions

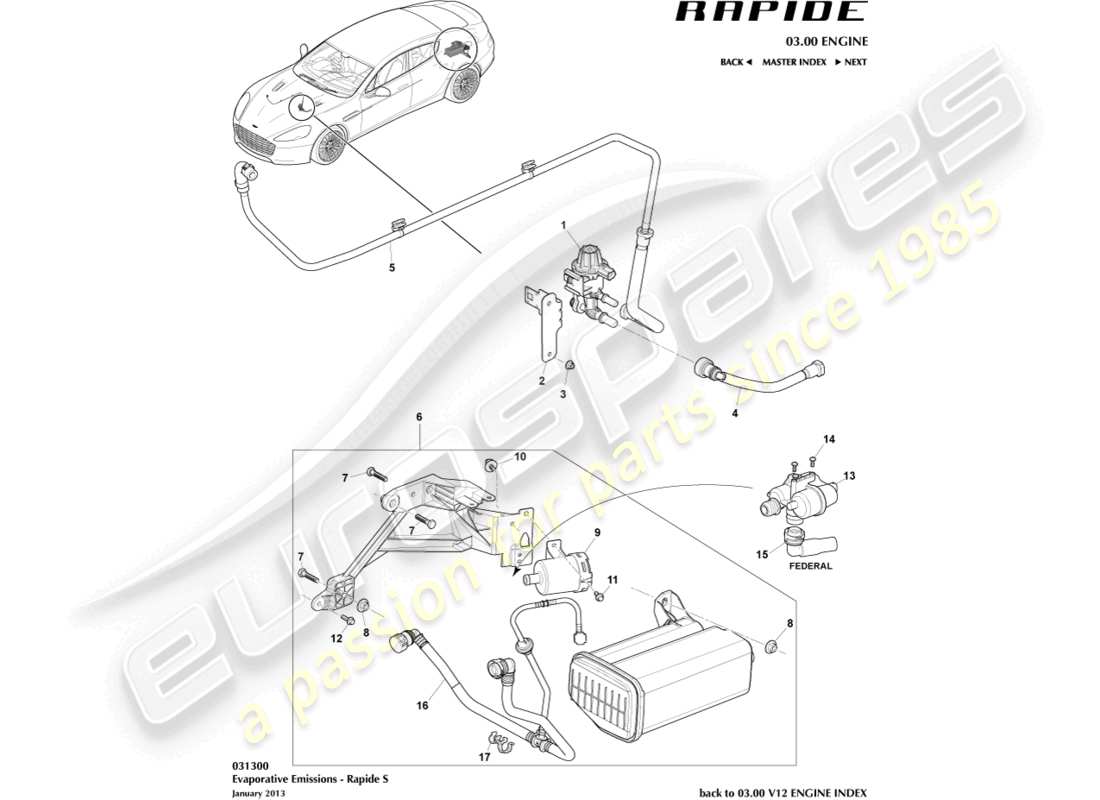

Aston Martin Rapide (2011) Evaporative Emissions Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 4L24-9G641-BB
                            VALVE, FUEL/ VAPOUR PURGE ELECTRONIC
                            from £24.27
                            from £24.27
                            Genuine Aston Martin (no longer available to order)
                            VALVE ASSEMBLY FUEL VAPOUR VENT Genuine Aston Martin - Used In stock
                            # 2
                            MPN: 4G43-9G743-AA
                            BRACKET, ELECTRONIC FUEL VAPOUR MANAGEMENT
                            from £2.92
                            from £2.92
                            BRACKET ELE FU VPR MOUNTING Genuine Aston Martin - New (to order)
                            BRACKET ELE FU VPR MOUNTING Genuine Aston Martin - Used In stock
                            # 3
                            MPN: 702295
                            NUT, M5, HEX FLANGE HEAD
                            from £0.47
                            from £0.47
                            NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                            # 4
                            MPN: AD23-9B051-AA
                            TUBE, PURGE VALVE INLET
                            from £13.55
                            from £13.55
                            TUBE-FU/VPR VLV INLET Genuine Aston Martin - New (to order)
                            TUBE-FU/VPR VLV INLET Genuine Aston Martin - Used In stock
                            # 5
                            MPN: CD33-9D289-AD
                            TUBE ASSEMBLY, EVMV TO MANIFOLD
                            from £105.75
                            from £105.75
                            TUBE ASSEMBLY, EVMV TO MANIFOLD Genuine Aston Martin - New (to order)
                            # -
                            -
                            COBRA CLIP 15MM
                            # 6
                            MPN: AD43-9E857-BA
                            CANISTER AND BRACKET ASSEMBLY
                            RoW, Includes Items 7 to 11
                            from £329.55
                            from £329.55
                            CANNISTER AND BRACKET ASSEMBLY - NON FEDERAL Genuine Aston Martin - New (to order)
                            # 6
                            MPN: AD43-9E857-AB
                            CANISTER AND BRACKET ASSEMBLY
                            Federal, Includes Items 7 to 11, 13, 14 and 15
                            from £338.73
                            from £338.73
                            CANNISTER AND BRACKET ASSEMBLY - FEDERAL Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 703161
                            NUT, M8, HEX HEAD
                            from £0.54
                            from £0.54
                            NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 4G43-9B995-AA
                            FILTER, FUEL/ VAPOUR STORAGE CANISTER
                            from £11.57
                            from £11.57
                            FLTR FU/VPR STEERING CNS Genuine Aston Martin - New (to order)
                            FLTR FU/VPR STEERING CNS Genuine Aston Martin - Used In stock
                            # 10
                            MPN: 699711
                            P CLIP, M6
                            from £1.15
                            from £1.15
                            P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 700606
                            SCREW, M6 X 12, HEX FLANGE HEAD
                            from £0.47
                            from £0.47
                            SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                            # 12
                            MPN: 703203
                            SCREW, M6 X 20
                            from £0.47
                            from £0.47
                            SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                            LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                            # 13
                            MPN: 6H52-9C111-BA
                            PUMP, ON BOARD DIAGNOSTIC LEAK CHECK
                            Federal
                            PUMP, DIAGNOSTIC LEAK CHECK Genuine Aston Martin - New (to order)
                            # 15
                            MPN: AD43-9G271-AA
                            HOSE, VENT DMTL FILTER
                            Federal
                            HOSE, VENT DMTL FILTER Genuine Aston Martin - New (to order)
                            # 16
                            MPN: AD43-9A228-AB
                            VAPOUR LINE, CANISTER TO TANK
                            from £125.83
                            from £125.83
                            VAPOUR LINE, CANISTER TO TANK Genuine Aston Martin - New (to order)
                            # 17
                            MPN: 701182
                            CLIP-SWIVEL
                            from £1.16
                            from £1.16
                            CLIP-SWIVEL Genuine Aston Martin - New (to order)
