aston martin rapide (2011) transaxle, s parts diagram

070100-02 - Transaxle, S

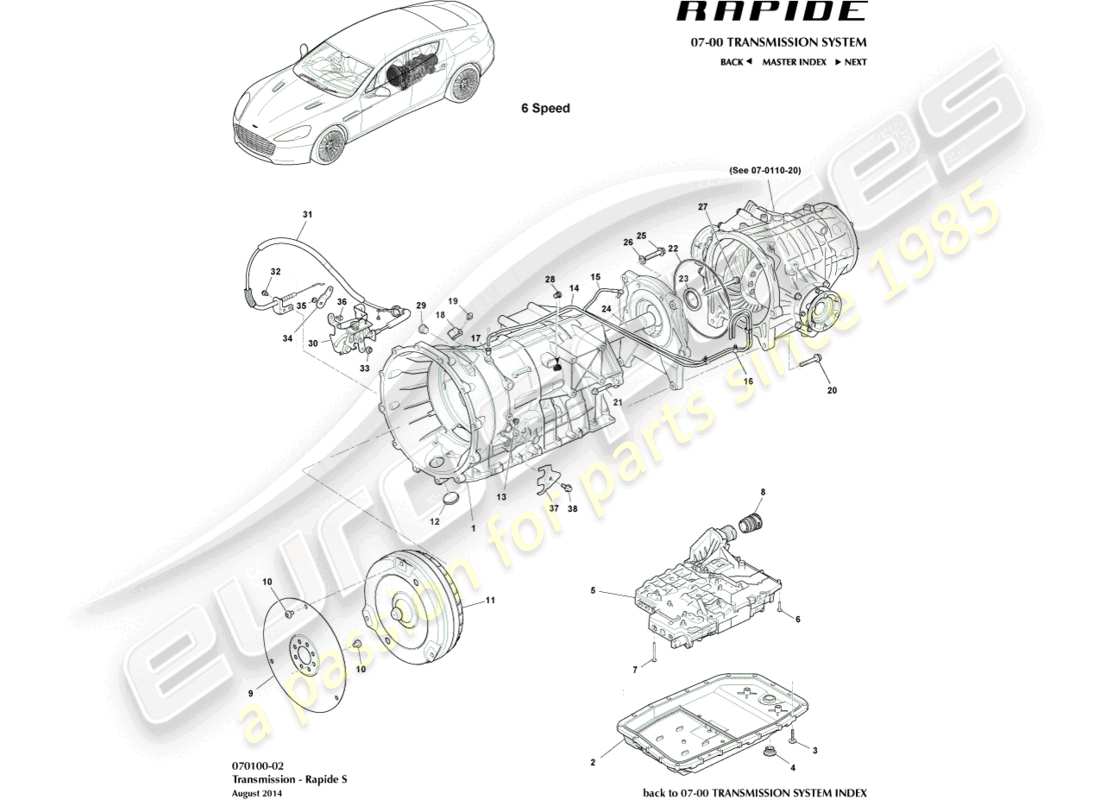

Aston Martin Rapide (2011) Transaxle, S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # -
                                                                              MPN: CD33-70041-AA
                                                                              TRANSMISSION, AUTOMATIC. 6 SPEED
                                                                              From VIN F03166, To 15MY. Includes Item 11, But Not Item 27
                                                                              TRANSMISSION, AUTOMATIC. 6 SPEED Genuine Aston Martin - New (to order)
                                                                              # 1
                                                                              MPN: CD33-42-10010
                                                                              HOUSING, GEARBOX
                                                                              from £1,642.93
                                                                              from £1,642.93
                                                                              HOUSING, GEARBOX Genuine Aston Martin - New (to order)
                                                                              # 2
                                                                              MPN: CD33-42-10011
                                                                              oil sump
                                                                              oil sump Genuine Aston Martin - New (to order)
                                                                              # 3
                                                                              MPN: 4G43-42-10274
                                                                              SCREW, TORX HEAD
                                                                              from £5.66
                                                                              from £5.66
                                                                              SCREW, TORX HEAD Genuine Aston Martin - New (to order)
                                                                              # 4
                                                                              MPN: 4G43-42-10277
                                                                              SCREW PLUG, OIL SUMP
                                                                              from £4.44
                                                                              from £4.44
                                                                              SCREW PLUG, OIL SUMP Genuine Aston Martin - New (to order)
                                                                              # 5
                                                                              MPN: 8G43-14C247-AA
                                                                              TRANSMISSION CONTROL MODULE
                                                                              from £4,098.19
                                                                              from £4,098.19
                                                                              TRANSMISSION CONTROL MODULE Genuine Aston Martin - New (to order)
                                                                              # 6
                                                                              MPN: 4G43-807199-DA
                                                                              SCREW, M6 X 20, TORX HEAD
                                                                              from £0.68
                                                                              from £0.68
                                                                              SCREW, M6X20 TORX Genuine Aston Martin - New (to order)
                                                                              # 7
                                                                              MPN: 4G43-807199-CA
                                                                              SCREW, M6 X 59, TORX HEAD
                                                                              from £0.68
                                                                              from £0.68
                                                                              SCREW, M6X59 TORX Genuine Aston Martin - New (to order)
                                                                              # 8
                                                                              MPN: 4G43-7F183-AA
                                                                              GUIDE SLEEVE, TRANSMISSION CONTROLLER
                                                                              from £9.82
                                                                              from £9.82
                                                                              GUIDE SLEEVE, TRANSMISSION CONTROLLER Genuine Aston Martin - New (to order)
                                                                              # 9
                                                                              MPN: 4G43-6K375-AA
                                                                              FLEX PLATE, REAR
                                                                              from £41.69
                                                                              from £41.69
                                                                              FLEX PLATE, REAR Genuine Aston Martin - New (to order)
                                                                              FLEX PLATE, REAR Genuine Aston Martin - Used In stock
                                                                              # 10
                                                                              MPN: 4G43-HYG10549-AA
                                                                              SCREW, M10 X 13, PAN HEAD TORX
                                                                              from £1.42
                                                                              from £1.42
                                                                              SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                                                                              # 11
                                                                              MPN: CD33-42-10012
                                                                              TORQUE CONVERTER
                                                                              TORQUE CONVERTER Genuine Aston Martin - New (to order)
                                                                              # 12
                                                                              MPN: 4G43-42-10021
                                                                              PLUG, TORQUE CONVERTER ACCESS
                                                                              from £3.90
                                                                              from £3.90
                                                                              PLUG-T/CONV ACCESS Genuine Aston Martin - New (to order)
                                                                              # 13
                                                                              MPN: 4G43-42-10276
                                                                              SCREW PLUG
                                                                              from £2.94
                                                                              from £2.94
                                                                              SCREW PLUG Genuine Aston Martin - New (to order)
                                                                              # 14
                                                                              MPN: AD43-7A245-AA
                                                                              TUBE ASSY, TRANSMISSION BREATHER
                                                                              TUBE ASSEMBLY, TRANSMISSION BREATHER Genuine Aston Martin - New (to order)
                                                                              # 15
                                                                              MPN: AD43-7A245-BA
                                                                              TUBE ASSY, DIFFERENTIAL BREATHER
                                                                              from £12.36
                                                                              from £12.36
                                                                              TUBE ASSEMBLY, DIFFERENTIAL BREATHER Genuine Aston Martin - New (to order)
                                                                              # 16
                                                                              MPN: 701565
                                                                              CLIP
                                                                              from £0.54
                                                                              from £0.54
                                                                              CLIP 4-6 DUX6.5 Genuine Aston Martin - New (to order)
                                                                              # 17
                                                                              MPN: 4G43-7179-AA
                                                                              PLUG, TRANSMISSION BREATHER
                                                                              from £7.23
                                                                              from £7.23
                                                                              PLUG, TRANSMISSION BREATHER Genuine Aston Martin - New (to order)
                                                                              # 18
                                                                              MPN: 4G43-2860-AB
                                                                              P CLIP, DISENGAGE CABLE
                                                                              from £0.52
                                                                              from £0.52
                                                                              P CLIP, DISENGAGE CABLE Genuine Aston Martin - New (to order)
                                                                              # 19
                                                                              MPN: 700606
                                                                              SCREW, M6 X 12, FLANGE HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                              # 20
                                                                              MPN: 703183
                                                                              BOLT, M10 X 45, HEX FLANGE HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              BOLT M10 X 45 HEX Genuine Aston Martin - New (to order)
                                                                              # 21
                                                                              MPN: 703182
                                                                              BOLT, M10 X 65, HEX FLANGE HEAD
                                                                              from £0.72
                                                                              from £0.72
                                                                              BOLT, M10 X 65, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                                              # 22
                                                                              MPN: 4G43-7J271-AB
                                                                              O RING, TRANSMISSION ADAPTER PLATE, REAR
                                                                              from £9.60
                                                                              from £9.60
                                                                              O RG TRANS ADPT PLT Genuine Aston Martin - New (to order)
                                                                              # 23
                                                                              MPN: 4G43-42-10979
                                                                              OIL SEAL, 60 X 44 X 7MM
                                                                              from £47.38
                                                                              from £47.38
                                                                              SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                              # 24
                                                                              MPN: 4G43-42-11251
                                                                              SHAFT, OUTPUT
                                                                              from £453.40
                                                                              from £453.40
                                                                              SHAFT, OUTPUT Genuine Aston Martin - New (to order)
                                                                              # 25
                                                                              MPN: 4G43-42-10977
                                                                              SCREW, M10 X 50
                                                                              SCREW, M10 X 50 Genuine Aston Martin - New (to order)
                                                                              # 26
                                                                              MPN: 4G43-42-10978
                                                                              USIT RING
                                                                              USIT RING Genuine Aston Martin - New (to order)
                                                                              # 27
                                                                              MPN: 4G43-9912553-AA
                                                                              BOLT, M8 X 80, CAP SKT HD
                                                                              from £5.40
                                                                              from £5.40
                                                                              BOLT M8 X 80 CAP SOCKET Genuine Aston Martin - New (to order)
                                                                              # 28
                                                                              MPN: 4G43-42-10278
                                                                              SCREW PLUG
                                                                              from £5.54
                                                                              from £5.54
                                                                              SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                                                                              # 29
                                                                              MPN: CD33-42-10013
                                                                              SCREW PLUG
                                                                              SCREW PLUG Genuine Aston Martin - New (to order)
                                                                              # 30
                                                                              MPN: AD43-7J168-AB
                                                                              BRACKET ASSY, PARK BRAKE RELEASE
                                                                              from £178.23
                                                                              from £178.23
                                                                              BRACKET ASSEMBLY, TRANS PARK Genuine Aston Martin - New (to order)
                                                                              # 31
                                                                              MPN: AD43-7J167-AD
                                                                              CABLE ASSY, PARK BRAKE RELEASE
                                                                              from £63.05
                                                                              from £63.05
                                                                              CABLE ASSEMBLY, PARK BRAKE RELEASE Genuine Aston Martin - New (to order)
                                                                              # 32
                                                                              MPN: 700606
                                                                              SCREW, M6 X 12, FLANGE HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                              # 33
                                                                              MPN: 703749
                                                                              NUT, M6, HEX FLANGE HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 699877
                                                                              NUT-M6 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
                                                                              # 34
                                                                              MPN: 4G43-7A257-AB
                                                                              LEVER ARM, AUTO TRANSMISSION TO DISENGAGE P LOCK
                                                                              from £1.88
                                                                              from £1.88
                                                                              SEL LVR AUTO Genuine Aston Martin - New (to order)
                                                                              # 35
                                                                              MPN: 703158
                                                                              NUT, M8, HEX FLANGE HEAD
                                                                              from £0.79
                                                                              from £0.79
                                                                              NUT, M8, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                                                                              # 36
                                                                              MPN: 703265
                                                                              SCREW, M6 X 16, HEX HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                                              # 37
                                                                              MPN: 9G43-7B147-AA
                                                                              CLAMP, OIL COOLER PIPES
                                                                              from £7.50
                                                                              from £7.50
                                                                              CLAMP, OIL COOLER PIPES Genuine Aston Martin - New (to order)
                                                                              # 38
                                                                              MPN: 703189
                                                                              BOLT, M8 X 16, HEX FLANGE HEAD
                                                                              from £0.47
                                                                              from £0.47
                                                                              BOLT M8X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                              # -
                                                                              -
                                                                              FLUID, AUTO TRANSMISSION, 1LTR
