aston martin rapide (2011) transaxle, 8 spd parts diagram

070100-30 - Transaxle, 8 spd

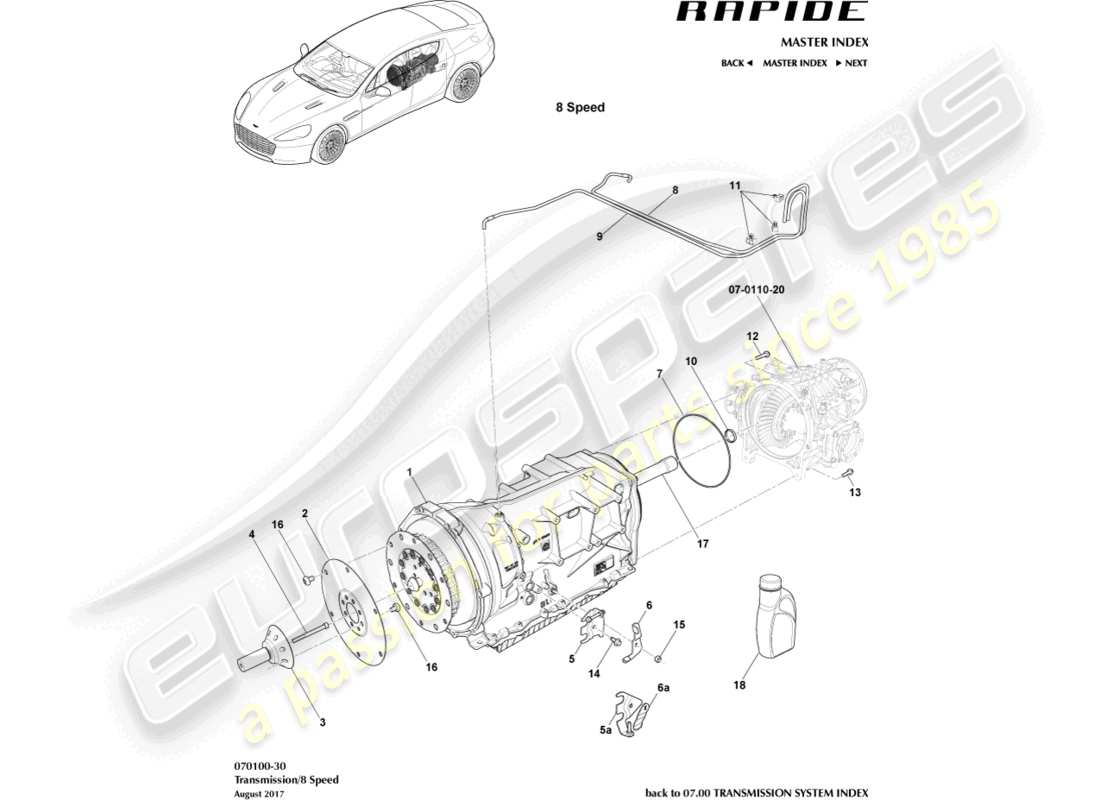

Aston Martin Rapide (2011) Transaxle, 8 spd Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: FD33-70041-AB
                        TRANSMISSION, AUTOMATIC ZF 8HP/70
                        8 speed, From 15MY
                        from £11,783.54
                        from £11,783.54
                        TRANSMISSION, AUTOMATIC ZF 8HP/70 Genuine Aston Martin - New (to order)
                        # 2
                        MPN: FD43-6K375-AA
                        FLEX PLATE, REAR
                        from £64.90
                        from £64.90
                        FLEX PLATE, REAR Genuine Aston Martin - New (to order)
                        # 3
                        MPN: FD33-209611-AA
                        ADAPTOR - FLEX PLATE
                        from £166.87
                        from £166.87
                        ADAPTOR - FLEX PLATE Genuine Aston Martin - New (to order)
                        # 4
                        MPN: 4G43-9912553-AA
                        SCREW, M8X80, HEX SOCKET HEAD
                        from £5.40
                        from £5.40
                        BOLT M8 X 80 CAP SOCKET Genuine Aston Martin - New (to order)
                        # 5
                        MPN: FD33-7B147-AA
                        BRACKET ASSY, HOSE CLAMP AND PARK BRAKE RELEASE
                        15MY to 18MY
                        from £16.21
                        from £16.21
                        BRACKET ASSEMBLY, HOSE CLAMP AND PARK BRAKE RELEASE Genuine Aston Martin - New (to order)
                        # 5a
                        MPN: KY73-7B147-AB
                        BRACKET ASSY, HOSE CLAMP AND PARK BRAKE RELEASE
                        18MY on
                        from £32.26
                        from £32.26
                        BRACKET ASSEMBLY, HOSE CLAMP AND PARK BRAKE RELEASE Genuine Aston Martin - New (to order)
                        # 6
                        MPN: FD33-7A257-AA
                        LEVER ARM, AUTO TRANSMISSION TO DISENGAGE P LOCK
                        15MY to 18MY
                        from £9.27
                        from £9.27
                        LEVER ARM, AUTO TRANSMISSION TO DISENGAGE P LOCK Genuine Aston Martin - New (to order)
                        # 6a
                        MPN: HY53-7A257-BA
                        LEVER ARM, AUTO TRANSMISSION TO DISENGAGE P LOCK
                        18MY on
                        from £8.26
                        from £8.26
                        LEVER ARM, AUTO TRANSMISSION TO DISENGAGE P LOCK Genuine Aston Martin - New (to order)
                        # 7
                        MPN: 4G43-7J271-AB
                        O RING, TRANSMISSION ADAPTER PLATE, REAR
                        from £9.60
                        from £9.60
                        O RG TRANS ADPT PLT Genuine Aston Martin - New (to order)
                        # 8
                        MPN: 4G43-7A245-BA
                        TUBE ASSY, DIFFERENTIAL BREATHER
                        from £6.39
                        from £6.39
                        BREATHER AUTO DIFF Genuine Aston Martin - New (to order)
                        # 9
                        MPN: 4G43-7A245-AA
                        TUBE ASSY, TRANSMISSION BREATHER
                        from £6.39
                        from £6.39
                        TUB ASY-AUTO TRANS Genuine Aston Martin - New (to order)
                        # 10
                        MPN: 4G43-42-10979
                        OIL SEAL, 60 X 44 X 7MM
                        from £47.38
                        from £47.38
                        SEAL, OUTPUT SHAFT (60X44X7MM) Genuine Aston Martin - New (to order)
                        # 11
                        MPN: 701565
                        CLIP, PLASTIC
                        from £0.54
                        from £0.54
                        CLIP 4-6 DUX6.5 Genuine Aston Martin - New (to order)
                        # 12
                        MPN: 703182
                        BOLT, M10 X 65, HEX FLANGE HEAD
                        UPPER
                        from £0.72
                        from £0.72
                        BOLT, M10 X 65, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                        # 13
                        MPN: 703183
                        BOLT, M10 X 45, HEX FLANGE HEAD
                        LOWER
                        from £0.47
                        from £0.47
                        BOLT M10 X 45 HEX Genuine Aston Martin - New (to order)
                        # 14
                        MPN: 703189
                        BOLT, M8 X 16, HEX FLANGE HEAD
                        Cooler Hose Clamp to Gearbox
                        from £0.47
                        from £0.47
                        BOLT M8X16 HEX FLANGE Genuine Aston Martin - New (to order)
                        # 15
                        MPN: 703158
                        NUT, M8, HEX FLANGE HEAD
                        from £0.79
                        from £0.79
                        NUT, M8, HEX FLANGE HEAD Genuine Aston Martin - New (to order)
                        # 16
                        MPN: 4G43-HYG10549-AA
                        SCREW, M10X13, TORX PAN HEAD
                        from £1.42
                        from £1.42
                        SCREW-M10X13 PN HD Genuine Aston Martin - New (to order)
                        # 17
                        MPN: 4G43-42-11251
                        SHAFT, OUTPUT
                        from £453.40
                        from £453.40
                        SHAFT, OUTPUT Genuine Aston Martin - New (to order)
                        # 18
                        MPN: FD33-19A509-AA
                        FLUID, AUTO TRANSMISSION, 1LTR
                        From 15MY Only
                        from £73.32
                        from £73.32
                        FLUID, AUTO TRANSMISSION, 1LTR Genuine Aston Martin - New (to order)
